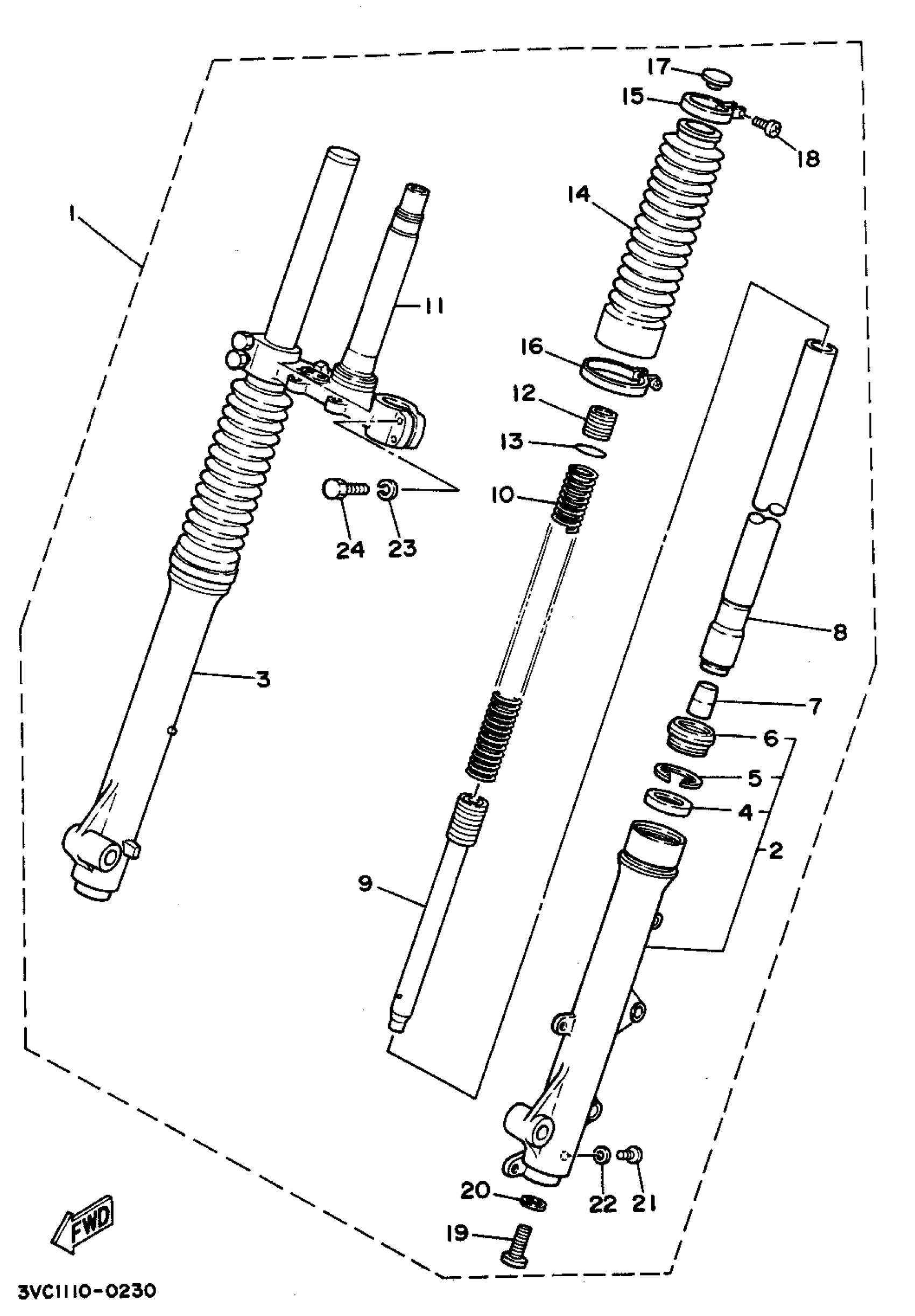

Yamaha RT180A (RT180) 1990 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

[3V-CF310-00-00

Unavailable

2

OUTTER TUBE LH

2TW-F3102-00-00

Unavailable

3

. OUTER TUBE COMP (RH)

2TW-F3107-00-00

Unavailable

4

.. OIL SEAL

58W-F3145-00-00

Unavailable

5

.. OIL SEAL, STOPPER

93420-48001-09

Unavailable

6

.. SEAL, DUST

5L9-F3144-10-00

Unavailable

7

. SPINDLE, TAPER

5L9-F3173-10-00

Unavailable

8

. INNER TUBE COMP 1

016-F3110-00-00

Unavailable

9

. CYLINDER COMP, FRONT FORK (016-F3170-00-00)

016-F3170-01-00

Unavailable

10

. SPRING, FRONT FORK

58W-F3141-00-00

Unavailable

11

UNDER BRACKET COMP

2TW-F3340-10-35

Unavailable

12

. BOLT, CAP

5L9-F3111-10-00

Unavailable

13

O-RING

58W-F3114-00-00

$7.49

14

. BOOT

37N-23191-10-00

Unavailable

15

. BAND

5L9-F3192-10-00

Unavailable

16

. CLAMP, HOSE (90460-58141-00)

[90-46058-80-70

Unavailable

17

. CAP, FORNT FORK

5L9-F3168-10-00

Unavailable

18

SCREW, PAN HEAD

98517-04016-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

20

GASKET

509-23158-L0-00

Unavailable

21

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

22

. GASKET, DRAIN PLUG

5L9-F3129-00-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

24

BOLT, HEXAGON

97013-08030-00

Unavailable
