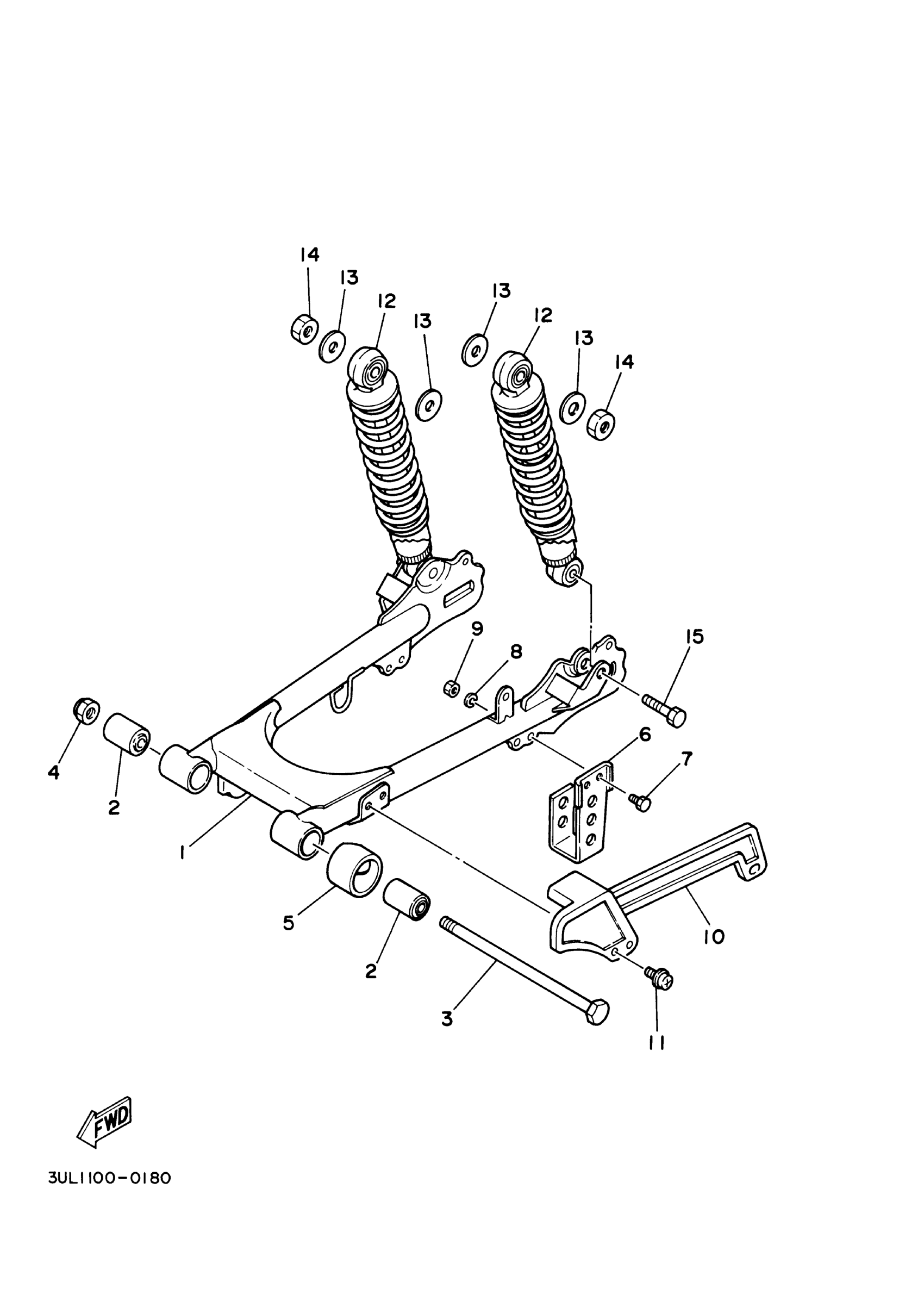

Yamaha RT100M (RT100) 3ULB 2000 REAR ARM - SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

3UL-22110-00-35

Unavailable

2

BUSH 1

276-22123-00-00

$38.99

3

AXLE,WHEEL

2J5-25381-01-00

Unavailable

4

NUT, NYLON

95717-12300-00

$7.49

5

SEAL, GUARD

4L0-22151-00-00

Unavailable

6

GUARD, CHAIN

492-22153-00-33

Unavailable

7

BOLT(8CP)

97017-06014-00

$8.49

8

WASHER, SPRING

92907-06100-00

$4.25

9

NUT(6TA)

95317-06600-00

$3.55

10

SUPPORT, CHAIN

21W-22199-00-00

$32.99

11

SCREW, WITH WASHER(52W)

90159-05121-00

$4.15

12

SHOCK ABSORBER ASSEMBLY, REAR

3UL-22210-01-UJ

Unavailable

13

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

14

NUT, HEXAGON

95337-12600-00

$8.49

15

BOLT, WASHER BASED(3YR)

90105-10669-00

Unavailable
