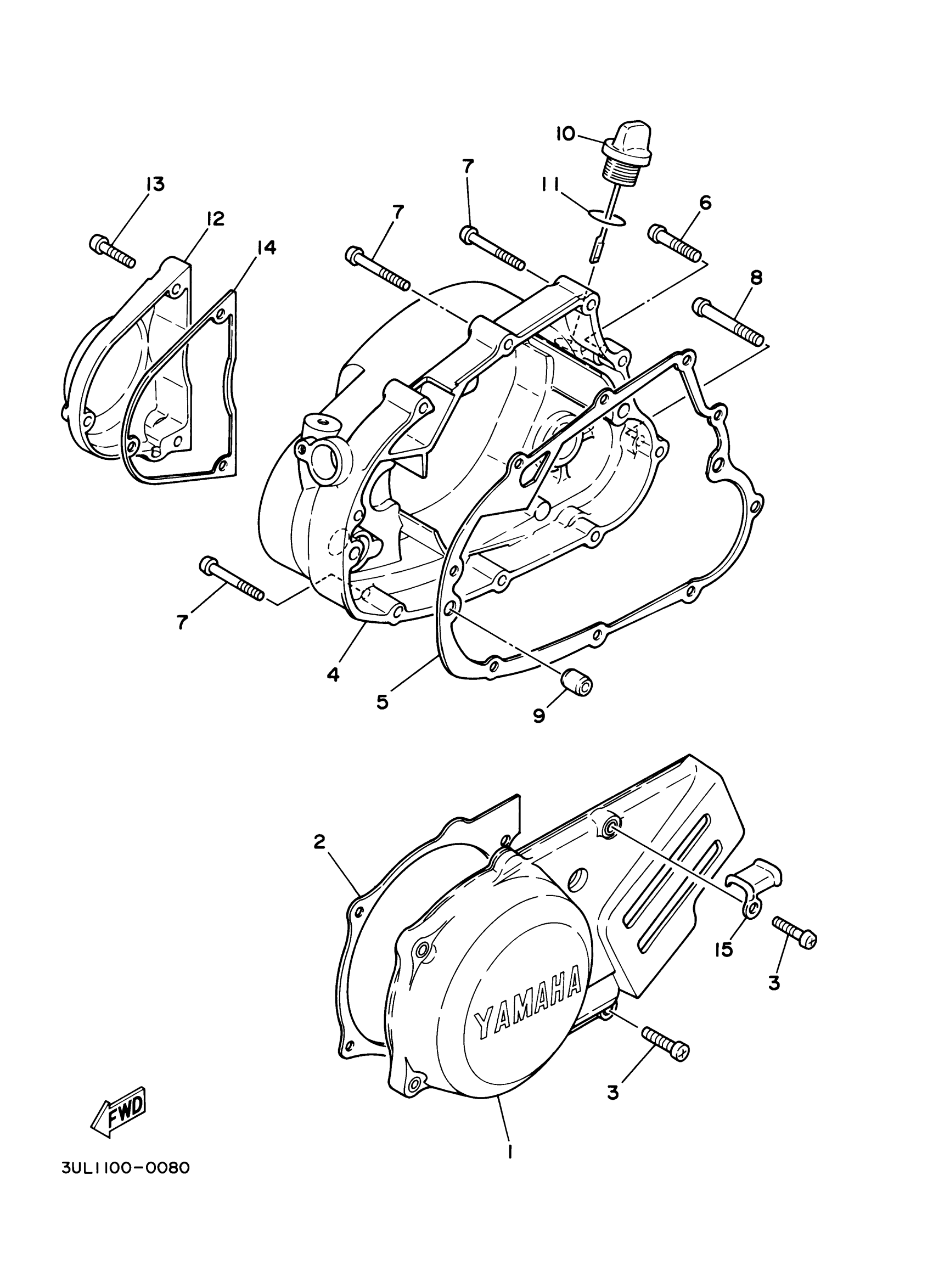

Yamaha RT100M (RT100) 3ULB 2000 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

23F-15411-00-00

Unavailable

2

GASKET 1

3UL-15455-00-00

$22.99

3

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

4

COVER, CRANKCASE 3

401-15431-00-00

Unavailable

5

GASKET, CRANKCASE COVER 1

3UL-15451-00-00

$20.99

6

SCREW, PAN

98517-06030-00

Unavailable

7

SCREW, PAN

98507-06040-00

$3.22

8

SCREW, PAN

98507-06045-00

$3.14

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

PLUG, OIL LEVEL

401-15362-00-00

Unavailable

11

O-RING (646)

93210-19123-00

Unavailable

12

COVER, OIL PUMP

1X0-15416-00-00

Unavailable

13

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

14

GASKET, OIL PUMP COVER 1

3UL-15456-01-00

$11.99

15

CLAMP

90461-10016-00

Unavailable
