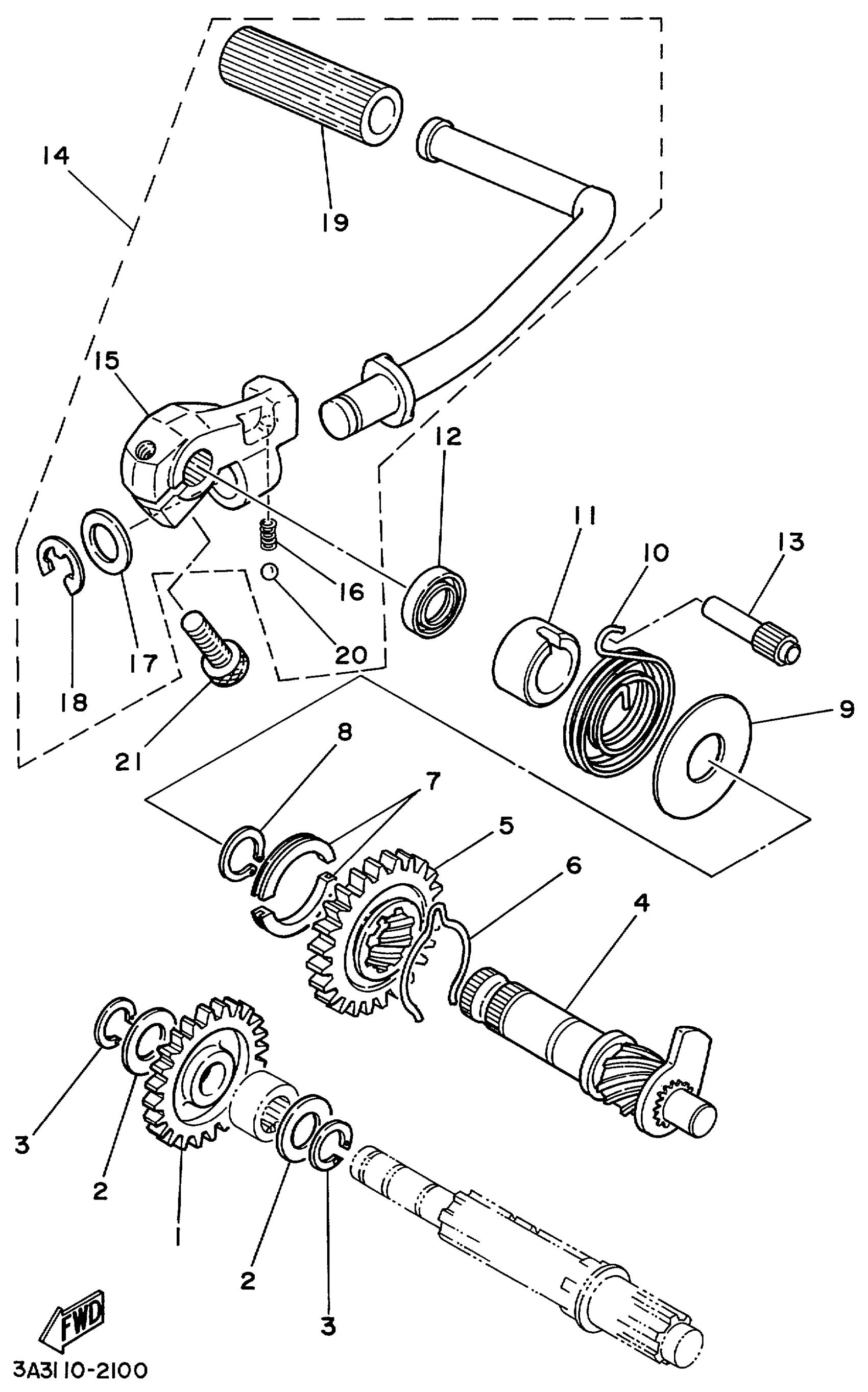

Yamaha RT100L (RT100) 3ULA 1999 STARTER Diagram

#

Description
Price

1

GEAR, KICK IDLE

525-15651-00-00

$39.47

2

SHIM, MAIN AXLE 0.5MM

137-17417-00-05

$3.85

2

SHIM, MAIN AXLE 0.6MM

137-17417-00-06

$1.92

2

SHIM, MAIN AXLE 0.7MM

137-17417-00-07

Unavailable

2

SHIM, MAIN AXLE 1.0MM

137-17417-00-10

$1.92

2

SHIM, MAIN AXLE 1.2MM

137-17417-00-12

$2.38

3

CIRCLIP

93440-15012-00

$5.75

4

KICK AXLE ASY

403-15660-02-00

Unavailable

5

GEAR, KICK

315-15641-00-00

Unavailable

6

CLIP 315156870000

90468-26048-00

$4.89

7

HOLDER, KICK GEAR

248-15654-00-00

$6.39

8

CIRCLIP(4A6)

99009-30400-00

$6.11

9

COVER, SPRING

401-15676-00-00

$5.99

10

SPRING TORSION 401156650000

90508-26041-00

$5.36

11

SPACER, KICK AXLE SPRING

1W1-15666-00-00

$14.94

12

OIL SEAL (17X25X4-401)

93101-17062-00

Unavailable

13

STOPPER, KICK SPRING

257-15668-00-00

Unavailable

14

KICK CRANK ASSEMBLY

3UL-15620-00-00

Unavailable

15

BOSS, KICK CRANK

1T9-15621-00-00

Unavailable

16

SPRING COMPRESSION278156220000

90501-12081-00

Unavailable

17

WASHER PLATE 278156130000

90201-15234-00

Unavailable

18

CIRCLIP

99006-10600-00

Unavailable

19

COVER, KICK LEVER

156-15618-01-00

Unavailable

20

BALL (12R)

93507-32031-00

Unavailable

21

BOLT, SOCKET

91317-08025-00

Unavailable
