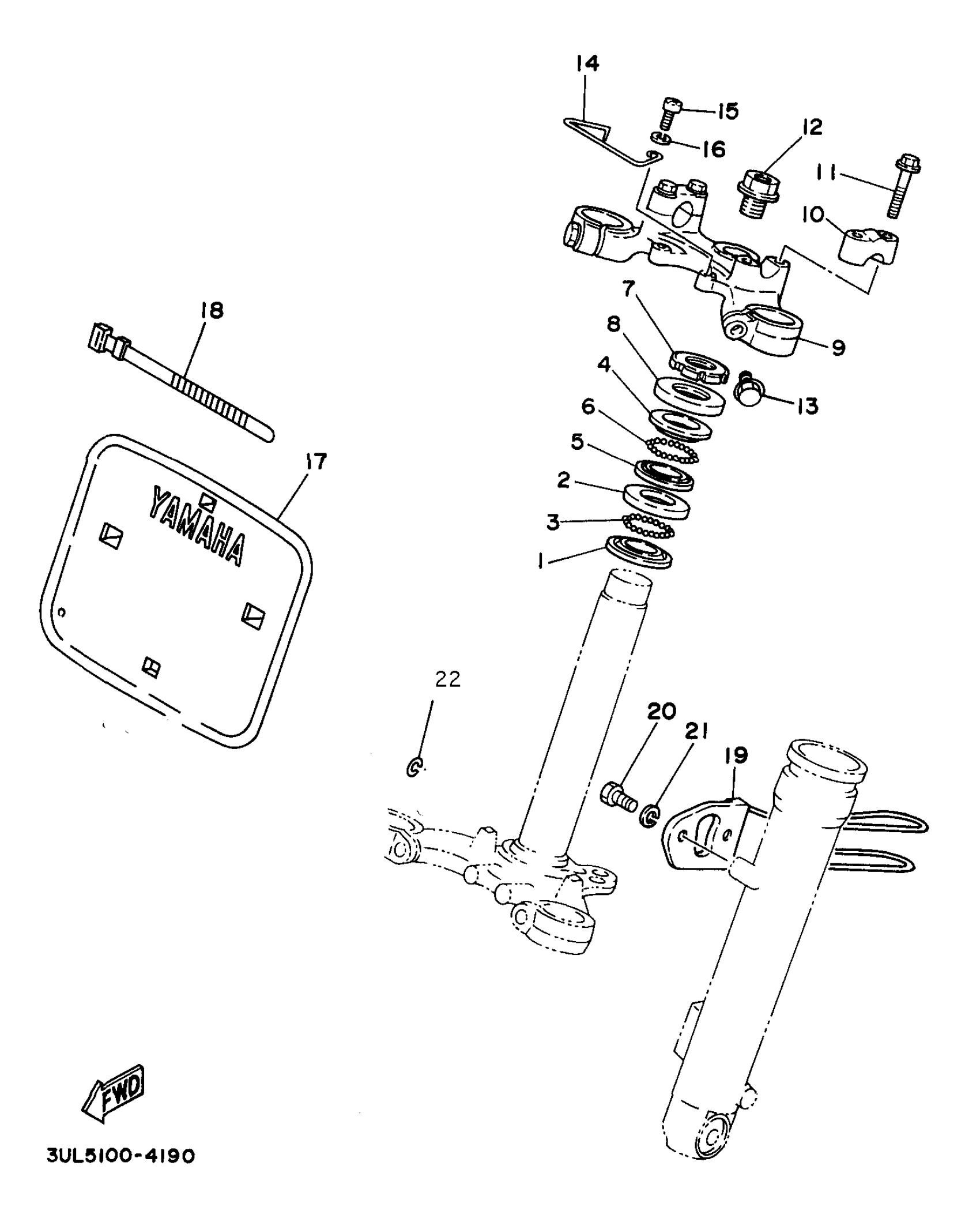

Yamaha RT100K (RT100) 1998 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

RACE, BALL 2

B6E-23412-00-00

$13.49

3

BALL

93501-04011-00

$8.49

4

RACE, BALL 1

BP2-23411-00-00

$11.49

5

RACE, BALL 2

BP2-23412-00-00

$7.49

6

BALL

93503-16003-00

$2.72

7

NUT

90179-25004-00

$24.99

8

COVER, BALL RACE

122-23416-00-00

$7.99

9

CROWN, HANDLE

354-23435-00-35

Unavailable

10

HOLDER, HANDLE UPPER

1E6-23441-10-35

$23.99

11

BOLT, FLANGE(4FM)

95814-08035-00

$8.49

12

BOLT, WASHER BASED

90105-14060-00

Unavailable

13

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

14

GUIDE, CABLE

3UL-2331E-00-00

Unavailable

15

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

PLATE, NUMBER

3UL-23485-40-00

Unavailable

18

BAND, SWITCH CORD

437-83936-11-00

Unavailable

19

HOLDER, CABLE 1

1T9-23318-00-00

Unavailable

20

BOLT, HEXAGON

97017-06012-00

Unavailable

21

WASHER, SPRING

92907-06100-00

Unavailable

22

WASHER(3SX)

92907-05100-00

Unavailable
