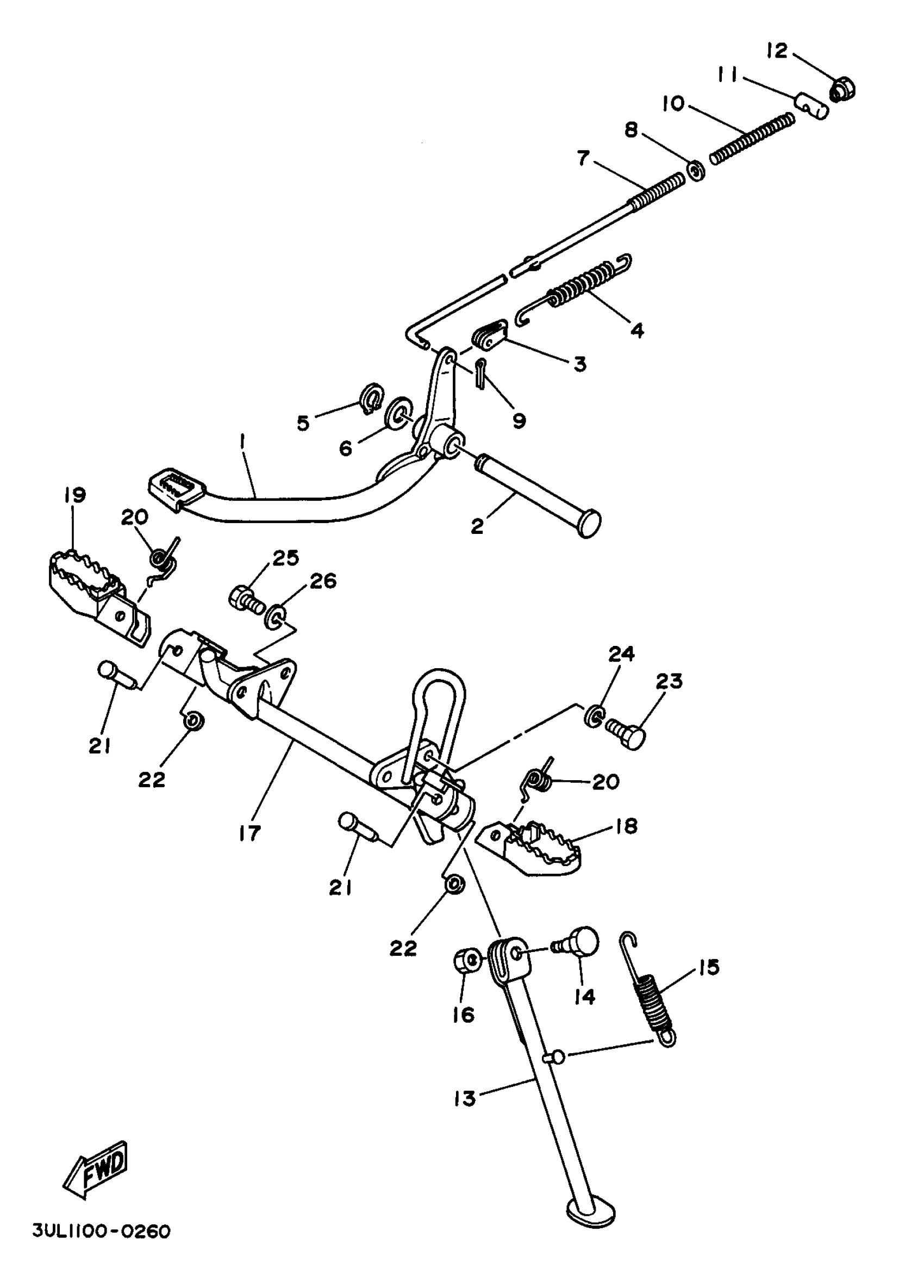

Yamaha RT100K (RT100) 1998 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL,BRAKE

538-27211-01-00

Unavailable

2

SHAFT, BRAKE PEDAL

3UL-27212-00-00

Unavailable

3

HOOK

1T9-27254-00-00

Unavailable

4

SPRING, TENSION

90506-20157-00

Unavailable

5

CIRCLIP(13H)

99009-14400-00

$3.59

6

WASHER PLATE 148272190000

90201-14215-00

$10.49

7

ROD, BRAKE

1T9-27231-00-00

Unavailable

8

WASHER(6TA)

92907-06200-00

$8.49

9

PIN, COTTER (648)

91490-20015-00

$2.20

10

SPRING, (180-27236-00)

90501-10245-00

$8.49

11

PIN 1562723700

90249-12008-00

$8.49

12

NUT (25K)

90179-06411-00

$8.49

13

STAND, SIDE

367-27311-02-R4

Unavailable

14

BOLT 137273170000

90109-08031-00

$8.49

15

SPRING TENSION 150273160000

90506-25047-00

$9.49

16

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

17

FOOTREST

1T9-27451-02-R4

Unavailable

18

FOOTREST 1

22W-27411-01-90

Unavailable

19

FOOTREST 2

22W-27421-01-90

Unavailable

20

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

21

PIN (214-27418-00)

90243-08006-00

Unavailable

22

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

23

BOLT, HEXAGON

97017-08020-00

Unavailable

24

WASHER(JN5)

92907-08100-00

Unavailable

25

BOLT, HEXAGON

97017-08016-00

Unavailable

26

WASHER(JN5)

92907-08100-00

Unavailable
