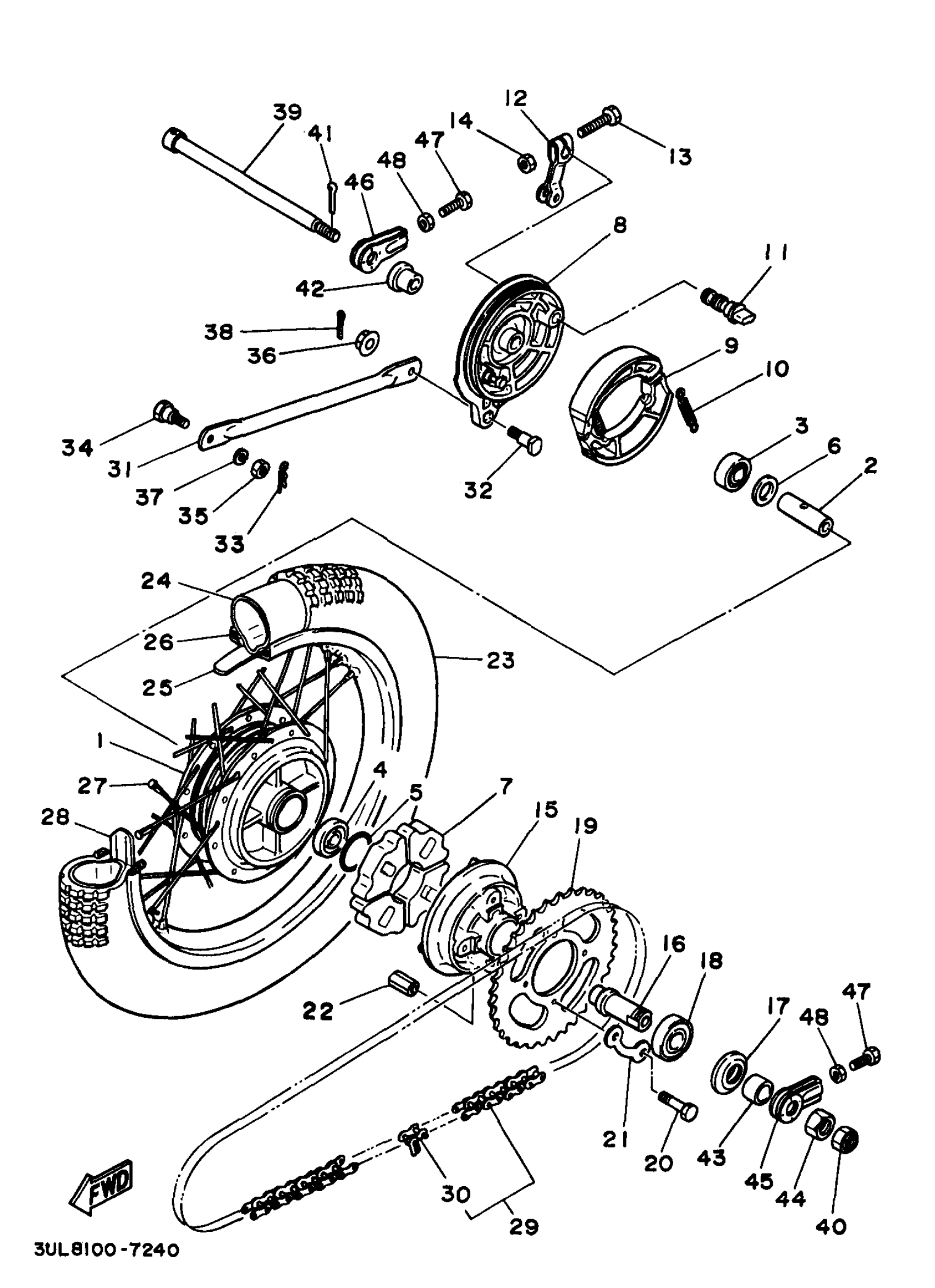

Yamaha RT100J (RT100) 3UL8 1997 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

18A-25311-00-98

Unavailable

2

SPACER

90560-12145-00

$20.99

3

BEARING

93306-30102-00

$39.99

4

BEARING

93306-30102-00

$39.99

5

O-RING (102)

93210-41041-00

$7.49

6

FLANGE, SPACER

109-25315-00-00

$7.99

7

DAMPER, CLUTCH

304-25364-01-00

$27.99

8

PLATE, BRAKE SHOE

1M3-25321-02-98

Unavailable

9

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

10

SPRING, TENSION

90506-15260-00

$8.49

11

CAMSHAFT

4GL-25351-00-00

$68.99

12

LEVER, CAMSHAFT

5DV-25355-00-00

Unavailable

13

BOLT, HEXAGON (538)

90101-06278-00

$2.17

14

NUT(6TA)

95317-06600-00

$3.55

15

CLUTCH, HUB

296-25366-01-33

$68.99

16

SHAFT, SPROCKET

167-25387-00-00

Unavailable

17

OIL SEAL (30X42X8-102)

93106-30004-00

Unavailable

18

BEARING(3BN)

93306-00438-00

Unavailable

19

SPROCKET, DRIVEN (48T)

2U2-25448-11-00

Unavailable

20

BOLT(1AJ)

90101-08672-00

Unavailable

21

WASHER, LOCK

3M5-25412-00-00

Unavailable

22

NUT(3KX)

90179-08639-00

Unavailable

23

TIRE (3.00-16)

94130-16368-00

Unavailable

24

TUBE (3.00-16)

94230-16075-00

Unavailable

25

BAND, RIM

94330-16058-00

Unavailable

26

RIM (1.60-16)

94416-16003-00

Unavailable

27

SPOKE SET

538-25304-10-00

Unavailable

28

SPACER, BEAD

5X2-25394-00-00

Unavailable

29

CHAIN, DRIVE

9Y580-52103-00

Unavailable

30

. JOINT, CHAIN

94600-03001-00

Unavailable

31

BAR, TENSION

1T9-25371-00-00

Unavailable

32

BOLT 1022537300

90109-08183-00

Unavailable

33

PIN, COTTER (648)

91490-20015-00

Unavailable

34

BOLT (183-25378-00)

90109-08368-00

Unavailable

35

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

36

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

37

WASHER(6TA)

92907-08600-00

Unavailable

38

PIN, COTTER (648)

91490-20015-00

Unavailable

39

AXLE, WHEEL

390-25381-01-00

Unavailable

40

NUT 3532518200

90171-10004-00

Unavailable

41

PIN, COTTER

91490-20025-00

Unavailable

42

COLLAR 195253830000

90387-12102-00

Unavailable

43

COLLAR 167253860000

90387-18144-00

Unavailable

44

NUT, HEXAGON

90170-18165-00

Unavailable

45

PULLER, CHAIN(L.H)

241-25388-00-00

Unavailable

46

PULLER, CHAIN

241-25389-10-00

Unavailable

47

BOLT HEXAGON 167253790000

90101-06016-00

Unavailable

48

NUT(6TA)

95317-06600-00

$3.55
