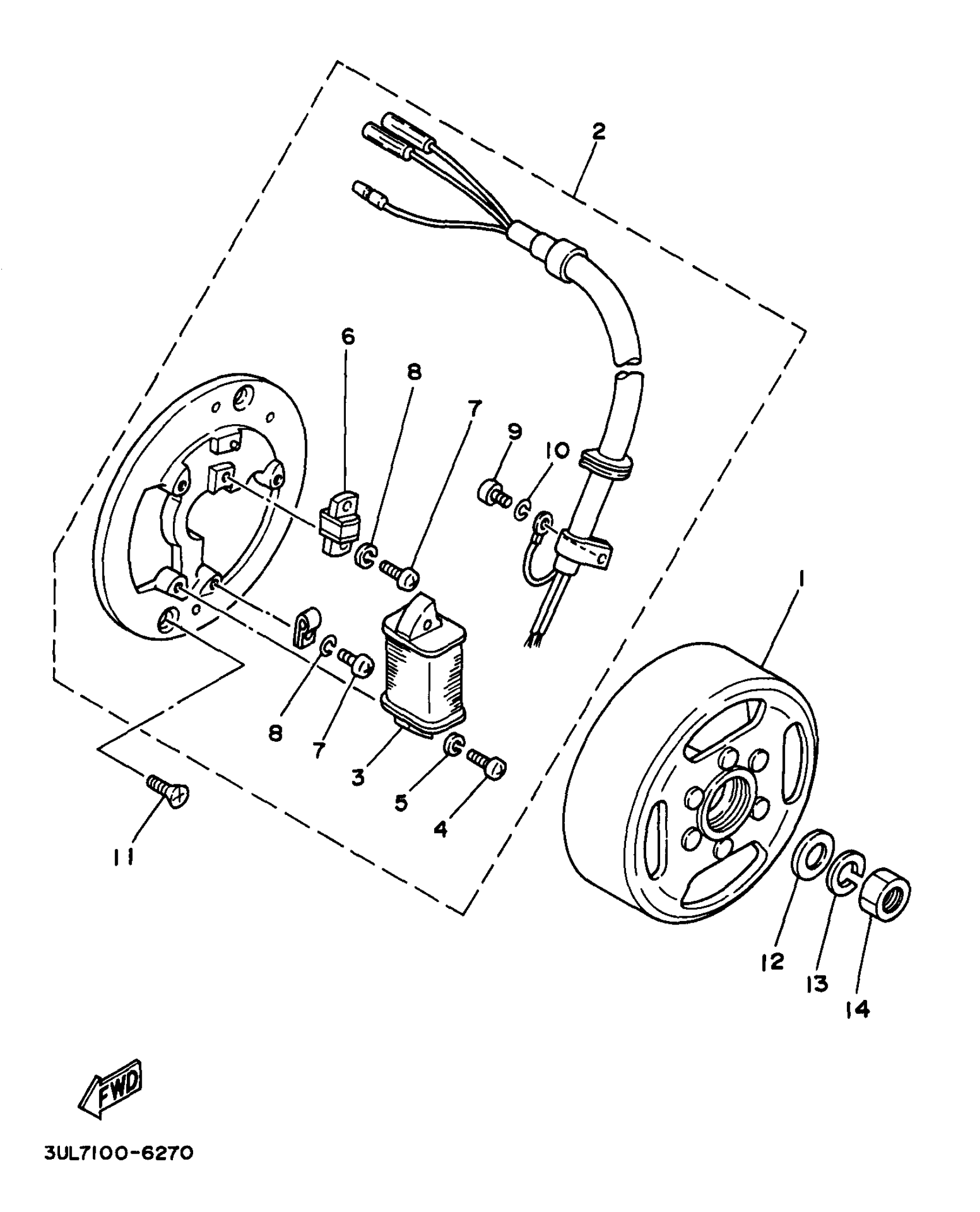

Yamaha RT100J (RT100) 3UL8 1997 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSEMBLY

3M2-85550-21-00

Unavailable

2

STATOR ASSEMBLY

3M2-85510-22-00

Unavailable

3

. COIL, SOURCE

3M2-85512-22-00

Unavailable

4

SCREW, PAN HEAD

98517-04020-00

$8.49

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

6

COIL, PULSER

3FJ-85580-00-00

Unavailable

7

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

8

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

9

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

SCREW, BINDING

98907-06014-00

$7.99

12

WASHER (492)

90201-12535-00

Unavailable

13

WASHER(6TA)

92907-12100-00

$8.49

14

NUT, HEXAGON 98801-12200

90170-12175-00

$9.49
