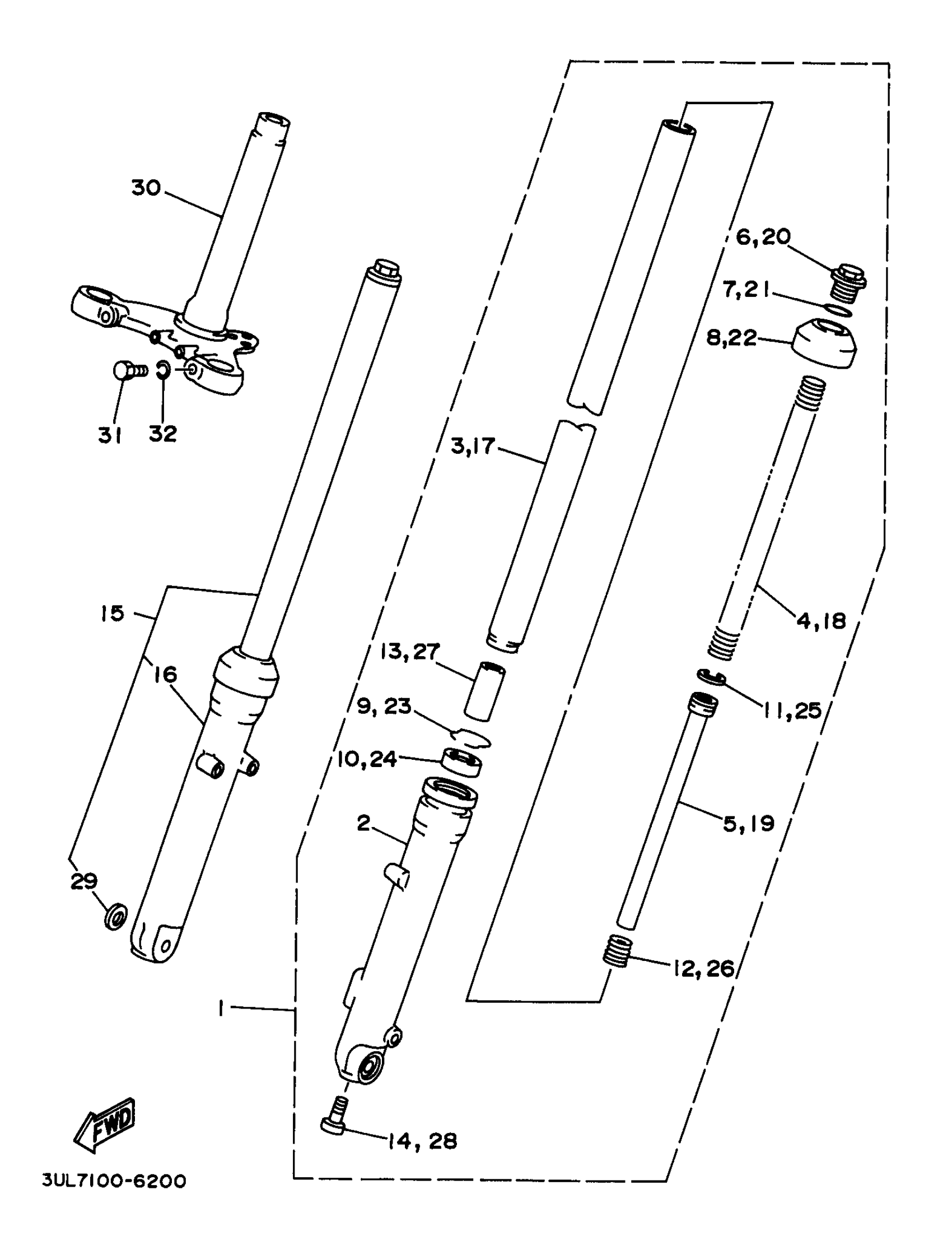

Yamaha RT100J (RT100) 3UL8 1997 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY (L.H)

3UL-23102-02-00

Unavailable

2

. TUBE, OUTER (LEFT)

3UL-23126-02-00

Unavailable

3

. TUBE, INNER 1

3UL-23124-02-00

Unavailable

4

. SPRING, FRONT FORK

3UL-23141-02-00

Unavailable

5

. PISTON, FRONT FORK

3UL-23171-02-00

Unavailable

6

. BOLT, CAP

3UL-23111-00-00

Unavailable

7

O-RING (1L9)

93210-18322-00

$5.60

8

SEAL,DUST

462-23144-02-00

Unavailable

9

. CLIP, OIL SEAL

2J5-23156-00-00

Unavailable

10

OIL SEAL (5R6)

93110-27010-00

Unavailable

11

RING, PISTON

2J5-23157-00-00

$7.99

12

SPRING, REBOUND

2J5-23151-00-00

$7.99

13

. GUIDE, COVER LOWER

3UL-23116-02-00

Unavailable

14

BOLT

3M7-23181-00-00

$8.99

15

FRONT FORK ASSEMBLY (R.H)

3UL-23103-02-00

Unavailable

16

. TUBE, OUTER (RIGHT)

3UL-23136-02-00

Unavailable

17

. TUBE, INNER 1

3UL-23124-02-00

Unavailable

18

. SPRING, FRONT FORK

3UL-23141-02-00

Unavailable

19

. PISTON, FRONT FORK

3UL-23171-02-00

Unavailable

20

. BOLT, CAP

3UL-23111-00-00

Unavailable

21

O-RING (1L9)

93210-18322-00

$5.60

22

SEAL,DUST

462-23144-02-00

Unavailable

23

. CLIP, OIL SEAL

2J5-23156-00-00

Unavailable

24

OIL SEAL (5R6)

93110-27010-00

Unavailable

25

RING, PISTON

2J5-23157-00-00

$7.99

26

SPRING, REBOUND

2J5-23151-00-00

$7.99

27

. GUIDE, COVER LOWER

3UL-23116-02-00

Unavailable

28

BOLT

3M7-23181-00-00

$8.99

29

. WASHER, SPECIAL

462-23392-02-00

Unavailable

30

UNDER BRACKET COMP.

1T9-23340-00-90

Unavailable

31

BOLT (8J7)

97013-10030-00

Unavailable

32

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable
