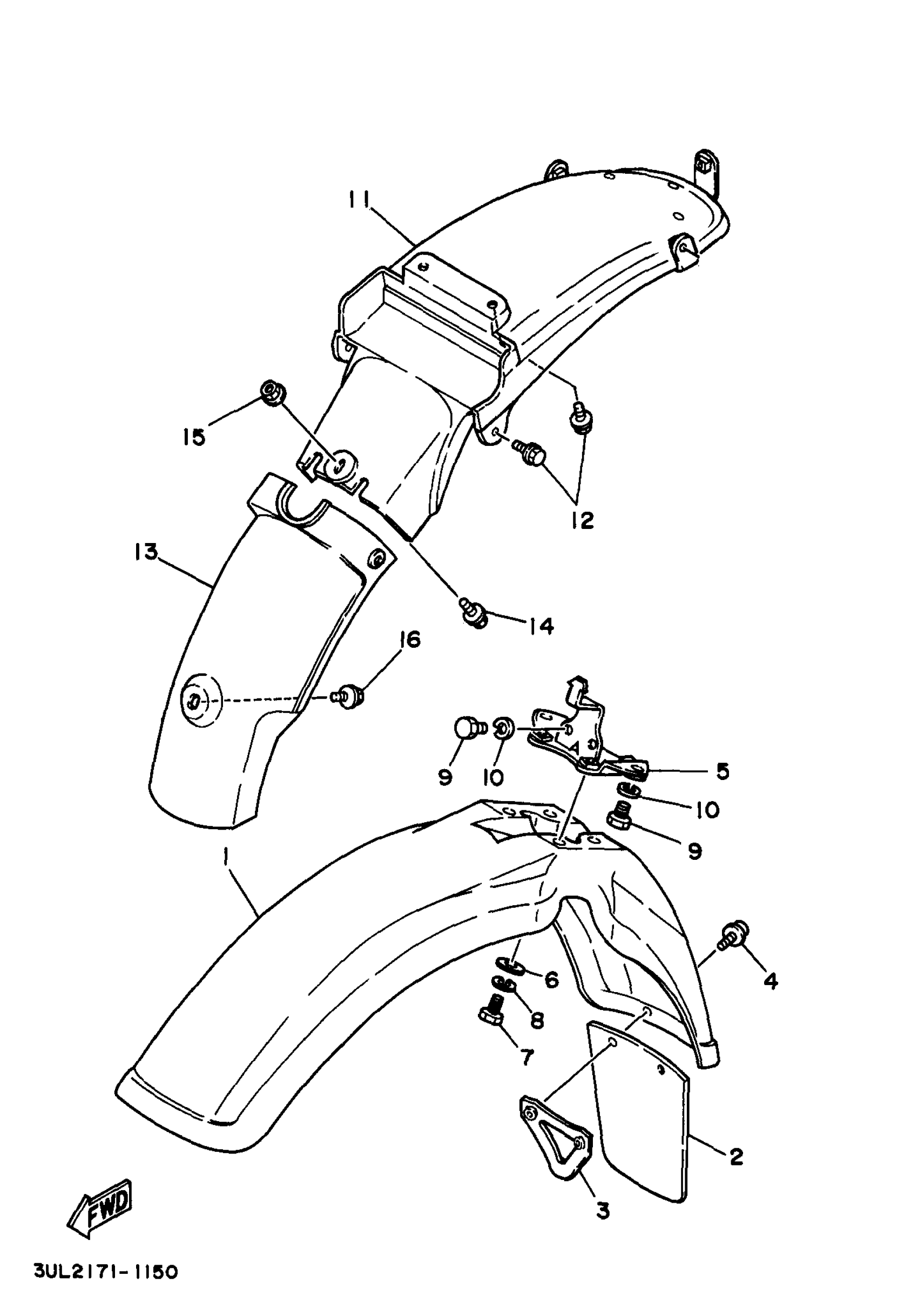

Yamaha RT100J (RT100) 3UL8 1997 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3UL-21511-30-00

Unavailable

2

FLAP, FRONT FENDER

395-21521-00-00

Unavailable

3

STAY, FENDER 2

3UL-21514-00-00

Unavailable

4

SCREW, WITH WASHER(52W)

90159-05121-00

$4.15

5

STAY, FENDER 1

3UL-21513-00-00

Unavailable

6

WASHER, PLATE

90201-06020-00

$9.49

7

BOLT(8CP)

97017-06014-00

$8.49

8

WASHER, SPRING

92907-06100-00

$4.25

9

BOLT(3JP)

97017-06010-00

$3.76

10

WASHER, SPRING

92907-06100-00

$4.25

11

FENDER, REAR

3UL-21611-40-00

Unavailable

12

BOLT, WITH WASHER

90119-06242-00

$7.49

13

FLAP

1T9-21621-00-00

Unavailable

14

BOLT, WITH WASHER

90119-06242-00

$7.49

15

NUT, FLANGE(4MV)

95707-06500-00

$1.23

16

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable
