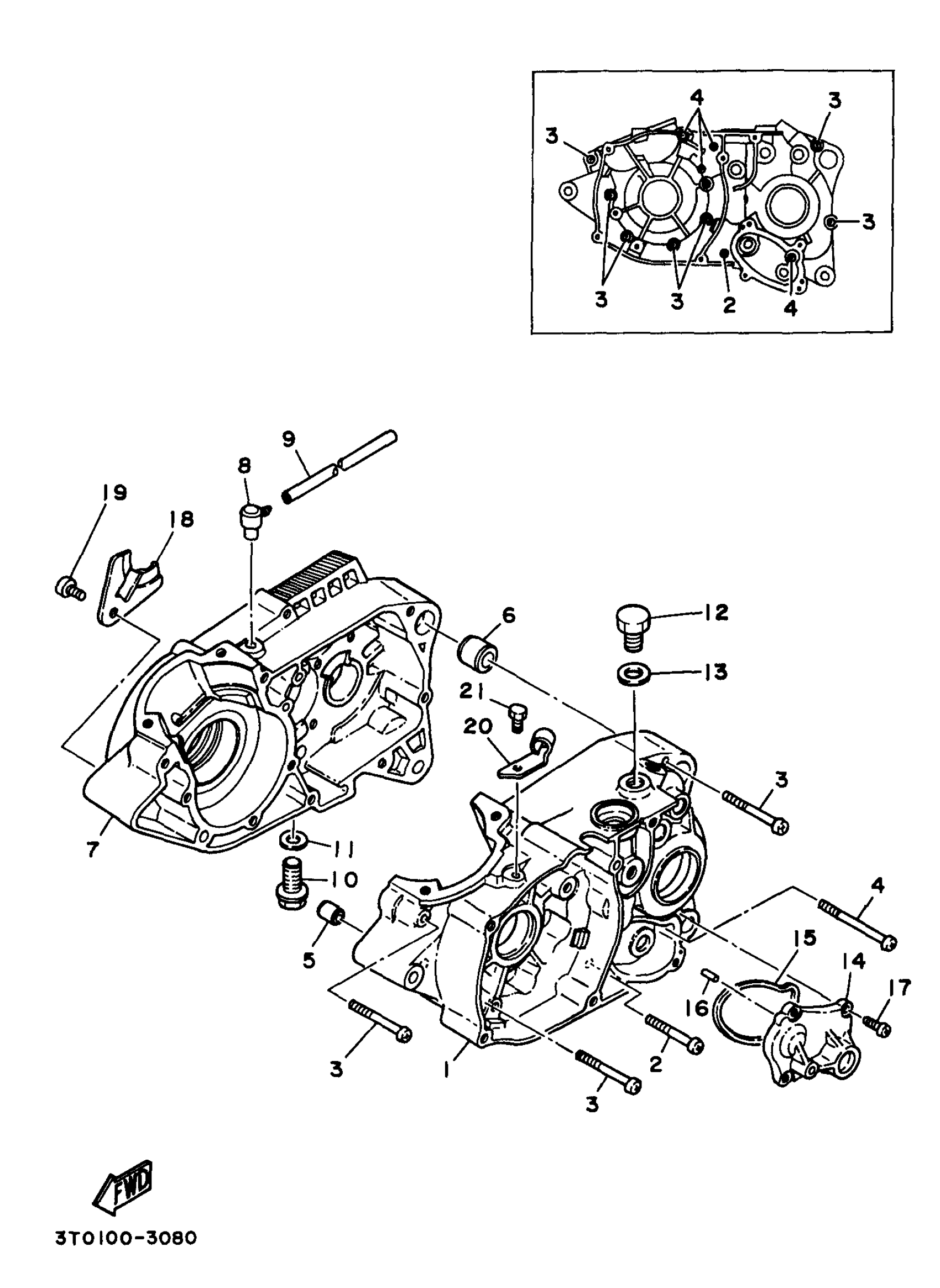

Yamaha RT100J (RT100) 3UL8 1997 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE 1
1T9-15111-00-00
Unavailable
7
CRANKCASE 2
1T9-15121-01-00
Unavailable
12
PLUG, STRAIGHT SCREW
90340-12004-00
Unavailable
16
PIN,DOWEL (603)
93603-12007-00
Unavailable
17
SCREW, PAN
98507-06014-00
Unavailable
18
HOLDER (R.H)
304-15128-00-00
Unavailable
19
SCREW, PAN
98517-06012-00
Unavailable
20
HOLDER, CLUTCH CABLE
401-15441-02-00
Unavailable
21
BOLT, HEXAGON
97017-06012-00
Unavailable
