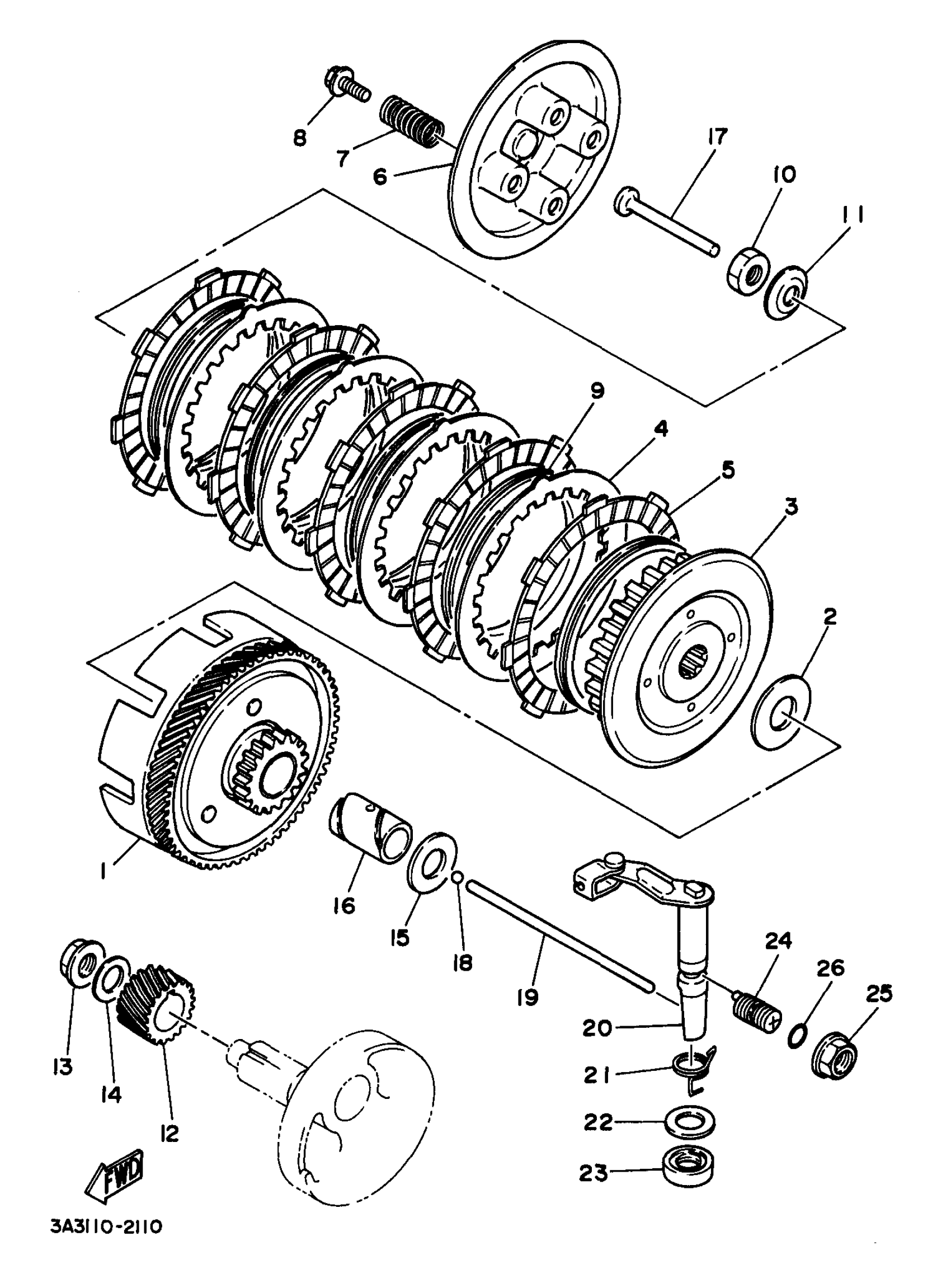

Yamaha RT100J (RT100) 3UL8 1997 CLUTCH Diagram

#

Description
Price

1

. PRIMARY DRIVEN GEAR COMP (74T)

1V1-16150-10-00

Unavailable

2

PLATE, THRUST

131-16154-00-00

Unavailable

3

BOSS, CLUTCH

1V1-16371-02-00

Unavailable

4

PLATE, CLUTCH 1

1V1-16324-10-00

$22.99

5

PLATE, FRICTION

598-16321-01-00

$17.49

6

PLATE, PRESSURE

598-16351-00-00

Unavailable

7

SPRING COMPRESSION132163330000

90501-20125-00

$8.49

8

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$8.49

9

RING, CUSHION

1V1-16367-01-00

$8.99

10

NUT, HEXAGON 1371637700

90170-12060-00

$9.49

11

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

12

GEAR, PRIMARY DRIVE (19T)

336-16111-00-00

Unavailable

13

NUT(1EE)

90179-12659-00

$8.49

14

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

15

WASHER, PLATE (1N1)

90201-17558-00

$9.49

16

SPACER (525)

90560-17147-00

Unavailable

17

ROD,PUSH (1)

137-16356-00-00

Unavailable

18

BALL

93503-16003-00

Unavailable

19

ROD, PUSH 2

1X0-16357-00-00

Unavailable

20

PUSH LEVER ASSEMBLY

525-16380-00-00

Unavailable

21

SPRING, TORSION

90508-14132-00

Unavailable

22

WASHER PLATE 150251530000

90201-14217-00

Unavailable

23

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable

24

SCREW

90149-12097-00

Unavailable

25

NUT

90179-12197-00

Unavailable

26

O-RING (611)

93210-10096-00

Unavailable
