Description

Price

1

SWITCH, HANDLE 1

47J-83976-01-00

Unavailable

2

. CAP 1

33G-83956-01-00

Unavailable

3

SCREW, PAN HEAD

98517-05020-00

$4.25

4

SCREW, BINDING

98907-04008-00

$7.49

5

BAND, SWITCH CORD

437-83936-01-00

$7.99

6

WIRE, LEAD

558-82116-00-00

Unavailable

7

HOLDER, LEVER (L.H)

214-82911-01-00

$56.99

8

LEVER 1

23X-83912-02-00

$27.99

9

BOLT(1FG)

90109-06798-00

$8.49

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

BOLT, HEXAGON

97007-06022-00

Unavailable

12

WASHER, SPRING

92907-06100-00

$4.25

13

HOLDER, LEVER (R.H)

233-82921-31-00

$68.99

14

LEVER R

23X-83922-01-00

$27.99

15

BOLT(1FG)

90109-06798-00

$8.49

16

NUT, SELF-LOCKING

95617-06100-00

$8.49

17

BOLT, HEXAGON

97007-06022-00

Unavailable

18

WASHER, SPRING

92907-06100-00

$4.25

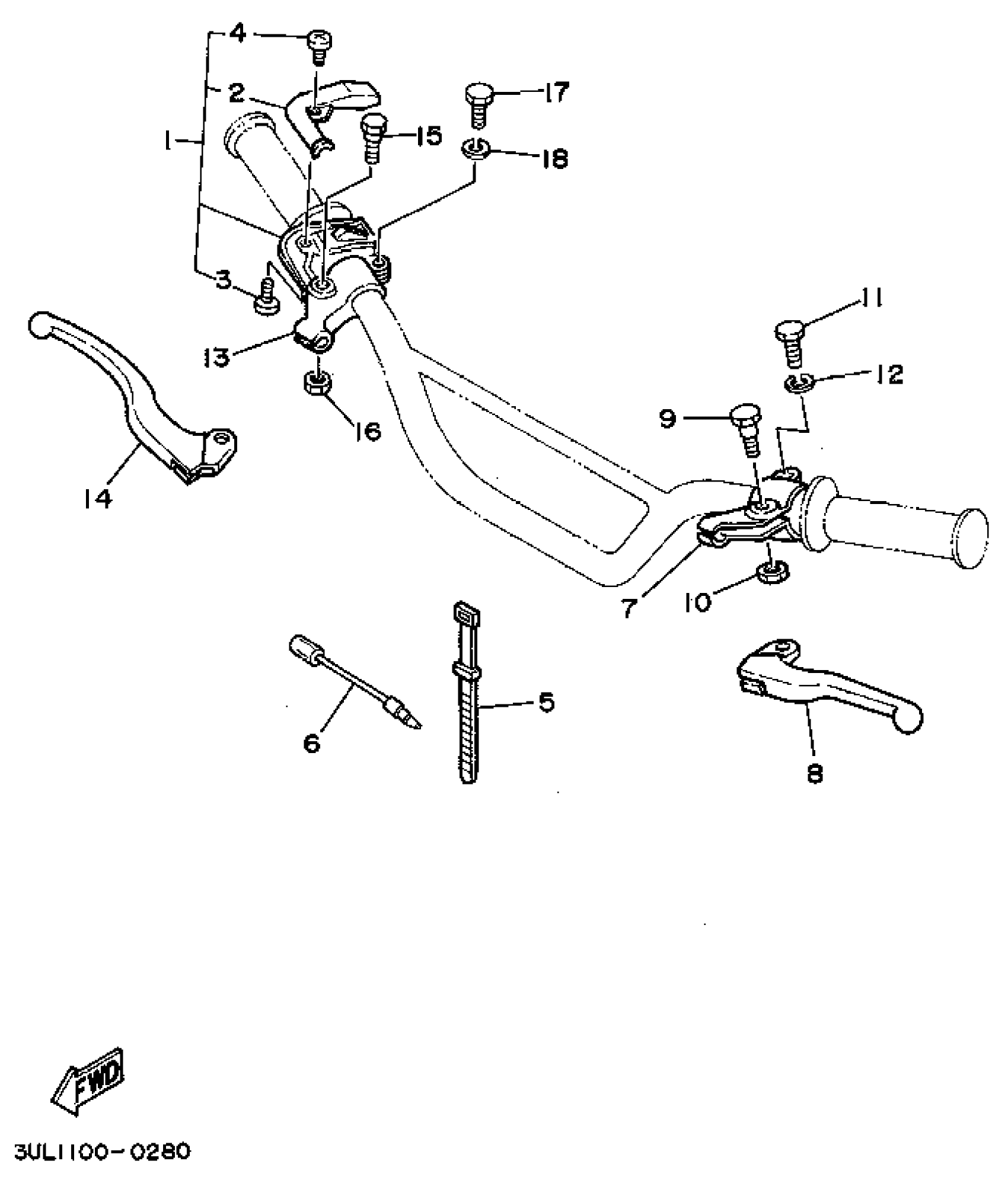

Yamaha RT100G (RT100) 1995 HANDLE SWITCH - LEVER Diagram

SWITCH, HANDLE 1

. CAP 1

SCREW, PAN HEAD

SCREW, BINDING

BAND, SWITCH CORD

WIRE, LEAD

HOLDER, LEVER (L.H)

LEVER 1

BOLT(1FG)

NUT, SELF-LOCKING

BOLT, HEXAGON

WASHER, SPRING

HOLDER, LEVER (R.H)

LEVER R

BOLT(1FG)

NUT, SELF-LOCKING

BOLT, HEXAGON

WASHER, SPRING
