1995 Yamaha RT100 (RT100G) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1995 Yamaha RT100 (RT100G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

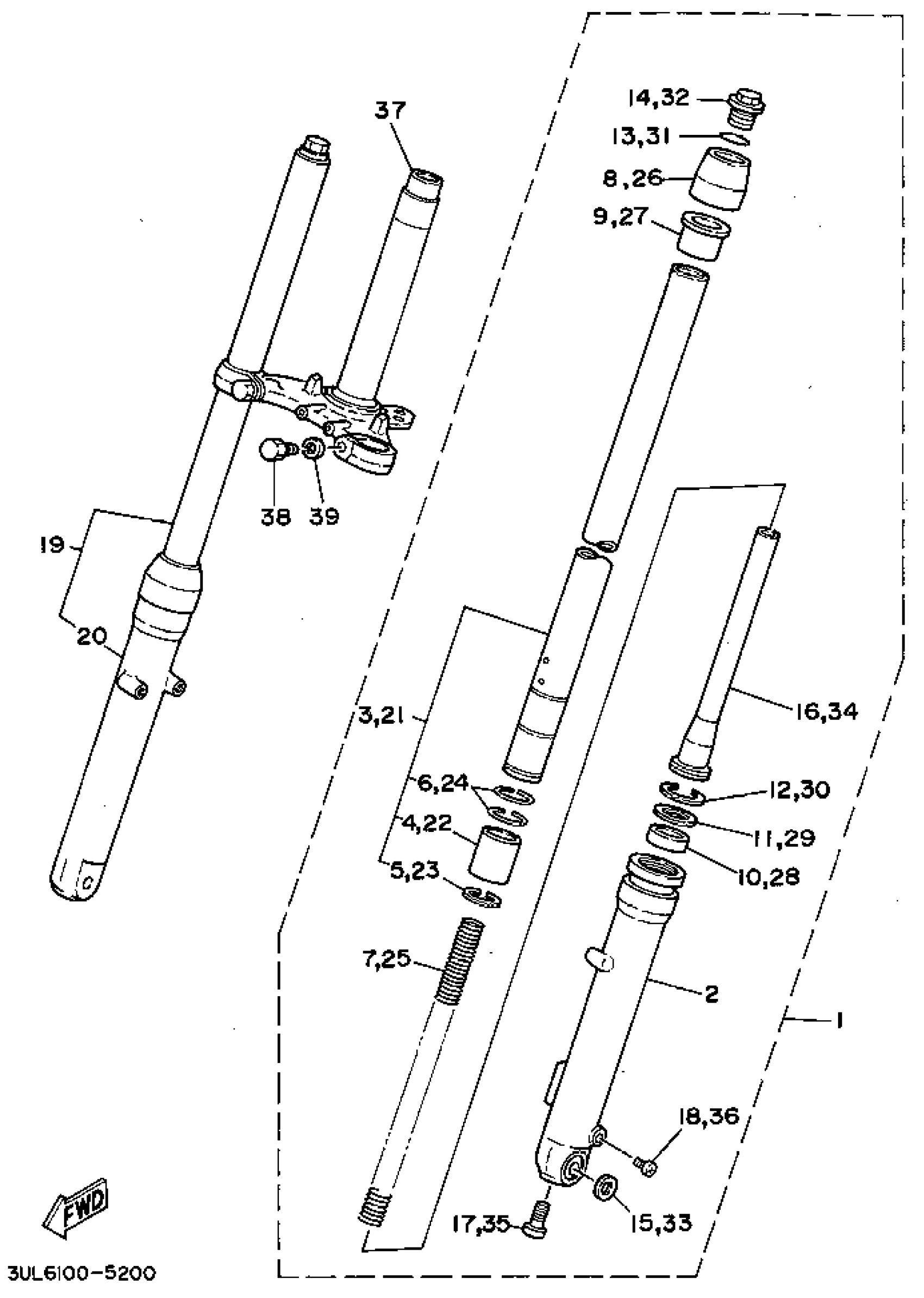

1995 Yamaha RT100 (RT100G) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY (L.H)

3UL-23102-02-00

1
Out of stock

2

. TUBE, OUTER (LEFT)

1T9-23126-00-35

1
Out of stock

3

. TUBE, INNER 1

3UL-23124-01-00

1
Out of stock

4

. PISTON, FRONT FORK

462-23171-02-00

1
Out of stock

5

. CIRCLIP

462-23183-02-00

1
Out of stock

6

. RING, PISTON

462-23157-02-00

1
Out of stock

7

. SPRING, FRONT FORK

3UL-23141-01-00

1
Out of stock

8

SEAL,DUST

462-23144-02-00

1
Out of stock

9

. METAL, SLIDE 1

462-23125-02-00

1
Out of stock

10

OIL SEAL (5R6)

93110-27010-00

—

$22.46

In stock

11

. WASHER, OIL SEAL

462-23146-02-00

1
Out of stock

12

. CLIP, OIL SEAL

462-23156-02-00

1
Out of stock

13

O-RING (1L9)

93210-18322-00

1

$4.77

In stock

14

. BOLT, CAP

3UL-23111-00-00

1
Out of stock

15

. WASHER, SPECIAL

462-23392-02-00

1
Out of stock

16

. CYLINDER COMP, FRONT FORK

462-23170-02-00

1
Out of stock

17

SCREW, PAN HEAD(6B0)

97885-06025-00

1

$4.62

In stock

18

.. PLUG, DRAIN

451-23119-01-00

1
Out of stock

19

FRONT FORK ASSEMBLY (R.H)

3UL-23103-02-00

1
Out of stock

20

. TUBE, OUTER (RIGHT)

1T9-23136-00-35

1
Out of stock

21

. TUBE, INNER 1

3UL-23124-01-00

1
Out of stock

22

. PISTON, FRONT FORK

462-23171-02-00

1
Out of stock

23

. CIRCLIP

462-23183-02-00

1
Out of stock

24

. RING, PISTON

462-23157-02-00

1
Out of stock

25

. SPRING, FRONT FORK

3UL-23141-01-00

1
Out of stock

26

SEAL,DUST

462-23144-02-00

1
Out of stock

27

. METAL, SLIDE 1

462-23125-02-00

1
Out of stock

28

OIL SEAL (5R6)

93110-27010-00

—

$22.46

In stock

29

. WASHER, OIL SEAL

462-23146-02-00

1
Out of stock

30

. CLIP, OIL SEAL

462-23156-02-00

1
Out of stock

31

O-RING (1L9)

93210-18322-00

1

$4.77

In stock

32

. BOLT, CAP

3UL-23111-00-00

1
Out of stock

33

. WASHER, SPECIAL

462-23392-02-00

1
Out of stock

34

. CYLINDER COMP, FRONT FORK

462-23170-02-00

1
Out of stock

35

SCREW, PAN HEAD(6B0)

97885-06025-00

1

$4.62

In stock

36

.. PLUG, DRAIN

451-23119-01-00

1
Out of stock

37

UNDER BRACKET COMP.

1T9-23340-00-90

1
Out of stock

38

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

39

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock
