1995 Yamaha RT100 (RT100G) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1995 Yamaha RT100 (RT100G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

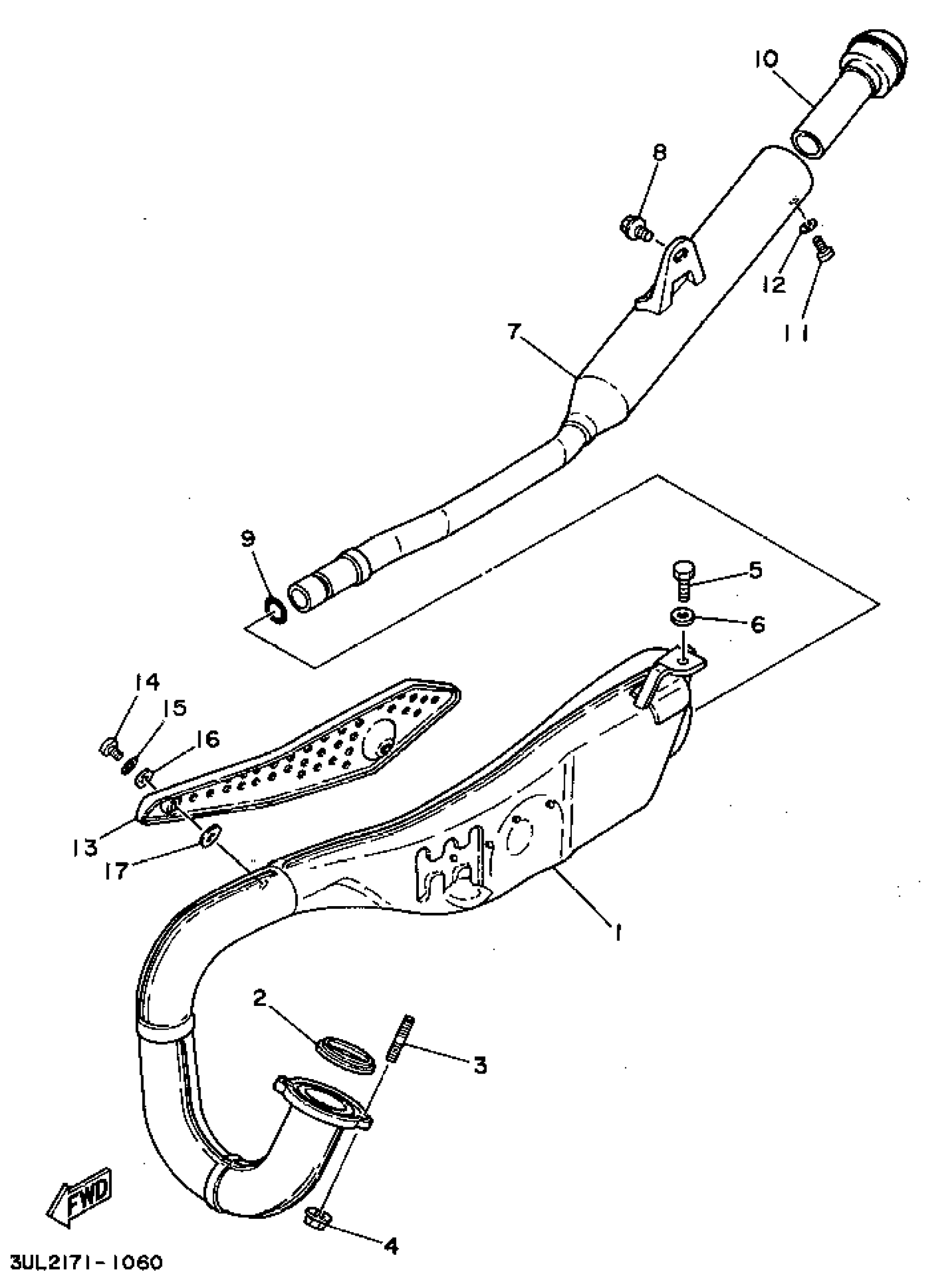

1995 Yamaha RT100 (RT100G) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASY L

3UL-14610-01-00

1
Out of stock

2

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

3

BOLT STUD 306111790000

90116-06016-00

1

$3.49

In stock

4

NUT,SELF-LOCKING

95607-06200-00

1

$10.25

In stock

5

BOLT, HEXAGON

97017-08016-00

1
Out of stock

6

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

7

SILENCER, EXHAUST

3UL-14753-00-00

1
Out of stock

8

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

9

O-RING (538)

93210-16290-00

—

$6.82

In stock

10

PIPE, OUTLET

438-14752-00-00

1
Out of stock

11

SCREW, PAN

98507-06010-00

1
Out of stock

12

WASHER, SPRING

92907-06100-00

1
Out of stock

13

PROTECTOR, MUFFLER 1

3UL-14718-00-00

1
Out of stock

14

SCREW, BINDING

98907-06010-00

1

$1.49

In stock

15

WASHER, WAVE(3RW)

90206-06090-00

1

$6.17

In stock

16

WASHER, PLATE(3MB)

90202-05187-00

—

$1.32

In stock

17

WASHER, PLATE(3MB)

90202-05187-00

—

$1.32

In stock
