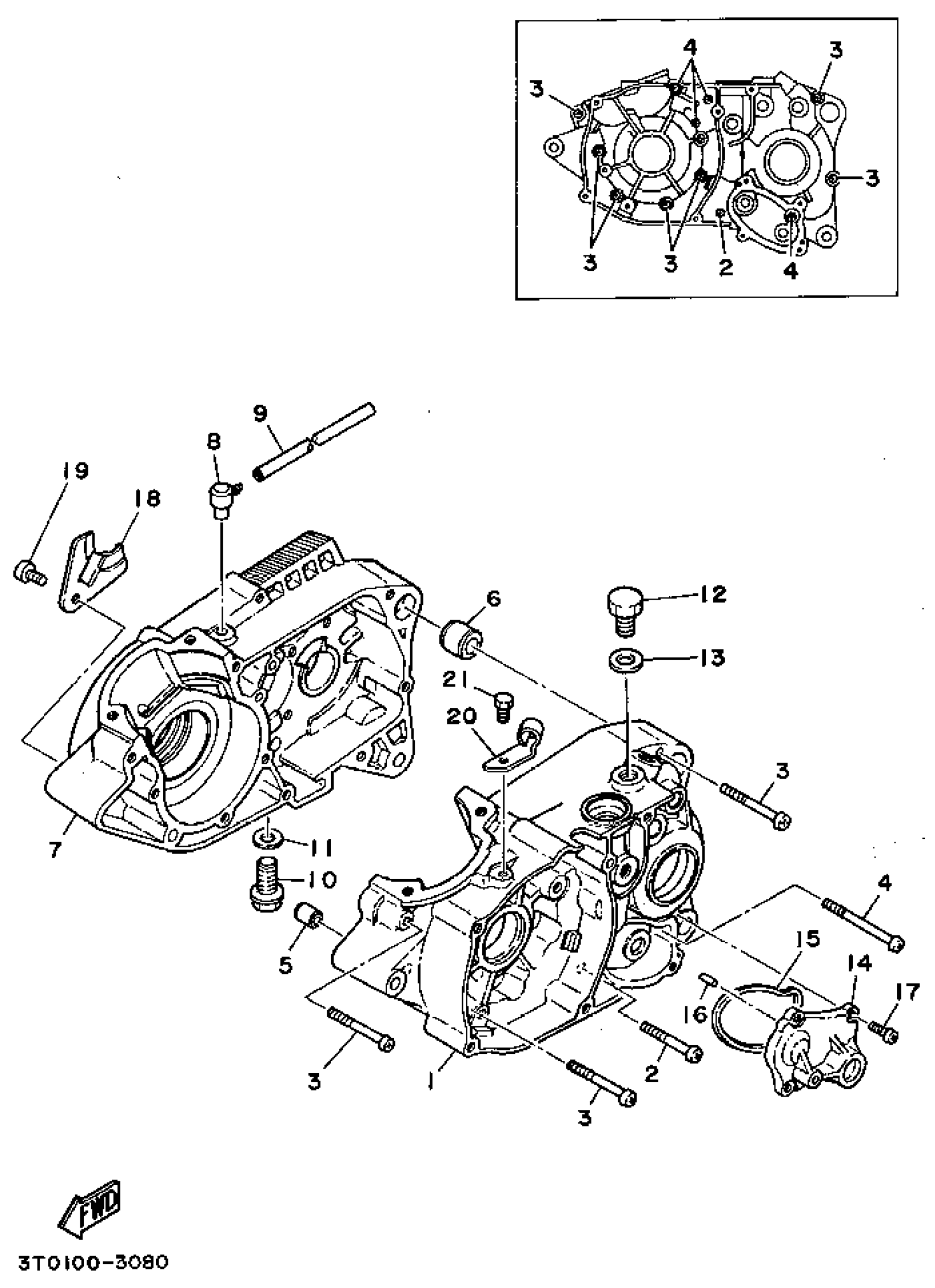

Yamaha RT100G (RT100) 1995 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

1T9-15111-00-00

Unavailable

2

SCREW, PAN

98507-06040-00

$3.22

3

SCREW, PAN

98507-06050-00

$3.28

4

SCREW, PAN

98507-06060-00

$7.99

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

PIN, DOWEL

99530-14016-00

$3.80

7

CRANKCASE 2

1T9-15121-01-00

Unavailable

8

BREATHER

583-15371-00-00

$6.99

9

HOSE (L1050)

90445-072G8-00

$29.99

10

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

11

GASKET (3JD1)

90430-12207-00

$7.99

12

PLUG, STRAIGHT SCREW

90340-12004-00

Unavailable

13

WASHER, PLATE

90201-12790-00

$9.49

14

COVER, SHIFTER

437-15419-01-00

$82.99

15

RING, RUBBER

401-15449-00-00

$29.99

16

PIN,DOWEL (603)

93603-12007-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

HOLDER (R.H)

304-15128-00-00

Unavailable

19

SCREW, PAN

98507-08010-00

Unavailable

20

HOLDER, CLUTCH CABLE

401-15441-02-00

Unavailable

21

BOLT, HEXAGON

97017-06012-00

Unavailable
