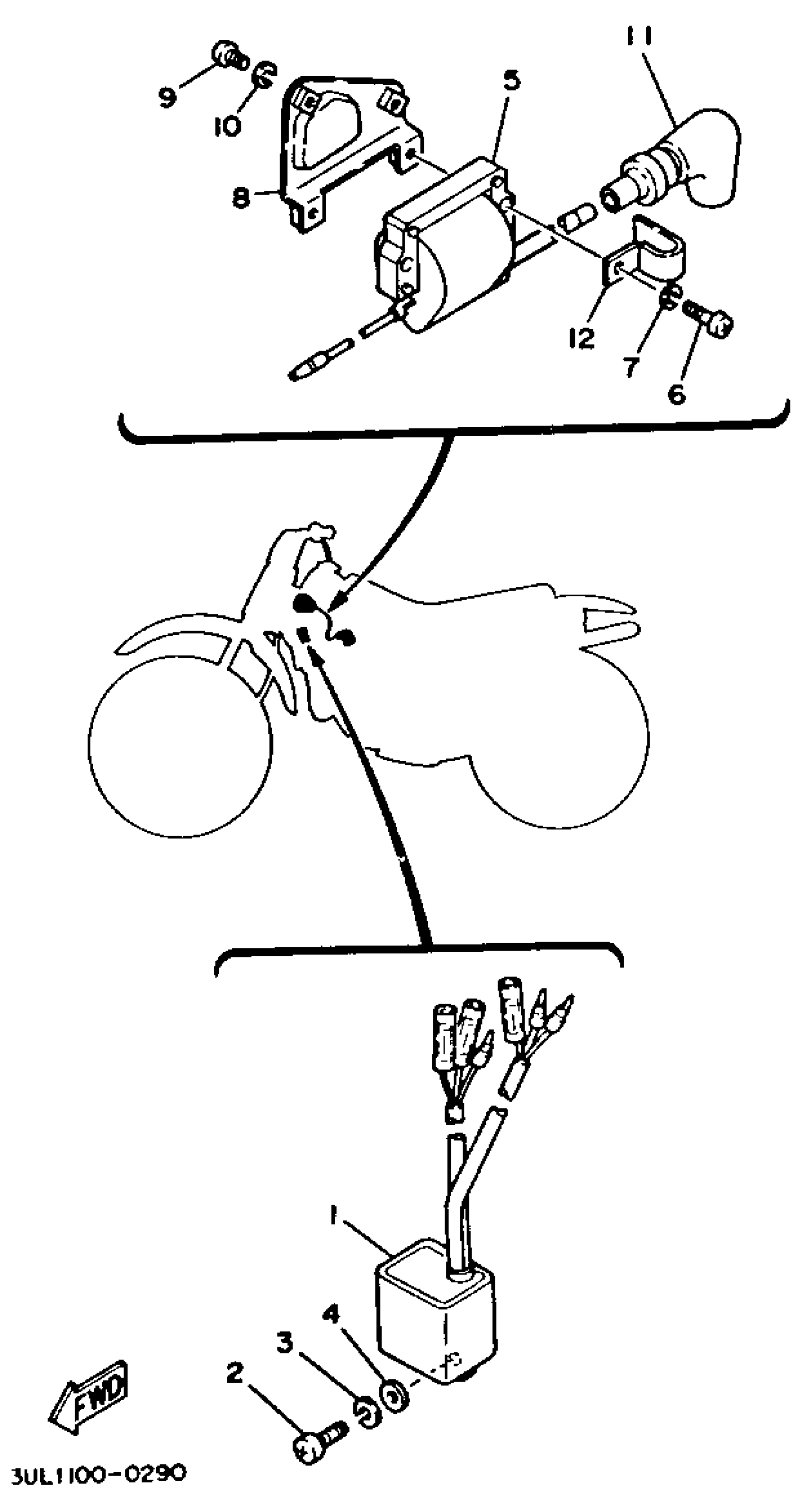

Yamaha RT100F (RT100) 1994 ELECTRICAL 1 Diagram

#

Description

Price

1

C.D.I. UNIT ASSEMBLY

3T0-85540-20-00

Unavailable

2

SCREW, PAN HEAD

98580-06016-00

Unavailable

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

IGNITION COIL ASSY

355-82310-40-00

Unavailable

6

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

7

WASHER, SPRING

92995-06100-00

Unavailable

8

BRACKET, IGNITION COIL

336-82316-01-00

Unavailable

9

SCREW, PAN

98517-06012-00

$3.78

10

WASHER, SPRING

92995-06100-00

Unavailable

11

PLUG CAP ASSY

8DG-82370-00-00

$49.99

12

CLAMP 363154850100

90462-05005-00

Unavailable
