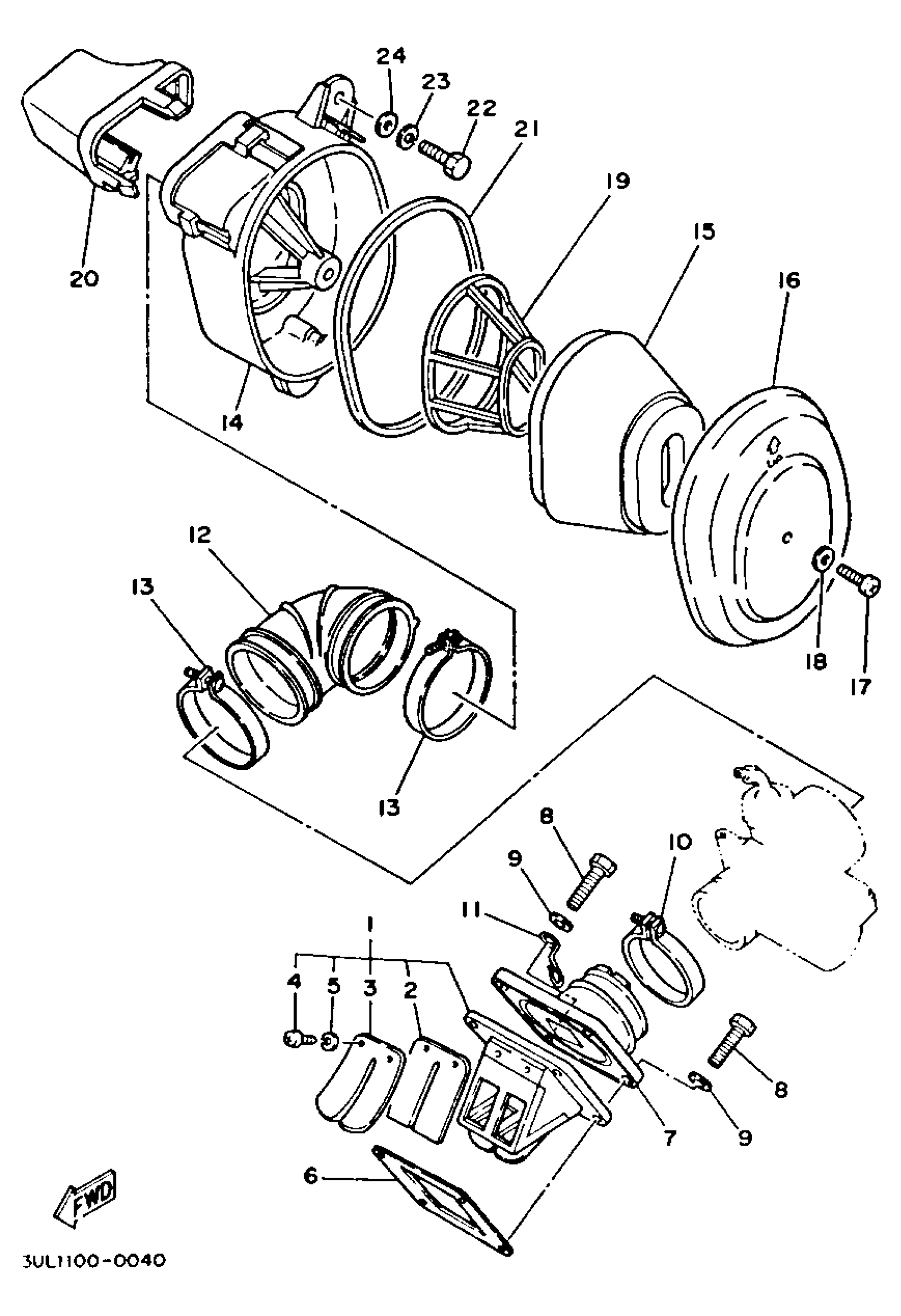

Yamaha RT100F (RT100) 1994 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASSY

53V-13610-00-00

$172.99

2

VALVE, REED

314-13613-01-00

Unavailable

3

. STOPPER, REED VALVE

10X-13616-00-00

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

GASKET, VALVE SEAT

87A-13621-00-00

$8.99

7

JOINT, CARBURETOR

560-13565-00-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

CLAMP, HOSE (5H0)

90460-43179-00

$19.99

11

UNAVAILABLE IN PRICE BOOK

90462-20029-00

Unavailable

12

JOINT, AIR CLEANER 1

3A3-14453-02-00

$16.49

13

CLAMP HOSE 304144550000

90460-51059-00

$16.99

14

CASE, AIR CLEANER 1

1T9-14411-00-00

Unavailable

15

ELEMENT ASY

1T9-14450-01-00

$12.99

16

CAP, CLEANER CASE 1

1T9-14412-00-00

Unavailable

17

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

$2.80

19

GUIDE

1T9-14458-00-00

Unavailable

20

DUCT

1T9-14437-00-00

Unavailable

21

SEAL

51Y-14462-00-00

Unavailable

22

BOLT, HEXAGON

97017-06020-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLATE

90201-06380-00

Unavailable
