1993 Yamaha RT100 (RT100E) Handle Switch-Lever Diagram

← All diagrams

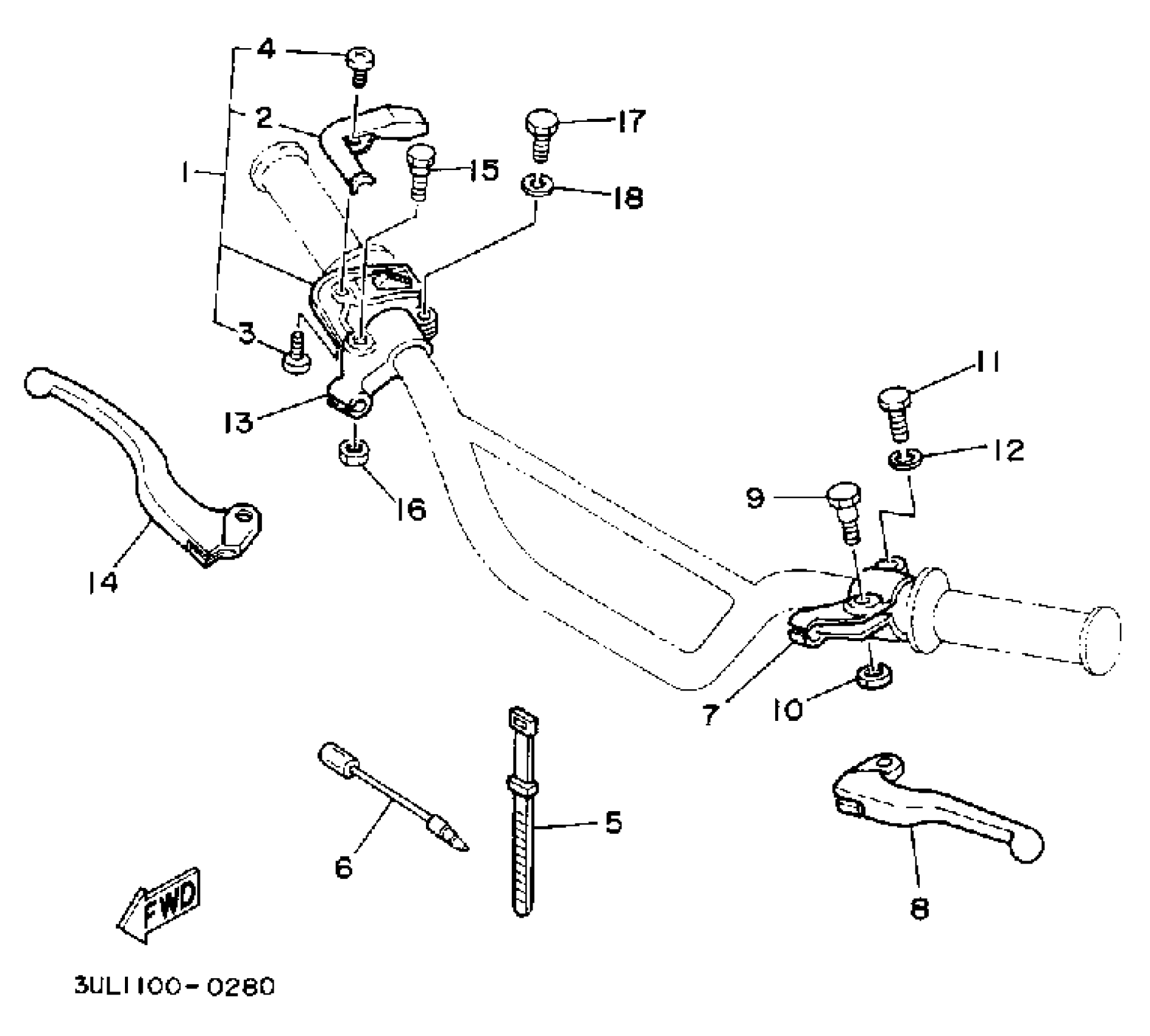

Find the part on the Handle Switch-Lever diagram for your 1993 Yamaha RT100 (RT100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha RT100 (RT100E) Handle Switch-Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH, HANDLE 1

47J-83976-01-00

1
Out of stock

2

. CAP 1

33G-83956-01-00

1
Out of stock

3

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

4

SCREW, BINDING

98907-04008-00

1
Out of stock

5

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

6

WIRE, LEAD

558-82116-00-00

—
Out of stock

7

HOLDER, LEVER (L.H)

214-82911-01-00

1

$48.32

In stock

8

LEVER 1

23X-83912-02-00

1

$21.46

In stock

9

BOLT(1FG)

90109-06798-00

1
Out of stock

10

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

11

BOLT

97095-06022-00

1
Out of stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

HOLDER, LEVER (R.H)

233-82921-31-00

1

$58.60

In stock

14

LEVER R

23X-83922-01-00

1

$21.74

In stock

15

BOLT(1FG)

90109-06798-00

1
Out of stock

16

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

17

BOLT

97095-06022-00

1
Out of stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
