1993 Yamaha RT100 (RT100E) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1993 Yamaha RT100 (RT100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

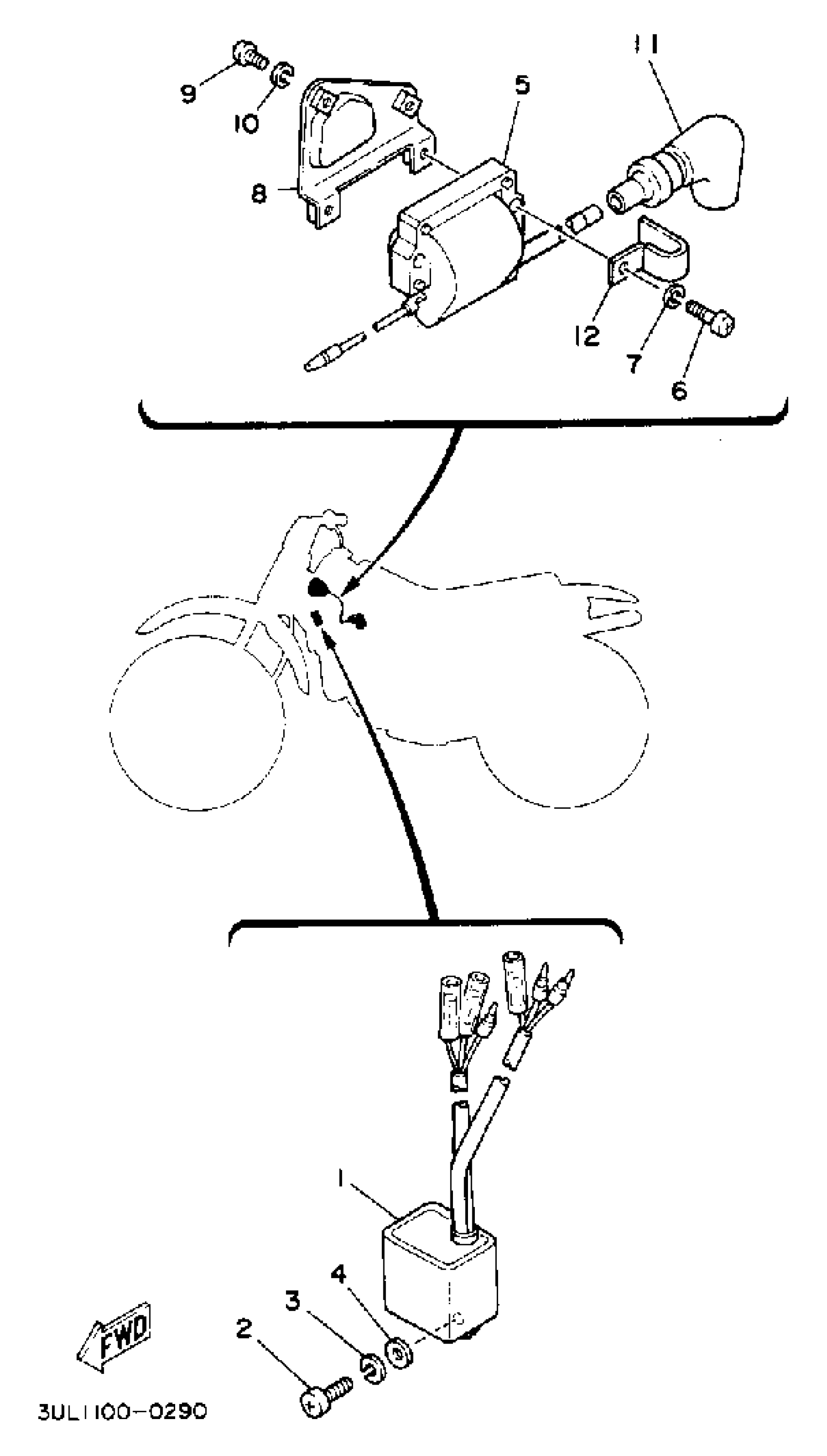

1993 Yamaha RT100 (RT100E) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSEMBLY

3T0-85540-20-00

1
Out of stock

2

SCREW, PAN HEAD

98580-06016-00

1

$2.90

In stock

3

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

IGNITION COIL ASSY

355-82310-40-00

—

$182.78

In stock

6

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

BRACKET, IGNITION COIL

336-82316-01-00

1
Out of stock

9

SCREW, PAN

98517-06012-00

1

$3.14

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

12

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock
