1993 Yamaha RT100 (RT100E) Cylinder Head Diagram

← All diagrams

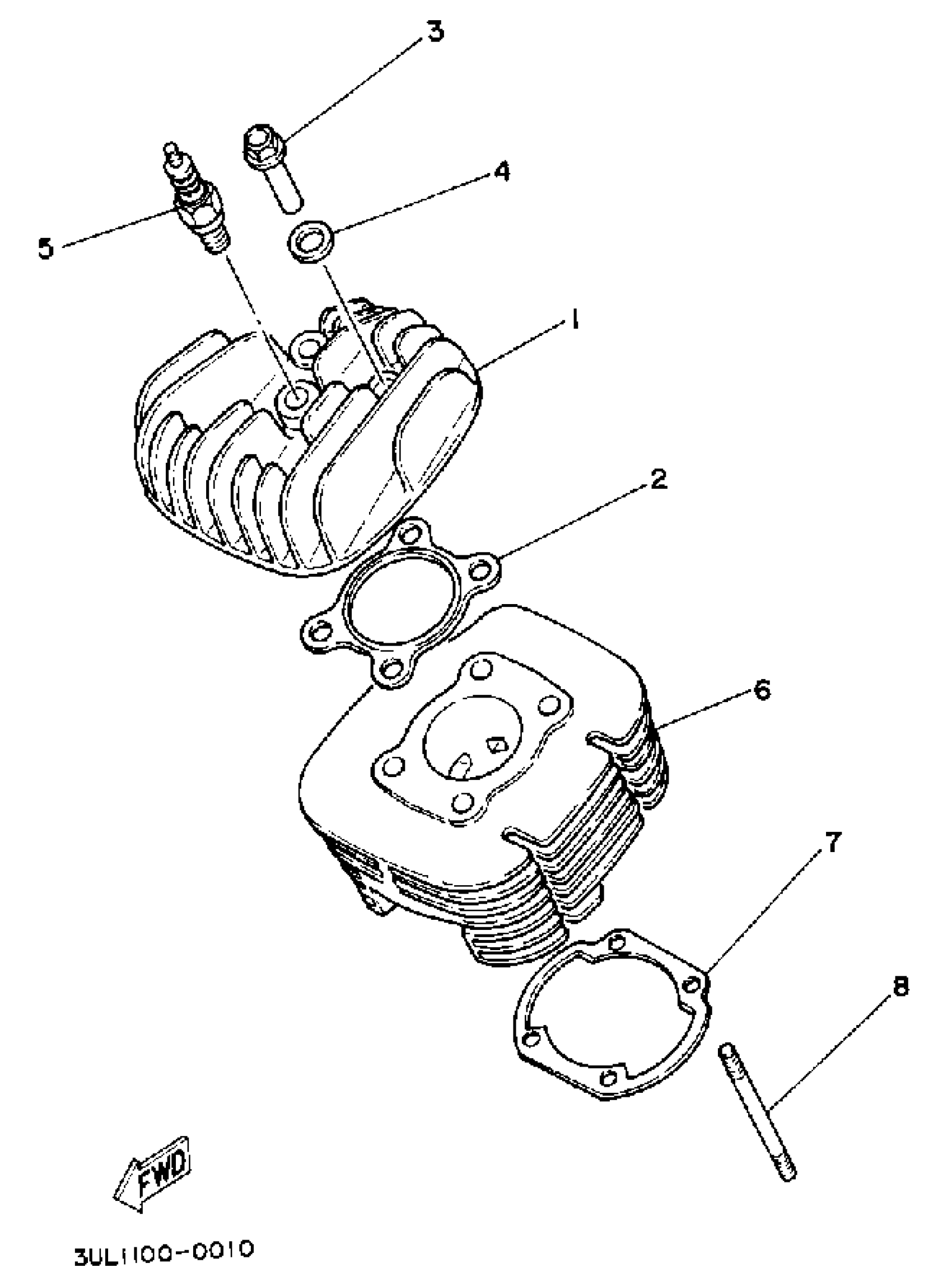

Find the part on the Cylinder Head diagram for your 1993 Yamaha RT100 (RT100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha RT100 (RT100E) Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

1T9-11111-00-00

1
Out of stock

2

GASKET, CYLINDER HEAD

304-11181-70-00

1

$22.77

In stock

3

NUT (3V6)

90179-08303-00

1

$7.14

In stock

4

WASHER PLATE 278111750000

90201-12362-00

1

$6.42

In stock

5

B7ES NGK SPLUG 4PK

B7E-S0000-00-00

1
Out of stock

6

CYLINDER 1

3A3-11311-01-00

1
Out of stock

7

GASKET, CYLINDER

3UL-11351-00-00

—

$6.17

In stock

8

BOLT STUD 276113610000

90116-08065-00

1
Out of stock
