1993 Yamaha RT100 (RT100E) Crankshaft-Piston Diagram

← All diagrams

Find the part on the Crankshaft-Piston diagram for your 1993 Yamaha RT100 (RT100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

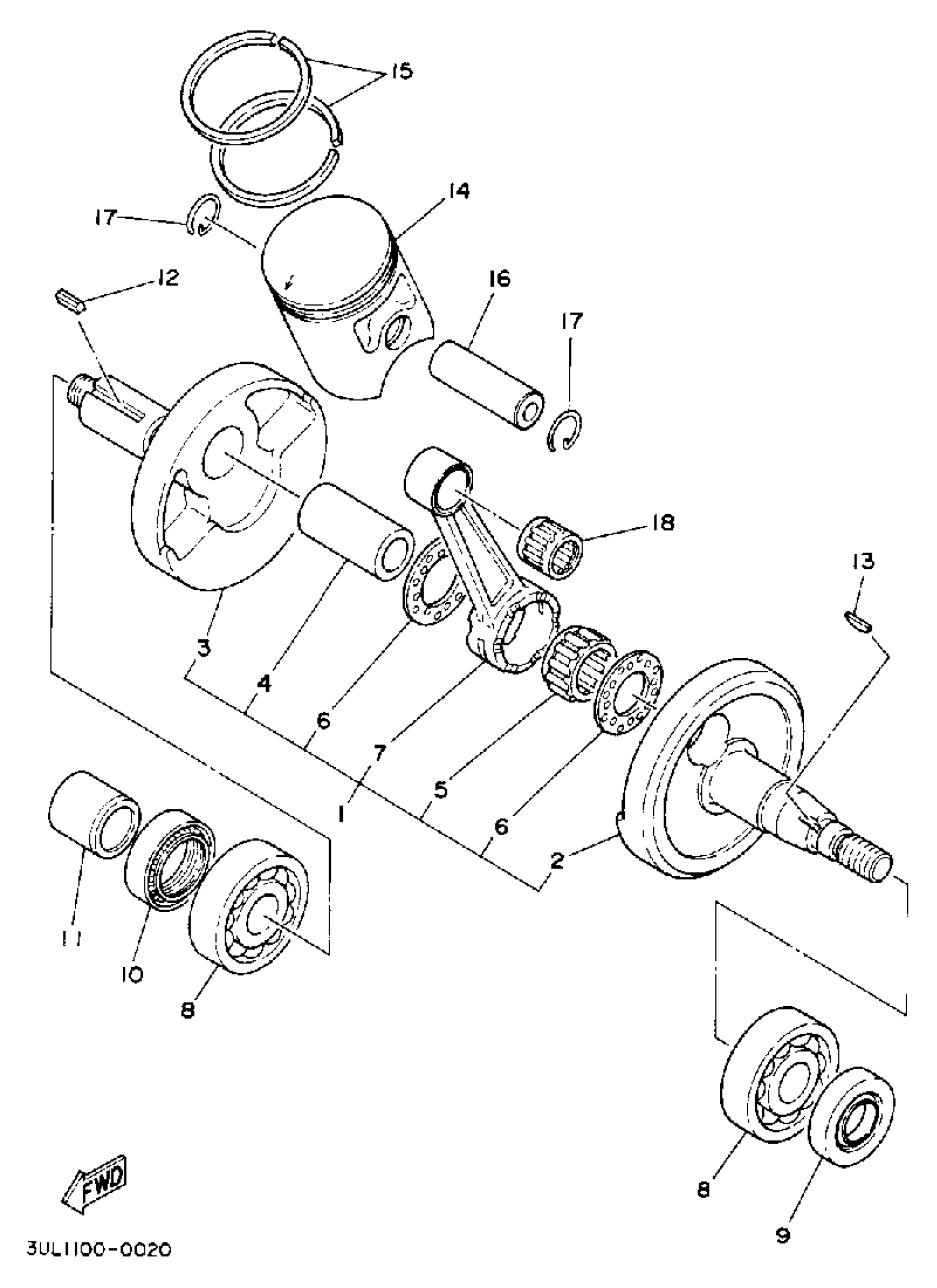

1993 Yamaha RT100 (RT100E) Crankshaft-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

558-11400-00-00

1
Out of stock

2

CRANK (L.H)

558-11412-00-00

—

$83.04

In stock

3

CRANK 2

(558-11422-00-00)

1
Out of stock

4

PIN, CRANK

5E2-11681-00-00

1

$28.66

In stock

5

BRG,CYL-CAL ROLLER 16G TM

93310-422E7-00

—

$39.02

In stock

6

WASHER (29L)

90209-22248-00

—
Out of stock

7

ROD, CONNECTING

1M7-11651-00-00

1

$106.31

In stock

8

1

$54.91

In stock

9

OIL SEAL(4BA)

93102-20447-00

1
Out of stock

10

OIL SEAL (28X40X8-132)

93103-28011-00

1

$12.05

In stock

11

—

$7.49

In stock

12

KEY, STRAIGHT 3531154600

90282-05005-00

1
Out of stock

13

KEY WOODRUFF 146115450000

90280-03017-00

1

$5.78

In stock

14

PISTON (STD)

3UL-11631-00-95

1
Out of stock

14

PISTON (STD)

3UL-11631-00-97

1
Out of stock

14

PISTON (0.25MM O/S)

3UL-11635-00-00

1
Out of stock

14

PISTON (0.50MM O/S)

3UL-11636-00-00

—

$63.94

In stock

14

PISTON (0.75MM O/S)

3UL-11637-00-00

—
Out of stock

14

PISTON (1.00MM O/S)

3UL-11638-00-00

1
Out of stock

15

PISTON RING SET (STD)

3A3-11610-00-00

—

$55.43

In stock

15

PISTON RING SET (0.25MM O/S)

3A3-11610-10-00

1
Out of stock

15

PISTON RING SET (0.50MM O/S)

3A3-11610-20-00

1
Out of stock

15

PISTON RING SET (0.75MM O/S)

3A3-11610-30-00

1
Out of stock

15

PISTON RING SET (1.00MM O/S)

3A3-11610-40-00

1
Out of stock

16

PIN, PISTON

131-11633-00-00

—

$18.28

In stock

17

CIRCLIP 131116340000

93450-15023-00

—

$5.20

In stock

18

BRG,CYL-CAL ROLLER 7G TM

93310-21403-00

—

$25.49

In stock

18

BRG,CYL-CAL ROLLER 7G TM

93310-21403-00

—

$25.49

In stock
