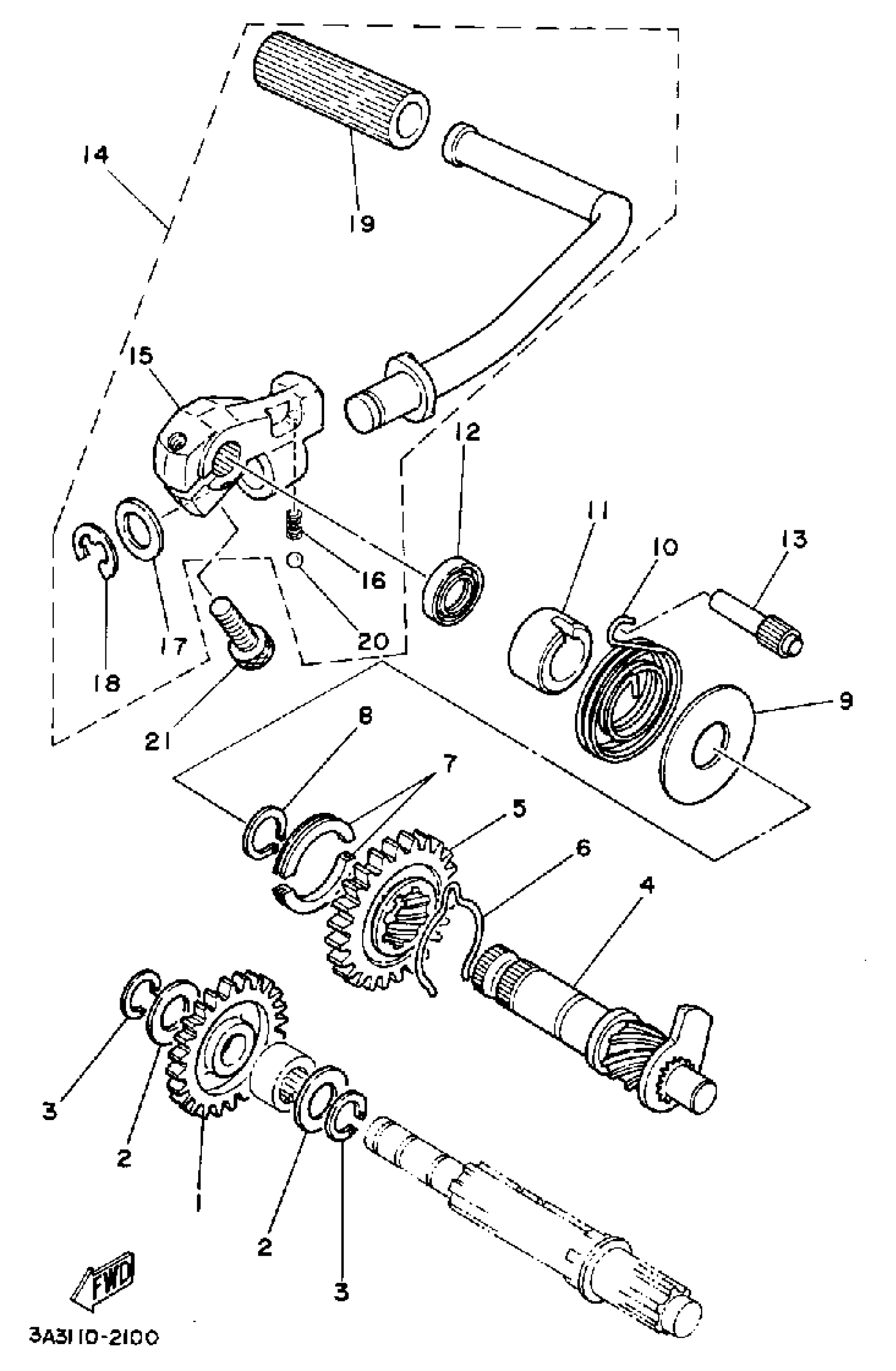

Find the part on the Starter diagram for your 1990 Yamaha RT100 (RT100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha RT100 (RT100A) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, KICK IDLE

525-15651-00-00

1

$40.08

In stock

2

SHIM, MAIN AXLE 0.5MM

137-17417-00-05

1

$4.12

In stock

3

CIRCLIP

93440-15012-00

1
Out of stock

4

KICK AXLE ASY

403-15660-02-00

1
Out of stock

5

GEAR, KICK

315-15641-00-00

—
Out of stock

6

CLIP 315156870000

90468-26048-00

1
Out of stock

7

HOLDER, KICK GEAR

248-15654-00-00

1

$6.49

In stock

8

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

9

COVER, SPRING

401-15676-00-00

1

$6.43

In stock

10

1

$5.45

In stock

11

SPACER, KICK AXLE SPRING

1W1-15666-00-00

1

$15.17

In stock

12

OIL SEAL (17X25X4-401)

93101-17062-00

1

$12.58

In stock

13

STOPPER, KICK SPRING

257-15668-00-00

1
Out of stock

14

KICK CRANK ASSEMBLY

3UL-15620-00-00

1
Out of stock

15

BOSS, KICK CRANK

1T9-15621-00-00

1
Out of stock

16

SPRING COMPRESSION278156220000

90501-12081-00

—
Out of stock

17

WASHER PLATE 278156130000

90201-15234-00

—

$6.78

In stock

18

CIRCLIP

99006-10600-00

—

$6.91

In stock

19

COVER, KICK LEVER

156-15618-01-00

—

$6.43

In stock

20

BALL (12R)

93507-32031-00

—
Out of stock

21

BOLT, SOCKET

91317-08025-00

—

$6.25

In stock
