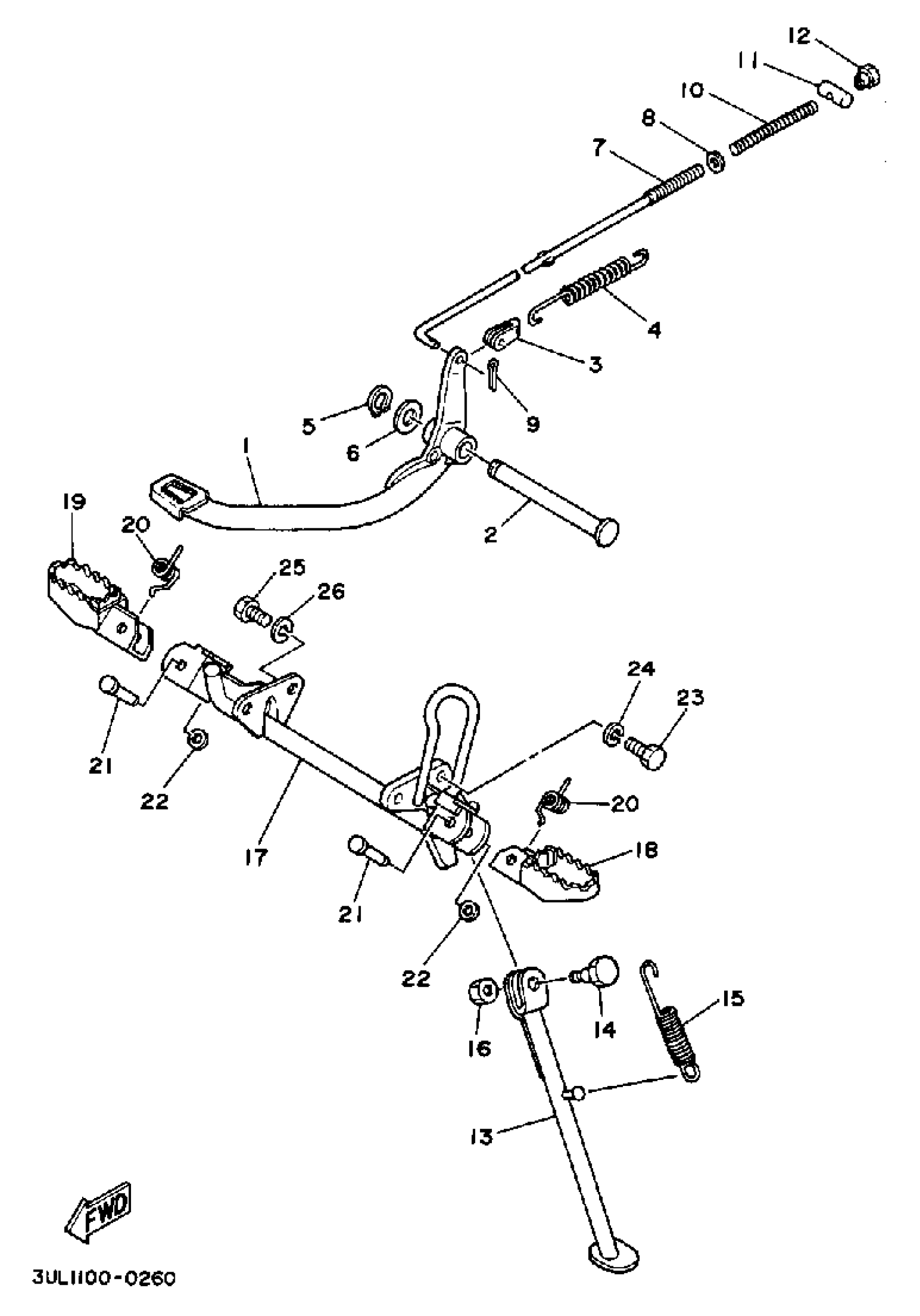

Find the part on the Stand - Footrest diagram for your 1990 Yamaha RT100 (RT100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha RT100 (RT100A) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL,BRAKE

538-27211-01-00

1
Out of stock

2

SHAFT, BRAKE PEDAL

3UL-27212-00-00

1
Out of stock

3

HOOK

1T9-27254-00-00

1
Out of stock

4

SPRING, TENSION

90506-20157-00

1
Out of stock

5

CIRCLIP(13H)

99009-14400-00

1

$2.48

In stock

6

WASHER PLATE 148272190000

90201-14215-00

1
Out of stock

7

ROD, BRAKE

1T9-27231-00-00

1
Out of stock

8

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

9

UNAVAILABLE IN PRICE BOOK

91012-00150-0

1
Out of stock

10

SPRING, (180-27236-00)

90501-10245-00

1

$6.17

In stock

11

PIN 1562723700

90249-12008-00

1

$4.70

In stock

12

NUT (25K)

90179-06411-00

1

$5.10

In stock

13

STAND, SIDE

367-27311-02-R4

1
Out of stock

14

BOLT 137273170000

90109-08031-00

1

$7.52

In stock

15

1

$8.06

In stock

16

. NUT

95380-08700-00

1

$3.07

In stock

17

FOOTREST

1T9-27451-02-R4

1
Out of stock

18

FOOTREST 1

22W-27411-01-90

—
Out of stock

19

FOOTREST 2

22W-27421-01-90

—

$29.63

In stock

20

—

$3.26

In stock

21

PIN (214-27418-00)

90243-08006-00

—

$10.68

In stock

22

—

$6.58

In stock

23

BOLT, HEXAGON

97017-08020-00

—
Out of stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

25

BOLT, HEXAGON

97017-08016-00

—
Out of stock

26

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
