1990 Yamaha RT100 (RT100A) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1990 Yamaha RT100 (RT100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

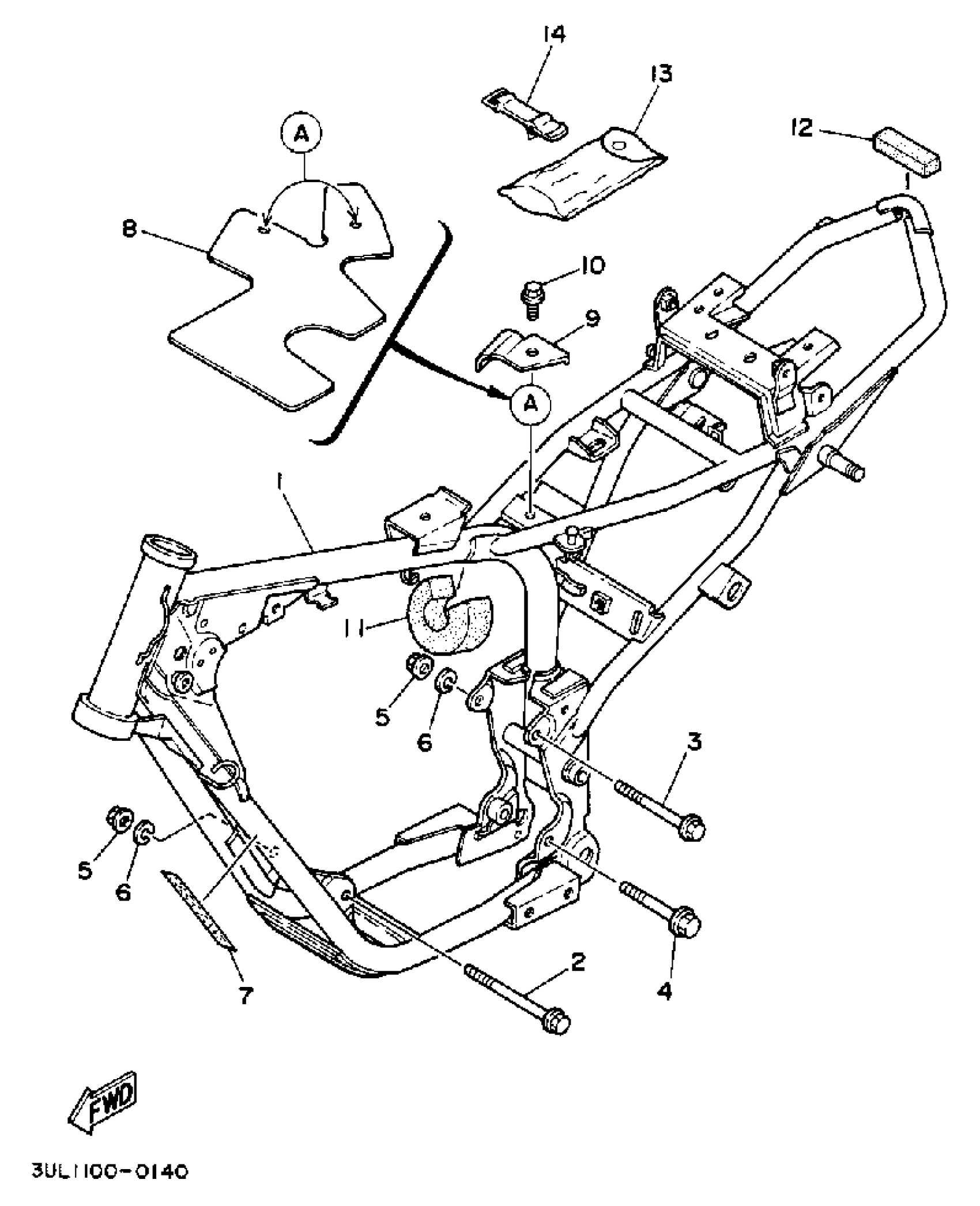

1990 Yamaha RT100 (RT100A) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

3UL-21110-00-FH

1
Out of stock

1

FRAME

3UL-21110-00-UJ

1
Out of stock

2

BOLT, FLANGE

90105-08094-00

1
Out of stock

3

BOLT (1T9)

90105-08095-00

1

$3.82

In stock

4

BOLT, FLANGE

95817-10075-00

1
Out of stock

5

NUT, FLANGE

95704-08500-00

1
Out of stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

COVER

3UL-2117F-00-00

1
Out of stock

7

PLATE

3UL-21329-00-00

1
Out of stock

7

PLATE, EPA

3UL-2179X-00-00

1
Out of stock

10

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

11

PATCH 1

8V7-21961-00-00

1

$7.05

In stock

12

DAMPER 1

83R-14425-00-00

1
Out of stock

13

TOOL KIT

353-W2810-01-00

1
Out of stock

14

BAND, TOOL

21V-21376-00-00

1

$6.38

In stock
