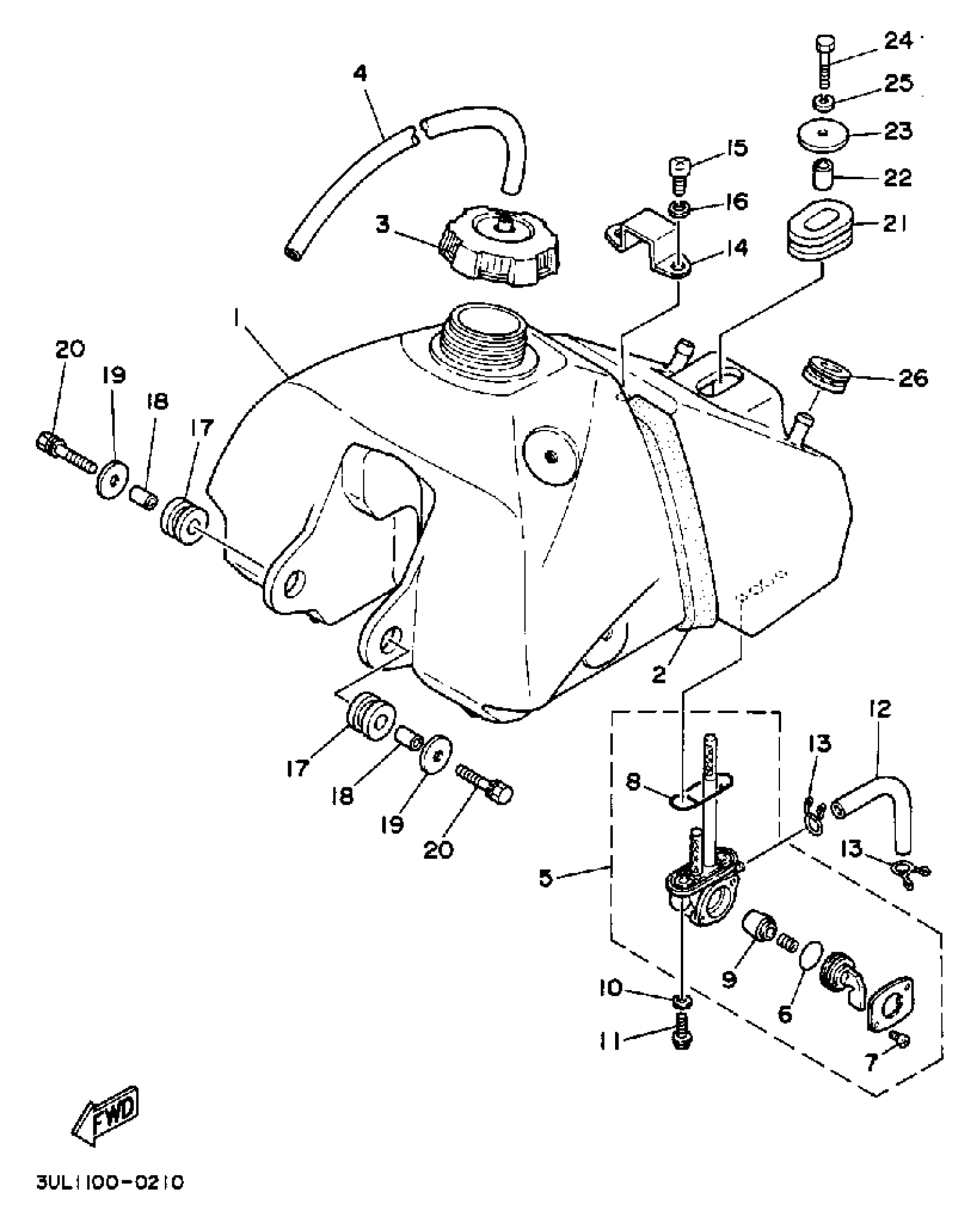

Yamaha RT100A (RT100) 3UL1 1990 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3UL-24110-00-00

Unavailable

2

DAMPER, LOCATING 1

3UL-24181-00-00

Unavailable

3

CAP ASSY

2FJ-24610-20-00

$68.99

4

HOSE (L420)

90445-092K1-00

$12.49

5

FUEL COCK ASSY 1

36R-24500-01-00

$76.99

6

SEAL, COCK

3AJ-24534-01-00

$10.99

7

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

8

. UNAVAILABLE IN PRICE BOOK

4X8-25120-00-0

Unavailable

9

VALVE PACKING

3AC-24523-00-00

$12.99

10

WASHER, PLATE(3MB)

90202-05187-00

$1.38

11

SCREW 256241430000

90149-06011-00

$5.60

12

HOSE (L420)

90445-092K1-00

$12.49

13

CLIP 101235600

90467-08003-00

$10.49

14

BRACKET, SEAT

3UL-2412F-00-00

Unavailable

15

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

GROMMET (4V1)

90480-18290-00

Unavailable

18

COLLAR (1T2)

90387-07598-00

Unavailable

19

WASHER PLATE 137241870000

90201-06072-00

Unavailable

20

BOLT, WITH WASHER (24X)

90119-06073-00

Unavailable

21

GROMMET(38W)

90480-01400-00

Unavailable

22

COLLAR (1T2)

90387-07598-00

Unavailable

23

WASHER, PLATE

90201-06090-00

Unavailable

24

BOLT, HEXAGON

97017-06030-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

GROMMET(3UL)

90480-01531-00

Unavailable
