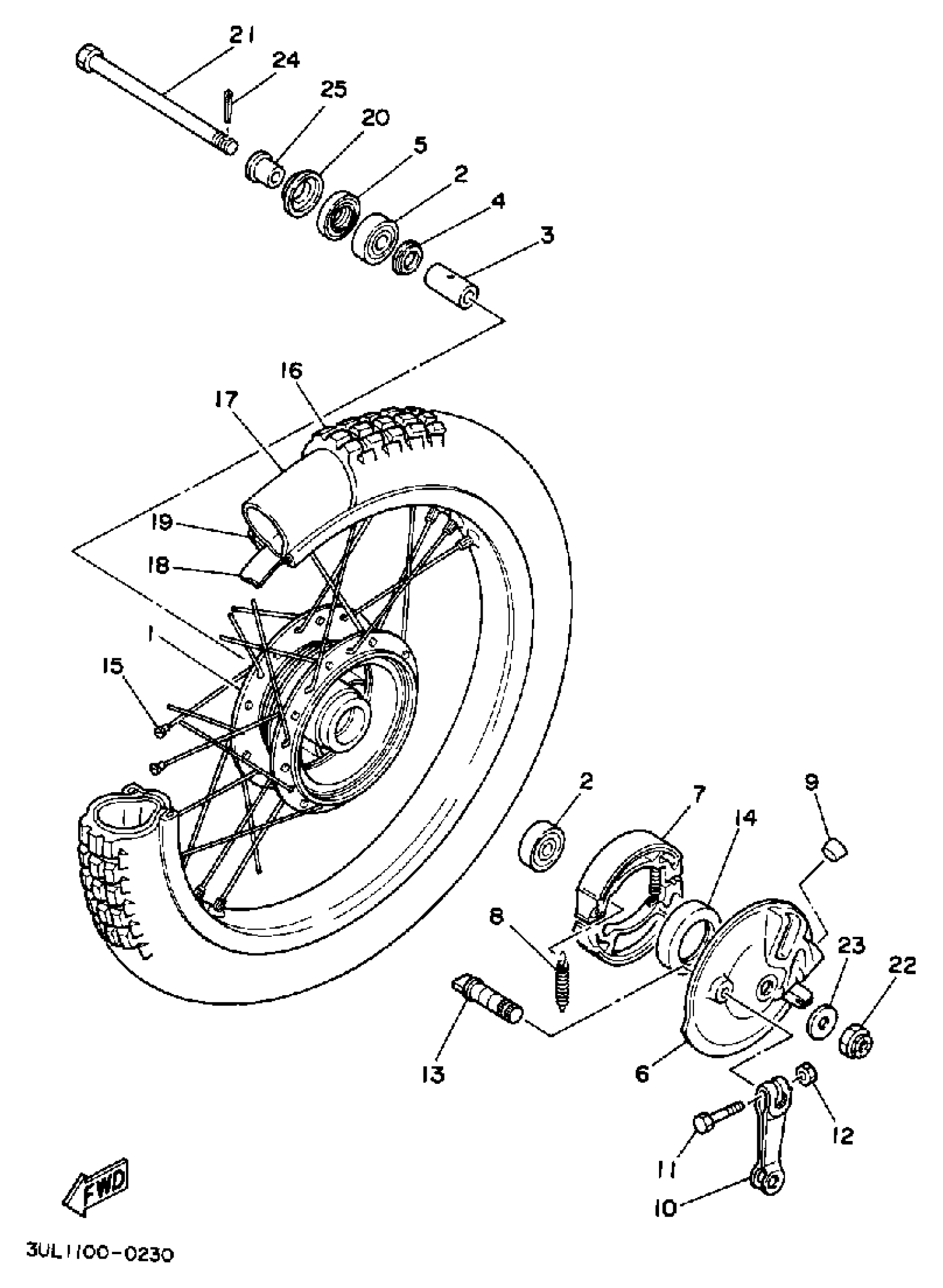

Yamaha RT100A (RT100) 3UL1 1990 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

248-25111-00-98

Unavailable

2

BEARING

93306-30102-00

$39.99

3

SPACER

90560-12138-00

Unavailable

4

FLANGE, SPACER

109-25315-00-00

$7.99

5

OIL SEAL (18X37X8-109)

93102-18008-00

$25.99

6

PLATE, BRAKE SHOE

4J8-25121-00-98

Unavailable

7

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

8

SPRING, TENSION

90506-15260-00

$8.49

9

PLUG 288251390000

90338-18014-00

Unavailable

10

LEVER, CAM SHAFT

2N3-25155-00-00

$28.99

11

BOLT, HEXAGON (538)

90101-06278-00

$2.17

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

CAMSHAFT

4GL-25351-00-00

$68.99

14

SEAL,OIL

93105-47007-00

$15.99

15

SPOKE SET, FRONT

276-25104-40-00

Unavailable

16

TIRE (2.50-18)

94125-18369-00

Unavailable

17

TUBE (5H5)

94225-18194-00

Unavailable

18

BAND, RIM (2J4)

94340-18086-00

Unavailable

19

RIM (1.40-18)

94414-18545-00

Unavailable

20

COVER HUB DUST

481-25118-01-00

Unavailable

21

SHAFT, WHEEL (462)

90102-12015-00

Unavailable

22

NUT,CASTLE

90171-12058-00

Unavailable

23

WASHER, PLATE

90201-12047-00

Unavailable

24

PIN, COTTER

91490-30030-00

Unavailable

25

COLLAR

90387-12616-00

Unavailable
