1990 Yamaha RT100 (RT100A) Exhaust Diagram

← All diagrams

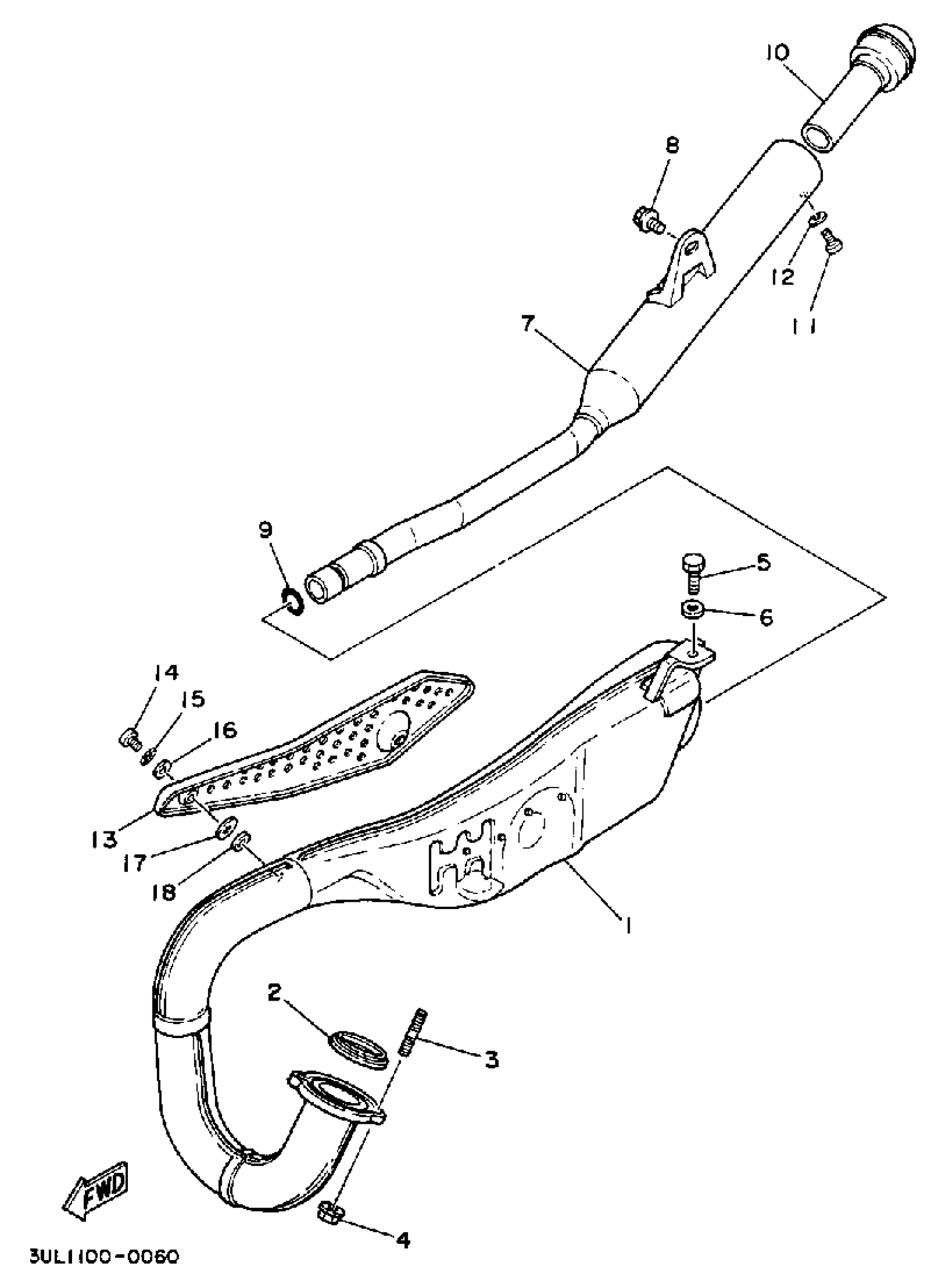

Find the part on the Exhaust diagram for your 1990 Yamaha RT100 (RT100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha RT100 (RT100A) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASY L

3UL-14610-01-00

1
Out of stock

2

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

3

BOLT STUD 306111790000

90116-06016-00

1

$3.49

In stock

4

NUT, U FLANGE

95604-06200-00

1

$2.35

In stock

5

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

6

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

7

SILENCER, EXHAUST

3UL-14753-00-00

1
Out of stock

8

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

9

O-RING (538)

93210-16290-00

—

$6.82

In stock

10

PIPE, OUTLET

438-14752-00-00

1
Out of stock

11

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

PROTECTOR, MUFFLER 1

3UL-14718-00-00

1
Out of stock

14

SCREW, BINDING

98907-06010-00

1

$1.49

In stock

15

WASHER, WAVE(3RW)

90206-06090-00

1

$6.17

In stock

16

WASHER, PLATE(3MB)

90202-05187-00

—

$1.32

In stock

17

WASHER, PROTECTOR

3HK-14766-02-00

—

$3.77

In stock

18

WASHER, PLATE

90201-06020-00

—

$6.28

In stock
