1990 Yamaha RT100 (RT100A) Crankcase Diagram

← All diagrams

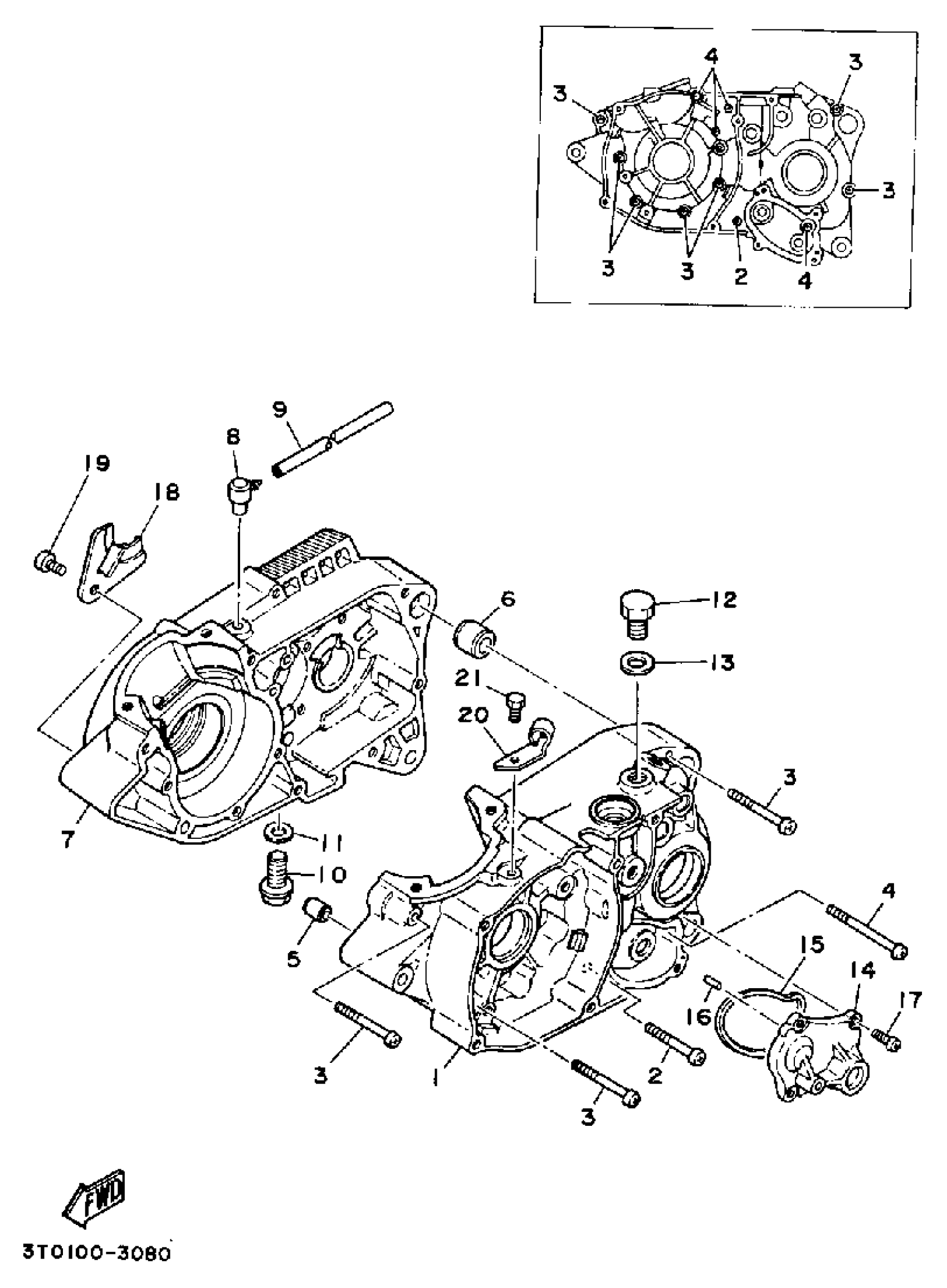

Find the part on the Crankcase diagram for your 1990 Yamaha RT100 (RT100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha RT100 (RT100A) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

1T9-15111-00-00

1
Out of stock

2

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

3

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

4

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

5

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

6

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

7

CRANKCASE 2

1T9-15121-01-00

1
Out of stock

8

BREATHER

583-15371-00-00

1
Out of stock

9

HOSE (L1050)

90445-072G8-00

1

$23.46

In stock

10

1

$6.71

In stock

11

GASKET (3JD1)

90430-12207-00

1

$6.77

In stock

12

PLUG, STRAIGHT SCREW

90340-12004-00

1
Out of stock

13

WASHER, PLATE

90201-12790-00

1

$6.85

In stock

14

COVER, SHIFTER

437-15419-01-00

1

$77.32

In stock

15

RING, RUBBER

401-15449-00-00

1

$25.49

In stock

16

PIN,DOWEL (603)

93603-12007-00

—

$1.60

In stock

17

SCREW, PAN

98507-06014-00

—

$6.18

In stock

18

HOLDER (R.H)

304-15128-00-00

—

$5.80

In stock

19

SCREW, PAN

98507-08010-00

—
Out of stock

20

HOLDER, CLUTCH CABLE

401-15441-02-00

1
Out of stock

21

BOLT (661)

97013-06012-00

—

$4.71

In stock
