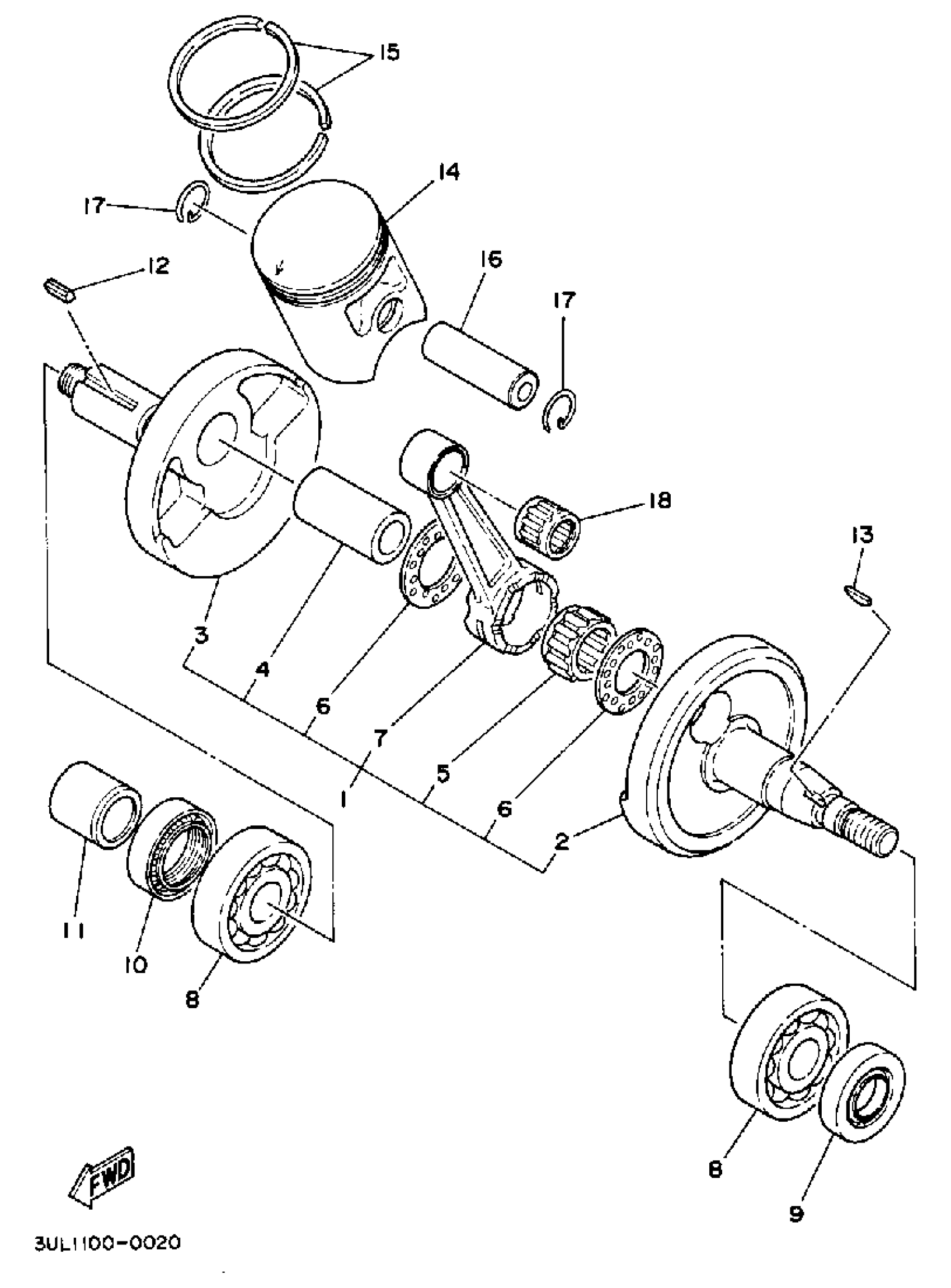

Yamaha RT100A (RT100) 3UL1 1990 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

558-11400-00-00

Unavailable

2

CRANK (L.H)

558-11412-00-00

Unavailable

3

CRANK 2

(558-11422-00-00)

Unavailable

4

PIN, CRANK

5E2-11681-00-00

$32.99

5

BRG,CYL-CAL ROLLER 16G TM

93310-422E7-00

Unavailable

6

WASHER (29L)

90209-22248-00

Unavailable

7

ROD, CONNECTING

1M7-11651-00-00

$114.99

8

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

$65.99

9

OIL SEAL(4BA)

93102-20447-00

$11.49

10

OIL SEAL (28X40X8-132)

93103-28011-00

$14.99

11

COLLAR, DISTANCE 2761613600

90387-20175-00

Unavailable

12

KEY, STRAIGHT 3531154600

90282-05005-00

$10.49

13

KEY WOODRUFF 146115450000

90280-03017-00

$7.49

14

PISTON (STD)

3UL-11631-00-95

Unavailable

14

PISTON (STD)

3UL-11631-00-97

Unavailable

14

PISTON (0.25MM O/S)

3UL-11635-00-00

Unavailable

14

PISTON (0.50MM O/S)

3UL-11636-00-00

Unavailable

14

PISTON (0.75MM O/S)

3UL-11637-00-00

Unavailable

14

PISTON (1.00MM O/S)

3UL-11638-00-00

Unavailable

15

PISTON RING SET (STD)

3A3-11610-00-00

Unavailable

15

PISTON RING SET (0.25MM O/S)

3A3-11610-10-00

Unavailable

15

PISTON RING SET (0.50MM O/S)

3A3-11610-20-00

Unavailable

15

PISTON RING SET (0.75MM O/S)

3A3-11610-30-00

Unavailable

15

PISTON RING SET (1.00MM O/S)

3A3-11610-40-00

Unavailable

16

PIN, PISTON

131-11633-00-00

Unavailable

17

CIRCLIP 131116340000

93450-15023-00

Unavailable

18

BRG,CYL-CAL ROLLER 7G TM

93310-21403-00

Unavailable

18

BRG,CYL-CAL ROLLER 7G TM

93310-21403-00

Unavailable
