Partiron

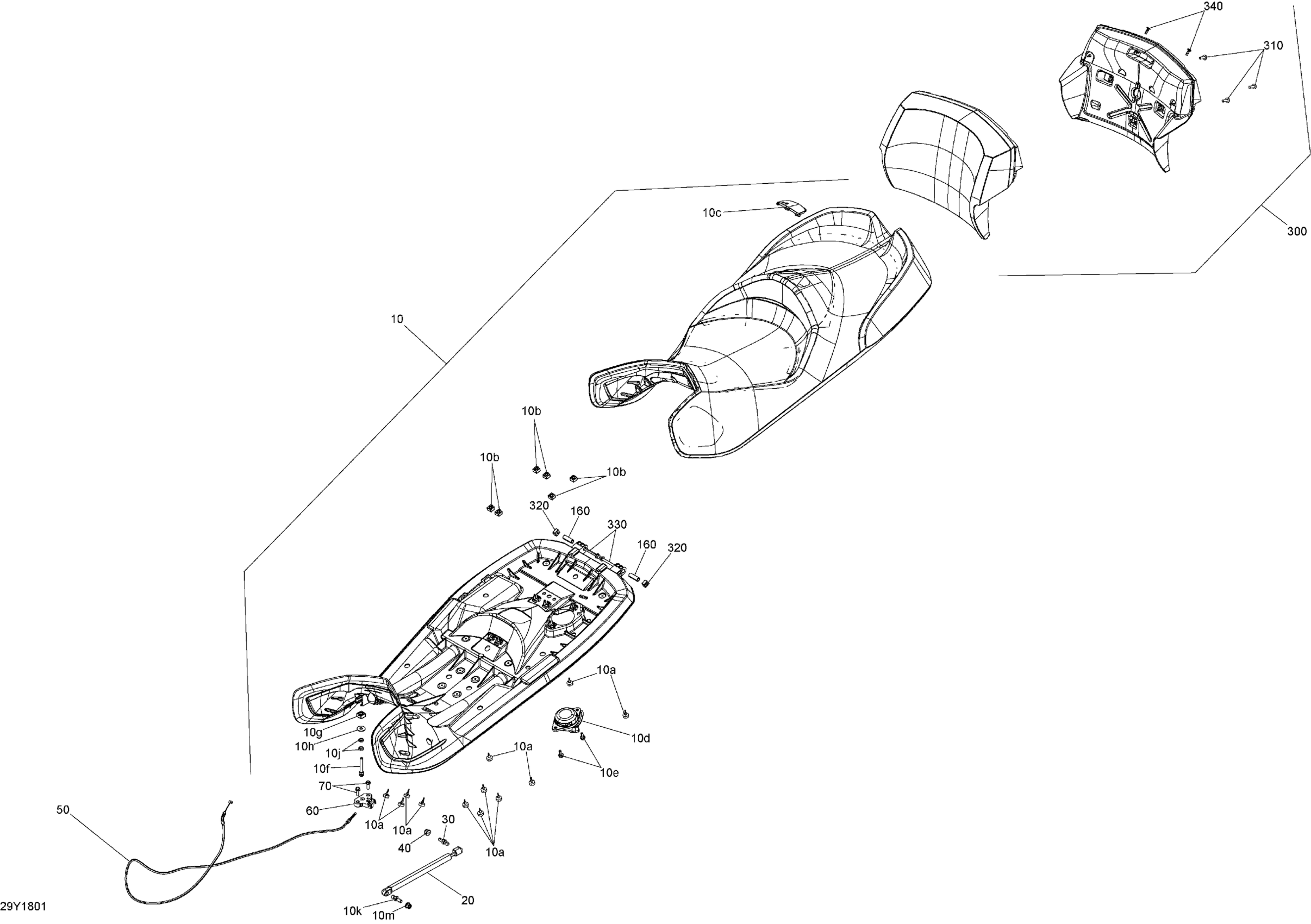

Can-Am RT LTD SE6, 2018 Seat Diagram

#

Description
Price

10

Seat 2 Places Ass'y | Package 10TH

708002540

$690.00

10

Seat 2 Places Ass'y | Model with Package SPE

708002541

$690.00

10a

Rubber Stopper

708000759

$3.61

10b

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

10b1

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

10b2

Elastic Stop Nut M6, Brass

232561200

$3.51

10c

Black Cap

708001633

$11.00

10d

Passenger Detection Switch

710008103

$72.28

10e

Hex. Flange Screw M6 X 16

207661644

$0.61

10f

Lug

705002223

$26.00

10g

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

10g1

Hex. Elastic Nut M8 Brass

232581200

$1.29

10h

Flat Washer 8 mm

234082410

$1.11

10j

Hex. Jam Nut M8

232180600

$0.56

10k

Ball Head Stud

250300039

$6.15

10m

Hex. Flange Elastic Nut M8

233281414

$1.14

20

Gaz Shock

708000658

$84.00

30

Ball Head Stud

250300039

$6.15

40

Hex. Flange Elastic Nut M8

233281414

$1.14

50

Seat Cable

708001743

$54.00

60

Latch

705007379

$29.00

70

Hexagonal Head Screw

210262050

$1.74

160

Spacer

708000664

$6.00

300

KIT BACKREST PASSENGER ASSY - Call your local BRP dealership | Package LTD

219800455

Unavailable

300

BACKREST PASSENGER ASSY - Call your local BRP dealership | Package 10TH

708002690

Unavailable

310

Torx Screw K50 X 16

250000720

$1.39

320

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

320a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

320b

Hex. Elastic Stop Nut M6

232561600

$0.92

330

Hex. Flange Screw M6 X 60

250000778

$3.61

340

Torx Screw K50 X 16

250000720

$1.39
