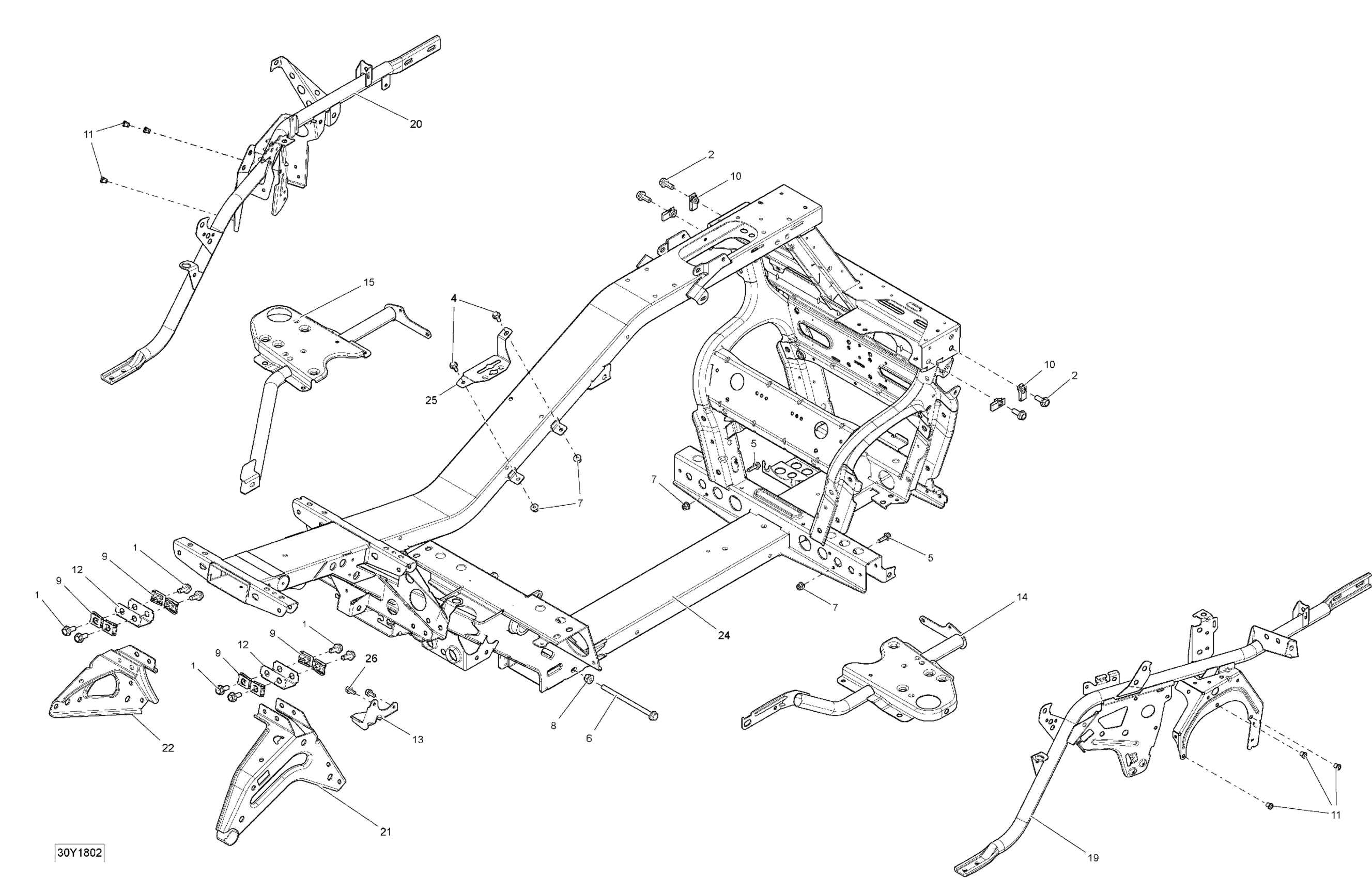

Can-Am RT LTD SE6, 2018 09- Frame Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

2

Hex Screw Washer Head M8 X 20

207582054

$3.17

4

Torx Head Screw M6 X 16

250000717

$2.11

5

Hex. Flange Screw M6 X 20

207662044

$2.00

6

Hex. Flange Screw M8 X 130

230683034

$7.51

7

Hex. Flange Elastic Nut M6

233261466

$2.00

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Hex. Flange Elastic Nut M8

233281414

$1.47

9

Panel Nut M8 X 1.25

250100069

$4.29

10

Panel Nut M8 X 1.25

250100118

$2.09

11

Insert M5 X 0.8

293450268

$2.09

12

U-Bracket

705202484

$19.49

13

Stopper Swing Arm

705202587

$28.99

14

RH Painted Lower Lateral Support

705202625

$104.99

15

LH Painted Lower Lateral Support

705202626

$85.99

19

RH Painted Lateral Support Ass'y

705203016

$209.99

20

LH Painted Lateral Support Ass'y

705203017

$209.99

21

Rear Support RH

705203959

$99.99

22

Rear Support LH

705203969

$49.99

24

Frame

705204866

$1,389.99

25

Latch Support

705205078

$15.49

26

Hex. Flange Screw M6 X 12

210261250

$1.90
