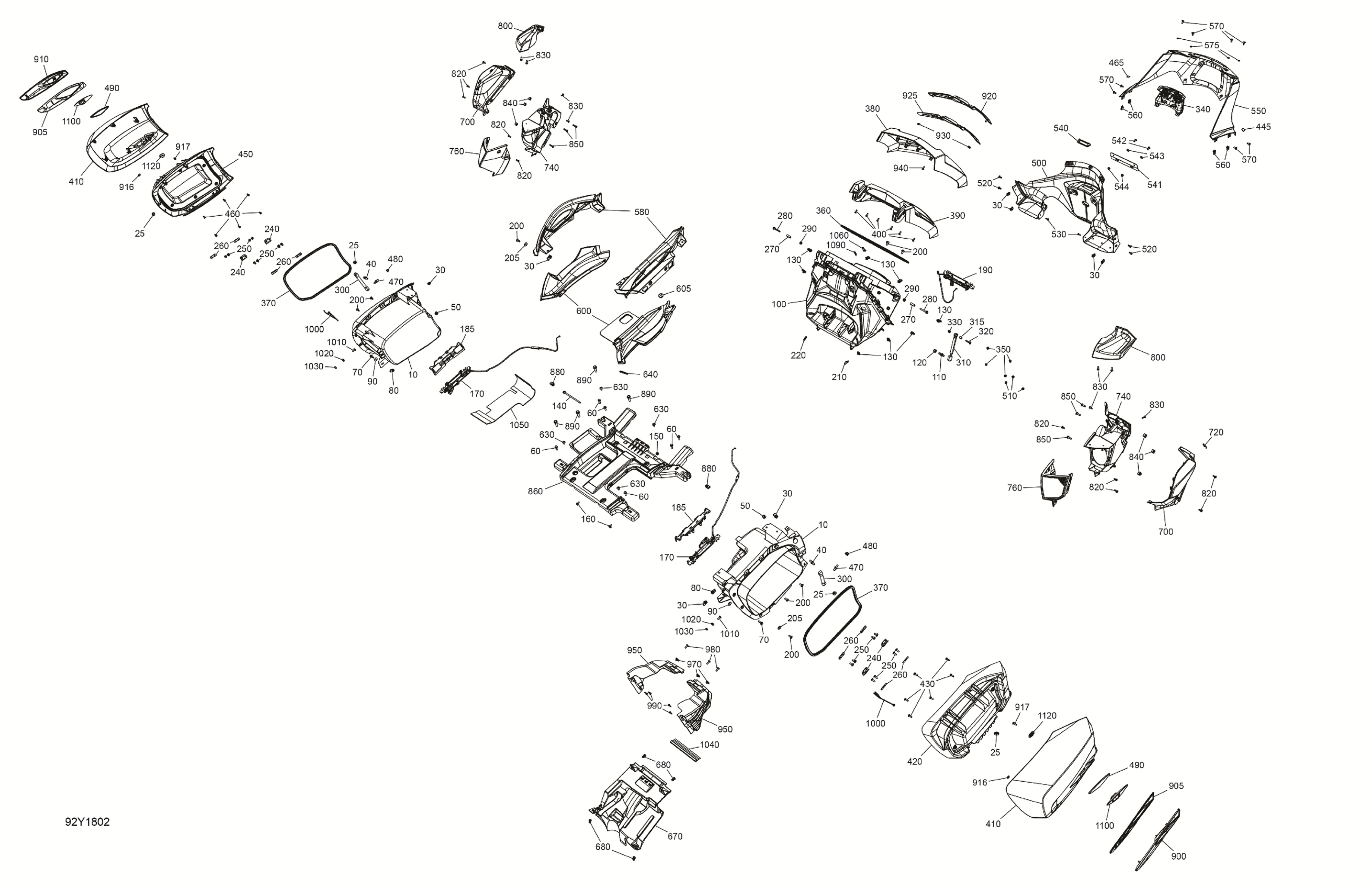

Can-Am RT LTD SE6, 2018 Cargo Diagram

Cargo Box Inner LH

708301016

$93.00

Cargo Box Inner RH

708301017

$93.00

Grommet

708301025

$5.52

Panel Nut M6 X 1.0

250100198

$1.73

Ball Head Stud

250300016

$11.69

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Flat Washer

224061201

$1.11

Storage Bin Ass'y Rear

708301798

$500.00

Était/Was 414843500 Velcro #8MVA PSA 1"

219704406

$12.72

Ball Head Stud

250300039

$6.15

Hex. Flange Elastic Nut M8

233281414

$1.14

Panel Nut M6 X 1.0

250100198

$1.73

Hex. Flange Screw M6 X 130

230663084

$2.77

Hex. Flange Elastic Nut M6

233261494

$1.26

Hex. Flange Screw M6 X 12

207661244

$1.70

Latch Ass'y LH

708301640

$155.00

Latch Ass'y RH

708301641

$155.00

Latch Protector

708300514

$16.00

Center Latch

708301642

$155.00

Torx Truss M8 X 16

250000881

$1.74

Flat washer M6

250200164

$0.83

Tie-Rap 180 mm

414115200

$0.09

Tie-Rap 180 mm

414115200

$0.09

Hinge

708300006

$26.00

Torx Truss M8 X 16

250000881

$1.74

Back Plate Support

708300129

$11.00

Spacer

708300394

$15.00

Hex. Flange Screw M6 X 45

207664544

$1.07

Flange Elastic Nut M6

233261434

$3.61

Gaz Shock

708300011

$80.00

Gaz Shock

708300383

$80.00

Spacer

708300384

$14.00

Torx Truss Screw M6 X 30

250000843

$1.74

Domed Nut M6

232361493

$1.77

Main Control (WO lock cylinder)

708302620

$165.00

Torx Truss Screw M6 X 10

250000349

$7.31

Seal, 1PC = 3M

293830188

$37.66

Seal, 1PC = 3M

293830188

$37.66

Cover Trunk Rear, Vegas White B-313 | Model-White

708300700

$310.00

Ivory Central Cover | Ivory Model

708301731

$285.00

Asphalt Gray, Cover Trunk Rear | Asphalt Gray Model

708301806

$280.00

Oxford Blue Metallic, Rear Trunk Cover | Model Oxford Blue

708302496

$310.00

Jet Black, Central Cover | Model Jet Black

708302497

$155.00

Inner Cover

708300678

$90.00

Torx Screw K50 X 16

250000720

$1.39

Cover Trunk LH, Vegas White B-313 | Model-White

708300693

$320.00

Cover Trunk LH, Vegas White B-313 | Model-Japan

708301190

$320.00

Bare, LH Trunk Cover | Model RT with Color Orbital Blue

708300719

$140.00

Asphalt Gray, LH Trunk Cover | Asphalt Gray Model Except Japan

708302278

$320.00

Asphalt Gray, LH Trunk Cover | Asphalt Gray Model Japan

708302279

$320.00

Oxford Blue Metallic, LH Trunk Cover | Model Oxford Blue

708302498

$320.00

Jet Black Met., LH Cover | Model Jet Black Except Japan

708302499

$320.00

Bare, LH Trunk Cover | Japan Model Jet Black

708301021

$140.00

Cover Interior LH

708301023

$84.00

Torx Screw K50 X 16

250000720

$1.39

Cover Trunk RH, Vegas White B-313 | Model-White

708300692

$320.00

Cover Trunk RH, Vegas White B-313 | Model-Japan

708301191

$320.00

Bare, RH Trunk Cover | Model RT with Color Orbital Blue

708300721

$140.00

Asphalt Gray, RH Trunk Cover | Asphalt Gray Model Except Japan

708302280

$320.00

Asphalt Gray, Trunk Cover | Asphalt Gray Model Japan

708302281

$320.00

Bare, RH Trunk Cover | Japan Model Jet Black

708301019

$140.00

Jet Black Met., RH Cover | Model Jet Black Except Japan

708302502

$320.00

Oxford Blue Metallic, RH Trunk Cover | Model Oxford Blue

708302503

$320.00

Lateral Console Foam

518327441

$7.00

Cover Interior RH

708301022

$84.00

Torx Screw K50 X 16

250000720

$1.39

Lateral Console Foam

518327441

$7.00

Ball Head Stud

250300016

$11.69

Hex. Flange Elastic Nut M8

233281414

$1.14

Amber, Lateral Reflector

705002423

$13.28

Red, Lateral Reflector

705003412

$13.28

Fender Rear

708302277

$205.00

Torx Truss Screw M6 X 10

250000349

$7.31

Torx Truss M8 X 16

250000881

$1.74

Torx Screw K50 X 16

250000720

$1.39

License Plate Light Support

708300177

$14.00

License Plate Support | Model-Japan

708301523

$55.00

Torx Truss M8 X 16

250000881

$1.74

Flat washer M6

250200164

$0.83

Hex. Flange Elastic Nut M6

233261494

$1.26

Bare, Rear Panel

708301558

$140.00

Ivory Rear Panel | Ivory Model

708301736

$330.00

Asphalt Gray, Rear Panel | Asphalt Gray Model

708301811

$330.00

Oxford Blue Metallic, Rear Panel | Model Oxford Blue

708302504

$310.00

Jet Black Met., Rear Panel | Model Jet Black

708302505

$310.00

Panel Nut M6 X 1.0

250100198

$1.73

Torx Truss M8 X 16

250000881

$1.74

Plastic Washer

705003207

$1.00

LH Passenger Handle Heat Ass'y | Includes 152 to 153

708300496

$143.00

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

Male Housing, 2 Circuits

710000667

$7.48

RH Passenger Handle Heat Ass'y | Includes 155 to 157

708300498

$143.00

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

Male Housing, 2 Circuits

710000667

$7.48

LH Handle Pannel

708300209

$85.00

Cap

708300405

$6.00

RH Handle Pannel

708300027

$85.00

Torx Screw M6 X 12

250000804

$1.37

Under Tail Rear Wheel Cover

708300028

$50.00

Tuflok Plastic Rivet

293150230

$1.21

Arm Cover LH, Vegas White B-313 | Model-White

708300708

$245.00

LH Rest Arm Trim | Ivory Model

708300724

$240.00

Asphalt Gray, LH Arm Cover | Asphalt Gray Model

708301813

$235.00

TRIM REST ARM LH B-257 - Call your local BRP dealership | Model Jet Black

708302506

Unavailable

Oxford Blue Metallic, LH Arm Cover | Model Oxford Blue

708302507

$130.00

Arm Cover RH, Vegas White B-313 | Model-White

708300709

$245.00

RH Arm Rest Trim | Ivory Model

708300725

$240.00

Asphalt Gray, RH Arm Cover | Asphalt Gray Model

708301814

$235.00

Jet Black Met., RH Arm Cover | Model Jet Black

708302508

Unavailable

Oxford Blue Metallic, RH Arm Cover | Model Oxford Blue

708302509

$130.00

Antenna Cap LH, Vegas White B-313 | Model-White

708300716

$16.00

Ivory LH Cap | Ivory Model

708301739

$11.00

Asphalt Gray, LH Antenna Cap | Asphalt Gray Model

708301812

$13.00

Jet Black Met., LH Cap | Model Jet Black

708302510

$2.00

Oxford Blue Metallic, LH Antenna Cap | Model Oxford Blue

708302511

$16.00

Sound Box LH

708301555

$80.00

Sound Box RH

708301556

$80.00

LH Grille Sup.

708302609

$27.00

LH Rear Grille | Not Shown

708302567

$8.00

Central LH Rear Grille

708302610

$8.00

Grommet | Not Shown

293720115

$2.00

RH Grille Sup. | Not Shown

708302611

$27.00

RH Rear Grille | Not Shown

708302568

$8.00

Central RH Rear Grille | Not Shown

708302612

$8.00

Grommet | Not Shown

293720115

$2.00

Deep Black, LH Arm Rest | Model-With Black Seat

708000614

$90.00

Deep Black, RH Arm Rest | Model-With Black Seat

708000615

$90.00

Torx Screw K50 X 16

250000720

$1.39

Torx Screw K50 X 16

250000720

$1.39

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

Elastic Stop Nut M6, Brass

232561200

$3.51

Torx-Truss M/S M6 X 25

250000880

$2.00

Rear Support Ass'y | Includes 160 to 162

708300781

$280.00

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

Hex. Elastic Stop Nut M6

232561600

$0.92

Panel Nut M6 X 1.0

250100198

$1.73

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

LH Trim Saddlebag B-257 | Package 10TH Except Japan

708302512

$98.00

TRIM TRUNK LH B-428 - Call your local BRP dealership | Package 10TH Japan

708302513

Unavailable

Carbon Black, LH Trim Saddlebag | Package Dark

708302514

$94.00

Trim Saddlebag LH , Chrome | Package Chrome Excepté Japan

708302515

$98.00

Trim Saddlebag LH , Chrome | Package Chrome & Japan

708302516

$110.00

Moulding Trim LH | Model-Japan

708300650

$23.00

Trim Saddlebag RH, Chrome | Package Chrome Excepté Japan

708302517

$98.00

Trim Saddlebag RH, Chrome | Package Chrome Japan

708302518

$110.00

Carbon Black, RH Trim Saddlebag | Package Dark

708302519

$98.00

TRIM TRUNK RH B-428 - Call your local BRP dealership | Package 10TH Except Japan

708302520

Unavailable

TRIM TRUNK RH B-428 - Call your local BRP dealership | Package 10TH Japan

708302521

Unavailable

RH Moulding Trim | Model-Japan

708300651

$23.00

Pressure Nut

250100163

$1.72

Torx Screw K50 X 16

250000720

$1.39

Trim Trunk Rear, Chrome

708301073

$130.00

MOULDING KIT - Call your local BRP dealership | Model RT with Package LTD / S

219400192

Unavailable

Black Carbon Moulding | Model RT with Package SPE

708301822

$130.00

TRIM TRUNK R B-417 - Call your local BRP dealership | Package 10TH

708302522

Unavailable

Central Moulding Trim

708300652

$15.00

Pressure Nut

250100163

$1.72

Torx Screw K50 X 16

250000720

$1.39

LH Inner Fender

708300327

$57.00

RH Inner Fender

708300328

$57.00

Panel Nut M6 X 1.0

250100198

$1.73

Torx Truss Screw M6 X 20

250000350

$4.39

Torx Screw K50 X 16

250000720

$1.39

Retainer Cable

708300385

$39.00

Torx Truss M8 X 16

250000881

$1.74

Flat Washer, Stainless/Neoprene

211200055

$0.68

Hex. Nut M6

232061414

$0.44

Seal

708300397

$39.00

Heat Shield

705004173

$48.00

Tie Wrap 142 mm

293750002

$0.88

Tie-rap Mount (square - self-adhsive)

293750040

$3.09

LH Flash Support | Model-Japan

708300979

$19.00

RH Flash Support | Model-Japan

708300980

$17.00

Retaining Washer | Model-Japan

708301024

$3.00

Torx Truss Screw M6 X 20

250000303

$7.00

Flat Washer M6, Stainless

234062600

$0.64

Hex. Flange Elastic Nut M6

233261494

$1.26

Radio Antenna Base RH, 11.7mm Dia.

708302047

$22.00
