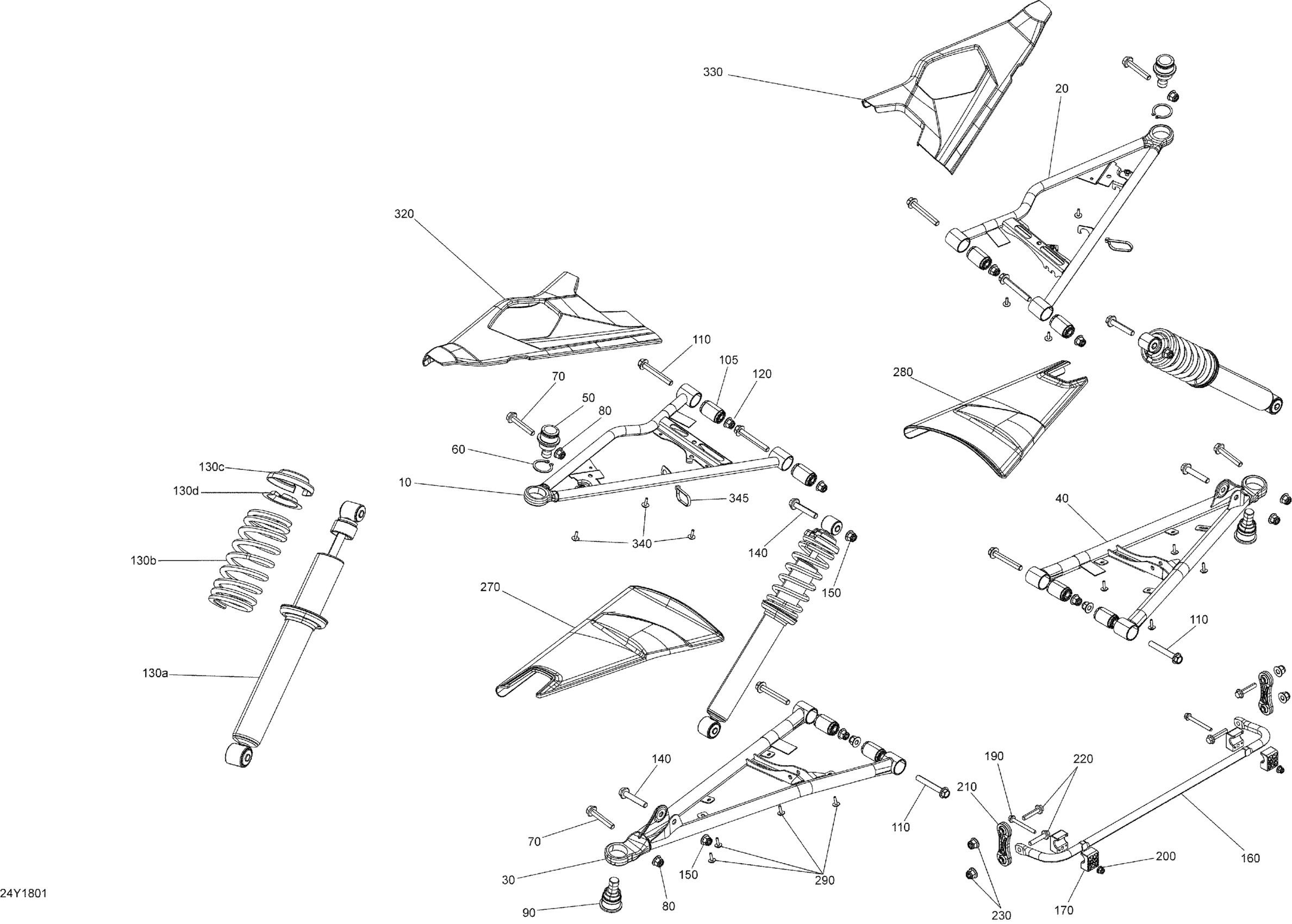

Can-Am RT LTD SE6, 2018 Front Suspension Diagram

#

Description
Price

10

LH Upper Suspension Arm

706203433

$158.99

10

RH Upper Arm | RT

706201732

$158.99

30

LH Lower Suspension Arm

706201733

$158.99

30

RH Lower Suspension Arm

706201734

$158.99

50

Ball Joint

706202507

$61.99

60

Circlip

293370035

$2.64

70

Hex. Flange Screw M10 X 55

207605554

$7.62

80

Flange Elastic Nut M10

233201466

$3.17

90

Ball Joint

706202508

$42.49

105

Suspension Arm Bushing

706201519

$13.76

110

Hex. Flange Screw M10 X 70

207607056

$4.29

120

Flange Elastic Nut M10

233201466

$3.17

130a

Shock | RT LTD

706001549

$116.49

130b

Spring | RT LTD

706001830

$64.49

130c

Spring Stopper

706200881

$12.99

130d

Cap

706200785

$4.69

140

Hex. Flange Screw M10 X 55

207605554

$7.62

150

Flange Elastic Nut M10

233201466

$3.17

160

Sway Bar

706202800

$90.99

170

Stabilizer Bushing

706201391

$9.21

190

Hex. Flange Screw M6 X 60

250000778

$4.44

200

Hex. Flange Elastic Nut M6

233261466

$2.00

210

Tie Rod

706200671

$20.99

220

Hex. Flange Screw M8 X 40

207684054

$2.11

230

Elastic Flange Nut M8

233281464

$1.01

270

LH Lower Air Deflector

706201319

$22.99

280

RH Lower Air Deflector

706201320

$22.99

290

Screw M4 X 16

250000725

$3.49

320

Black LH Upper Air Deflector | Model-RS STD

706201321

$22.99

330

Black RH Upper Air Deflector | Model-RS STD

706201322

$22.99

340

Screw M4 X 16

250000725

$3.49

345

Tie Wrap 368 mm

293750008

$1.04
