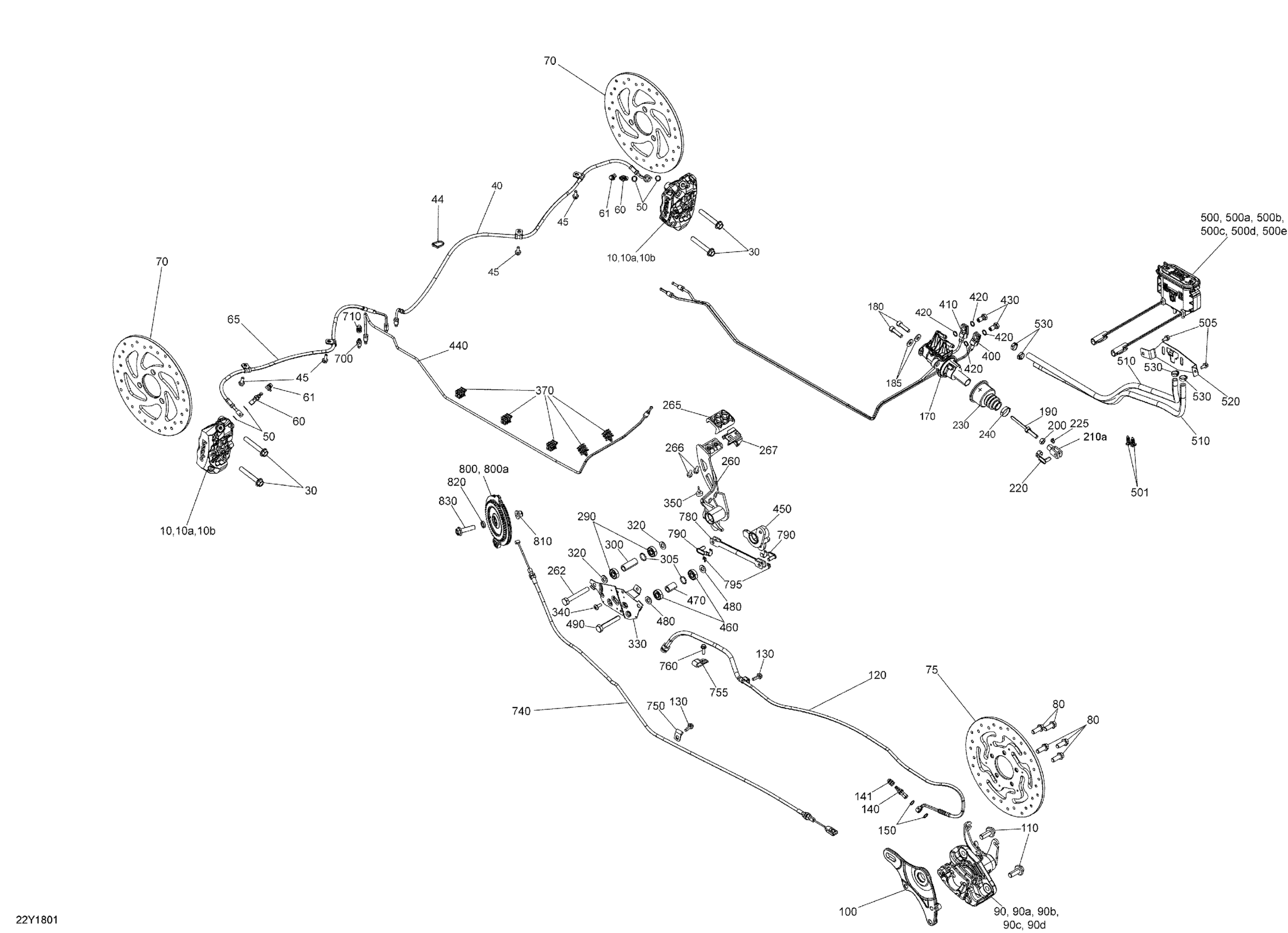

Can-Am RT LTD SE6, 2018 Brakes LTD Diagram

#

Description
Price

10

LH Front Caliper | Includes 10 to 10b

705600987

$381.49

10

RH Front Caliper | Includes 20 to 20b

705600988

$381.49

10a

Brake Pad Kit

219800237

$79.49

10b

Spring/Pin/Clip Kit

219800238

$26.99

30

Hex Flange Screw M10 X 65

207506556

$6.77

40

RH Front Hose | RT

705601252

$61.49

40a

Clamp

293650256

$5.49

44

Tie Wrap 368 mm

293750008

$1.04

45

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

50

Washer

414920600

$1.90

60

Banjo Bolt/ Bleeder

705601201

$19.99

61

Bleeder Bolt Cap

705601190

$4.44

65

LH Front Hose | RT

705601253

$61.49

65a

Clamp

293650256

$5.49

70

Front Brake Disk

705601631

$153.99

75

Rear Brake Disk

705601632

$244.99

80

Hex. Flange Screw M10 X 25

250001054

$14.21

90

Rear Caliper | Includes 90 to 90d

705600989

$497.99

90a

Brake Pad Kit

219800239

$79.49

90b

Spring/Pin/Clip Kit

219800240

$35.99

90c

Rear Cable Support Kit

219800241

$41.49

90d

Rear Dust Cover

219800242

$32.99

100

Rear Caliper Support

705601262

$55.99

110

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

120

Brake Line

705601501

$74.99

130

Hex. Flange Screw M6 X 20

207662054

$1.01

140

Banjo Bolt/ Bleeder

705601201

$19.99

141

Bleeder Bolt Cap

705601190

$4.44

150

Washer

414920600

$1.90

170

Tandem Cylinder Master

705600722

$369.99

180

Screw-Socket Cap S.Grip M8 X 30

250001117

$1.90

185

Washer

506151245

$0.93

190

Piston Rod

705600468

$23.49

200

Hex. Nut M8

232081414

$0.72

210a

Yoke | Not Shown

705601142

$15.36

210b

Hex. Nut M8

232081414

$0.72

210c

Pin | Not Shown

250400058

$8.29

210d

Flat Washer M8

234081430

$2.11

210e

Cotter Pin

371800700

$1.01

220

Rod Clamp

250400064

$6.88

225

Cotter Pin

371800700

$1.01

230

Bellow

705600716

$12.10

240

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

260

Carbon Black, Brake Pedal

705601510

$109.99

262

Hexagonal Screrw S.GRIP M10 X 75 | RT LTD

207207544

$4.44

265

Rubber Pad

705004933

$20.99

266

Hex. Flange Screw M6 X 12

210261250

$1.90

267

Pedal Guard | RT LTD

705601217

$11.99

290

Bearing

705600458

$19.99

300

Bushing | RT LTD

705601276

$6.98

305

O-Ring

293300191

$1.46

320

Washer

503183800

$3.28

330

Tab Lock | RT

705601346

$20.99

340

Torx Head Screw M6 X 16

250000717

$2.11

350

Rubber Stopper

708000759

$4.19

370

Anchorage Tube

705601987

$5.18

400

Tandem Rigid Tube | Includes 400 to 400a

705601157

$31.99

410

Tandem Rigid Tube | Includes 410 to 410a

705601158

$31.99

420

Washer

414920600

$1.90

430

Banjo Bolt

507032551

$5.61

440

Rear Brake Rigid Tube

705601159

$31.99

450

Rocker Arm | RT

705600855

$49.99

460

Bearing

705600458

$19.99

470

Bushing

705600541

$15.36

480

Washer

503183800

$3.28

490

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

500

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$119.99

500a

Diaphragm Cover Ass'y

219800350

$17.59

500b

Diaphragm Cover Ass'y

219800350

$17.59

500c

Oil Level Sensor

705601073

$54.99

500d

Spindle Lock

705601294

$15.81

500e

Push Nut | Not shown

211100002

$2.19

501

Connector Holder

710002033

$3.39

502

Hose 4.32Mm 3000Mm Long

219704415

$55.99

505

Hex. Flange Screw M6 X 12

210261250

$1.90

510

HOSE 8MM 3000MM LONG - Call your local BRP dealership

219704417

Unavailable

520

Bracket

705601486

$14.49

530

Crimp Clamp, 15.3-706R

293650047

$3.29

700

Bleeder Screw

705600502

$11.11

710

Bleeder Bolt Cap

705601190

$4.44

740

Parking Brake Cable

707001058

$66.99

750

Bracket

415052400

$4.39

755

Open Clamp

515175507

$1.89

760

Hexagonal Head Screw

210262050

$2.11

780

Connecting Rod | RT

705600959

$54.99

790

Rod Clamp

250400064

$6.88

795

Cotter Pin

371800700

$1.01

800

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$89.99

800a

Bearing

705600458

$19.99

810

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

820

Bushing

293900087

$7.90

830

Hex. Flange Screw M10 X 40 | Includes 783 to 783j

207604054

$7.27
