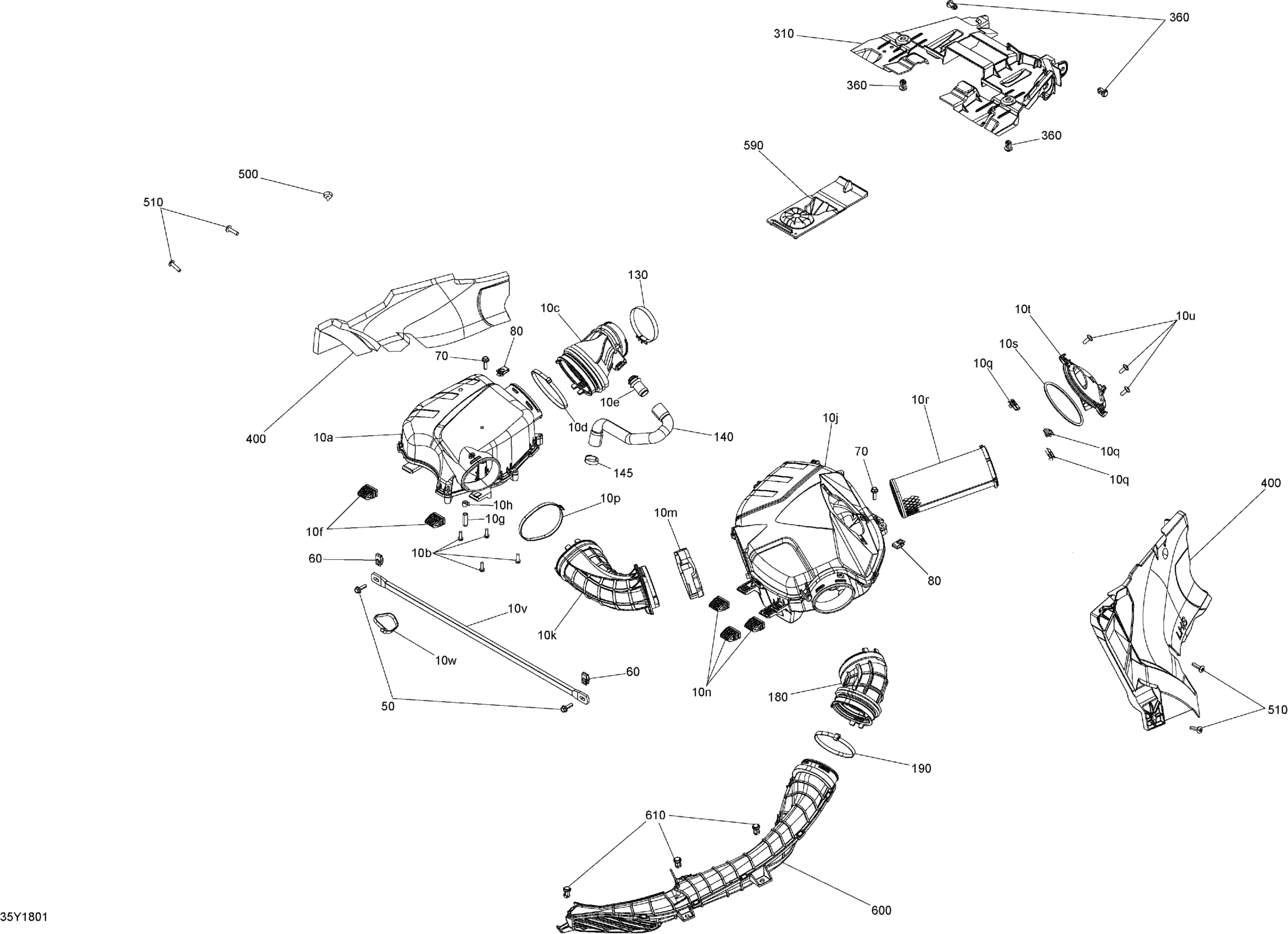

Can-Am RT LTD SE6, 2018 Air Intake Diagram

#

Description
Price

10a

RH Air Intake Silencer | Includes 10a1 to 10a1f

707800488

$55.00

10b

Hex. Screw M4.8 X 1.8

243141680

$4.69

10c

Air Intake Adaptor

707800388

$34.00

10d

Tie Rap

509000165

$2.75

10e

Breather Valve

273000234

$10.63

10f

Rubber Stopper

707800452

$8.00

10g

Cap Plug

293000105

$3.38

10h

Spring Clamp

414554800

$0.83

10j

LH Air Intake Silencer | Includes 10b1 to 10b1c

707800489

$55.00

10k

Intake Adaptor

707800485

$32.00

10m

Ring

707800525

$17.00

10n

Rubber Stopper

707800452

$8.00

10p

Tie Rap

509000165

$2.75

10q

Panel Nut M6 X 1.0

250100198

$1.73

10r

Air Filter

707800483

$47.00

10s

O-ring

707800455

$8.00

10t

Cap

707800484

$19.00

10u

Torx Truss Screw M6 X 16

250000348

$1.74

10v

Link Rod | Includes 10k to 10k1

707800432

$24.00

10w

Tie Rap

509000165

$2.75

50

Hex. Flange Screw M6 X 20

207662044

$1.66

60

Panel Nut M6 X 1.0

250100198

$1.73

70

Hex. Flange Screw M6 X 20

207662044

$1.66

80

Panel Nut M6 X 1.0

250100198

$1.73

130

Gemi Clamp

508000346

$9.31

140

Formed Hose

707800824

$19.00

145

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

180

Adapter

707800389

$29.00

190

Tie Rap

509000165

$2.75

310

Acoustic Support

707800562

$45.00

360

Tuflok Plastic Rivet

293150230

$1.21

400

Console Support

707800749

$6.00

510

Torx Screw M6 X 20

250000712

$1.74

590

Center Bellows

707800343

$32.00

600

Air Inlet Valve

707800477

$19.00

610

Tuflok Plastic Rivet

293150230

$1.21

650

Norma Clamp

514052924

$10.58
