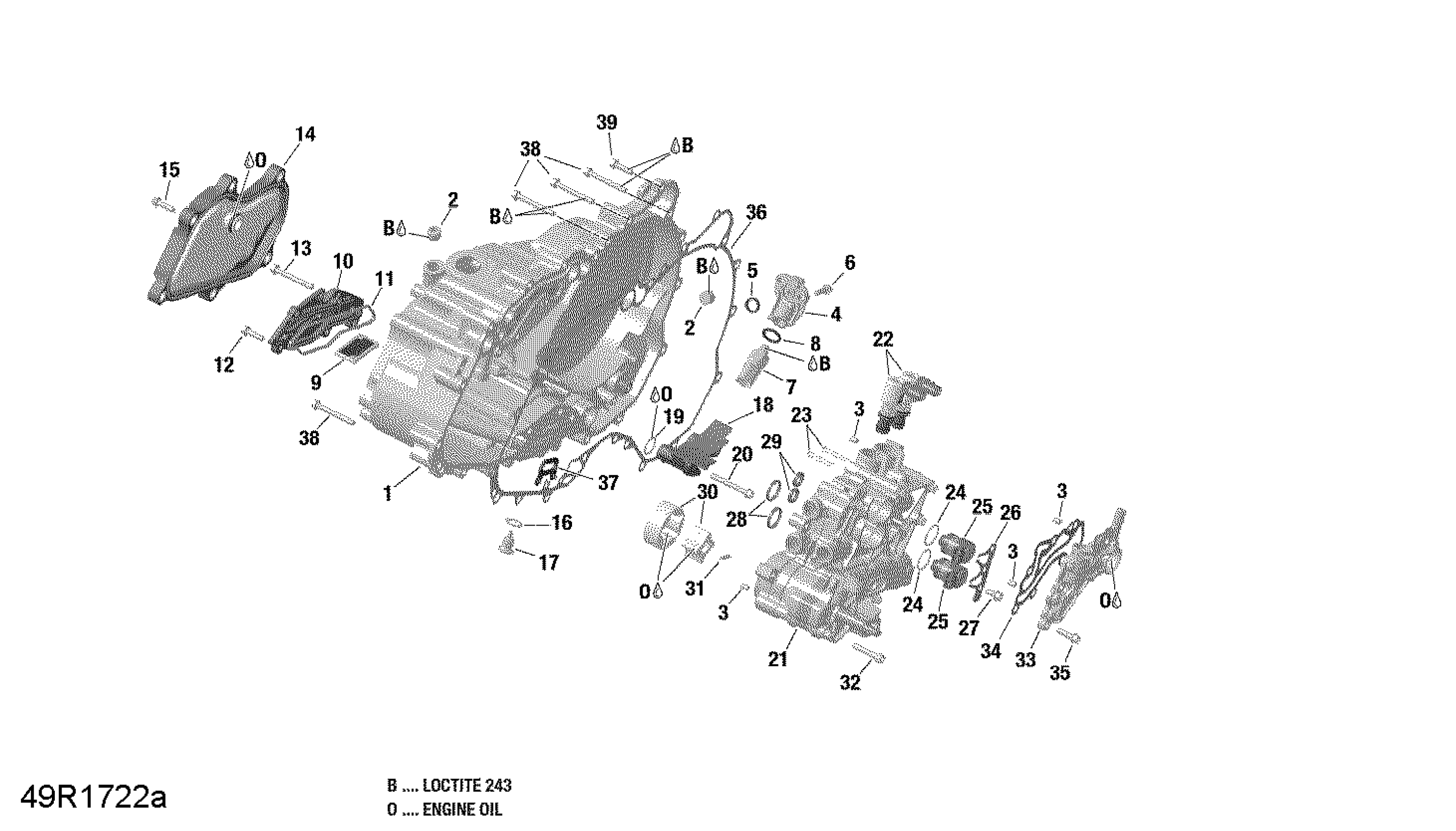

Can-Am RT LTD SE6, 2018 Clutch Cover - SE6 Diagram

#

Description
Price

1>3a

Clutch Cover Ass'y | Includes 1 to 4

420212907

$487.49

2

Plug Screw M14 X 1.5

420641308

$13.23

3

Center Pin

420232210

$8.26

3a

Torx Screw M8 X 18

420841732

$1.39

4

Pressure Sensor Housing

420212173

$73.99

5

Gasket

420450310

$2.21

6

Torx Flange Screw M6 X 20

420440207

$3.06

7>8

Oil Pressure Sensor

420264166

$319.99

8

O-Ring

420450350

$20.99

9

Oil Sieve

420656990

$13.10

10

Oil Duct Cover

420210870

$71.99

11

Gasket

420250630

$11.64

12

Torx Flange Screw M6 X 20

420440207

$3.06

13

Torx Flange Screw M6 X 45

420440324

$0.98

14

Oil Filter Cover

420211156

$137.99

15

Torx Flange Screw M6 X 20

420440207

$3.06

16

Copper Washer

420250640

$0.98

17

Magnetic Drain Plug M12 X 1.5

420241780

$17.59

18

Oil Guiding Plate

420224085

$19.19

19

O-Ring

420430220

$8.26

20

Torx Flange Screw M6 X 45

420440324

$0.98

21>29

Hydraulic Housing Ass'y

420210982

$2,564.99

22

Solenoid Valve 3/2

420264212

$239.99

23

Spring Clip

420939040

$6.61

24>25

Solenoid Valve Ass'y

420656792

$319.99

25

Not Available As Spare Parts

XXX

Unavailable

26

Retaining Plate

420651701

$14.21

27

Hex. Flange Screw M6 X 12

420440147

$2.00

28

Gasket

420450240

$2.43

29

Gasket

420450310

$2.21

30

Oil Pump Rotor

420456290

$73.99

31

Needle Pin

420232731

$4.01

32

Socket Head Screw M6 X 30

205063044

$1.69

33

Valve Housing

420211124

$68.99

34

Gasket

420450290

$26.49

35

Torx Flange Screw M6 X 20

420440207

$3.06

36>37

Gasket Ass`y

420450032

$25.99

38

Torx Flange Screw M6 X 45

420440324

$0.98

39

Torx Flange Screw M6 X 20

420440207

$3.06
