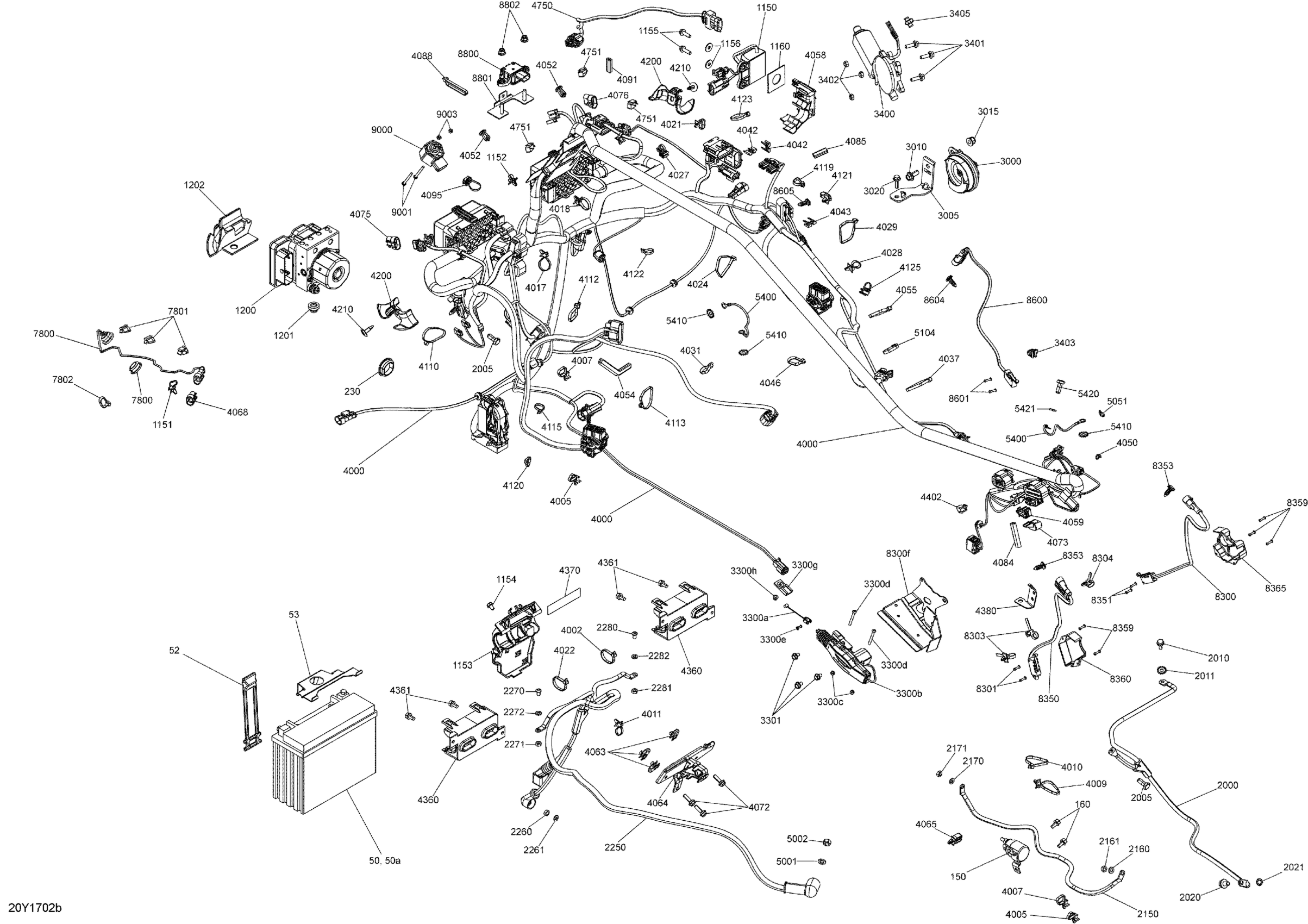

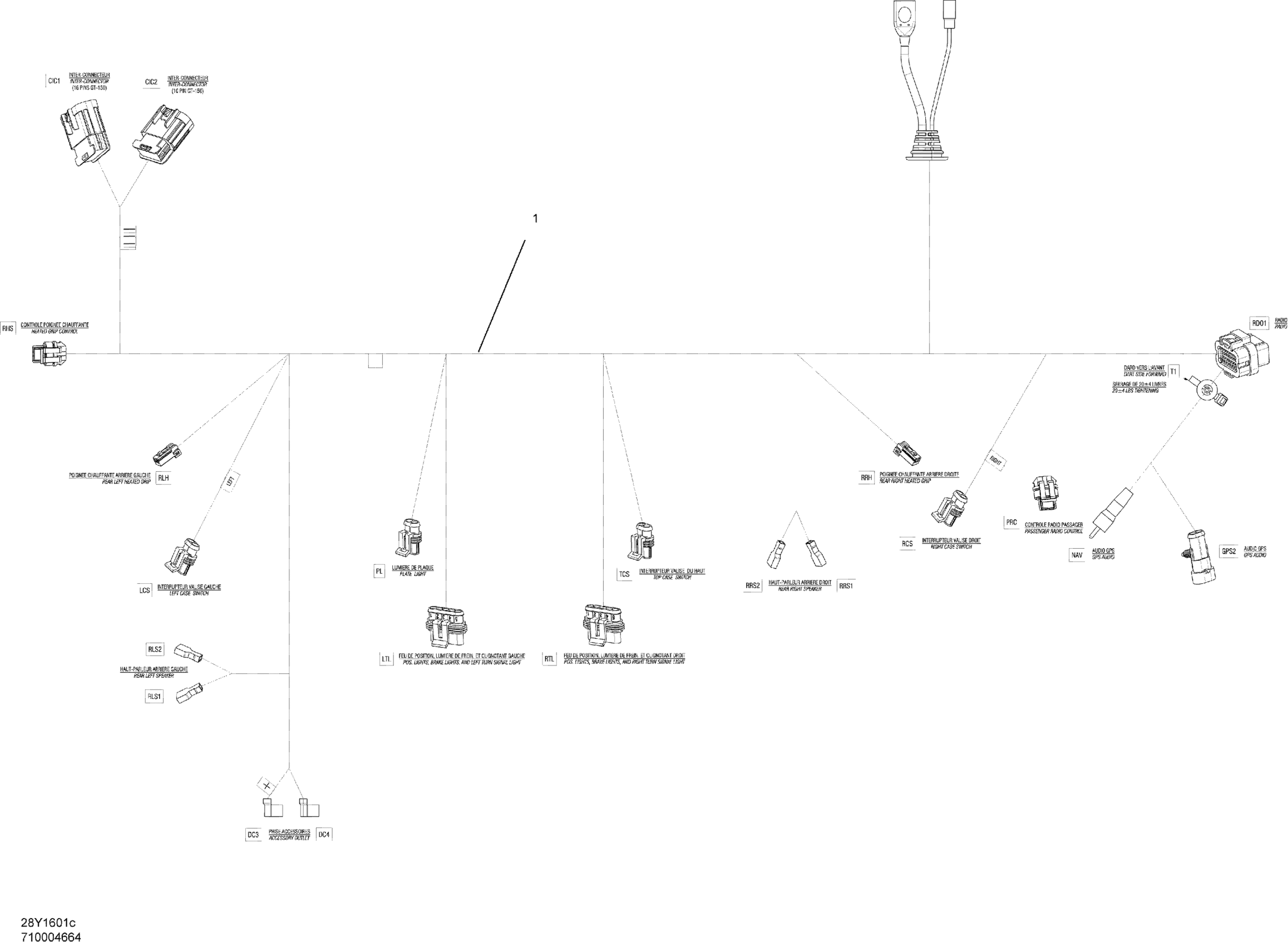

Can-Am RT, 2017 Electrical System - General Diagram

#

Description
Price

50

Battery, 12 Volts, 21 Amperes

410922962

$160.52

50

BATTERY, 12 VOLTS, 21 AMPERES - Call your local BRP dealership | Brazil

219800305

Unavailable

50a

Battery Bolt Kit

250000282

$2.95

52

Latch

520000528

$6.60

53

Battery Holder

710002893

$17.00

150

Starter Relay

710007777

$46.89

160

Hex. Flange Screw M6 X 12

210261250

$1.56

230

Rubber Plug

710002858

$2.75

1150

Dess Module

710004916

$180.00

1151

Tie-Rap 173 mm

293750009

$0.85

1152

Tie-Rap 173 mm

293750009

$0.85

1153

Wire Support

710004308

$13.00

1154

Hex. Forming Screw M6 X 10

210261050

$1.42

1155

Hexagonal Head Screw

210262050

$1.74

1156

Flat Washer 6 mm

234062410

$0.64

1160

Rubber Bumper

293830091

$8.29

1200

VCM Module

219800375

$1,230.00

1201

Shock Damper

710003279

$10.14

1202

VCM Harness Protector

710003996

$3.00

2000

Cable Neg

710004733

$62.00

2010

Hex. Flange Screw M6 X 16

207661644

$0.61

2011

Lock Washer Serrated M6

250200041

$0.92

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

2021

Serrated Lock Washer 8 mm

234481608

$1.09

2150

START CABLE - Call your local BRP dealership

710004737

Unavailable

2160

Stainless Flat Washer M6

234061600

$0.25

2161

Elastic Stop Nut M6

232561414

$1.55

2170

Lock Washer Helical M6

234161601

$0.92

2171

Hex. Nut M6

232061600

$0.91

2250

POSITIVE CABLE - Call your local BRP dealership

710004736

Unavailable

2260

Hex. Nut M6

232061600

$0.91

2261

Lock Washer Helical M6

234161601

$0.92

2270

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2271

Hex. Nut M6

232061600

$0.91

2272

Lock Washer Helical M6

234161601

$0.92

2280

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2281

Hex. Nut M6

232061600

$0.91

2282

Lock Washer Helical M6

234161601

$0.92

3000

HORN - Call your local BRP dealership

710004229

$29.00

3005

Horn Support

710005769

$16.00

3010

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

3300a

Reverse Cable

710002889

$32.00

3300b

Actuator

710011269

$65.00

3300c

Elastic Stop Nut M4

232541414

$0.48

3300d

Socket Head Screw M4 X 40 | X

205444086

$1.42

3300e

Pop Rivet 5/32

390403000

$0.34

3300f

Reverse Actuator Support

710005642

$31.00

3300g

Clip

270000141

$8.33

3300h

Pop Rivet 3/16"

390402400

$0.25

3301

Hex. Forming Screw M6 X 10

210261050

$1.42

3400

Actuator Motor

710007256

$228.00

3401

Hex. Flange Screw M6 X 20

207662054

$0.83

3402

Elastic Stop Nut M6

232561434

$1.55

3403

Tie-Rap Clip

710002896

$4.60

3405

Tie-Rap 173 mm

293750009

$0.85

4000

Frame Harness RT SE6 | Included 1 to YRS

710004355

$1,110.00

4000

Frame Harness RT SE6 | SE6 Man. Date Aug 1rst 2016 And Up

710005014

$890.00

4000

Frame Harness RT SM6 | Included 1 to YRS

710004354

$970.00

4000

WIRING HARNESS MAIN - Call your local BRP dealership | SM6 Man. Date Aug 1rst 2016 And Up

710005015

Unavailable

4002

Tie-Rap 180 mm

414115200

$0.09

4005

Tie-Rap 173 mm

293750009

$0.85

4007

Tie-Rap 173 mm

293750009

$0.85

4011

Tie-Rap 173 mm

293750009

$0.85

4017

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

4018

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

4021

Tie-Rap 173 mm

293750009

$0.85

4022

Tie-Rap 180 mm

414115200

$0.09

4024

Tie Wrap 368 mm

293750008

$0.85

4027

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

4028

Tie-Rap 173 mm

293750009

$0.85

4029

Tie Wrap 368 mm

293750008

$0.85

4031

Tie-Rap 180 mm

414115200

$0.09

4037

Tie Wrap 368 mm

293750008

$0.85

4042

Lock

710001222

$1.68

4043

Lock

710001222

$1.68

4046

Tie Wrap 368 mm

293750008

$0.85

4050

Tie-Rap 180 mm

414115200

$0.09

4052

Tuflok Plastic Rivet

293150230

$1.21

4054

Trim 1000Mm Long

219704354

$14.74

4055

Tie Wrap 368 mm

293750008

$0.85

4058

Connector Support

710004086

$8.00

4059

Connector Plug

710004903

$3.00

4063

Panel Nut M6 X 1.0

250100198

$1.73

4064

CONNECTOR SUPPORT - Call your local BRP dealership

710004256

Unavailable

4068

Connector Plug

710004906

$13.00

4072

Hex. Flange Screw M6 X 20

207662044

$1.66

4073

Connector Plug

710004902

$3.00

4075

Connector Plug

710004901

$13.00

4076

Connector Plug

710004901

$13.00

4084

Trim 1000Mm Long

219704354

$14.74

4085

Trim 1000Mm Long

219704354

$14.74

4088

Tie-Rap 180 mm

414115200

$0.09

4091

Trim 1000Mm Long

219704354

$14.74

4095

Clip Tie-Rap

293750063

$8.45

4110

Tie Wrap 368 mm

293750008

$0.85

4112

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

4113

Tie Wrap 368 mm

293750008

$0.85

4115

Tie Wrap 368 mm

293750008

$0.85

4119

Tie-Rap 180 mm

414115200

$0.09

4120

Tie Wrap 368 mm

293750008

$0.85

4121

Tie-Rap 173 mm

293750009

$0.85

4122

Tie-Rap 180 mm

414115200

$0.09

4123

Tie Wrap 368 mm

293750008

$0.85

4125

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

4200

Harness Holder

710004931

$2.00

4210

Tuflock Phillips Plastic Screw

414745900

$1.30

4360

Fuse Holder Support

710004472

$9.29

4361

Hex. Flange Screw M6 X 12

210261250

$1.56

4370

RH/LH Fuse Box Decal

710003077

$1.00

4380

Connectors Bracket

710003305

$13.00

4402

Clip

414227300

$1.45

4750

AAPTS Harness

710004764

$17.00

4751

Clip

414227300

$1.45

5001

Lock Washer 8 mm, Stainless

234181601

$0.46

5002

Hex. Nut M8

232081414

$0.60

5051

Tie-Rap 180 mm

414115200

$0.09

5104

Tie Wrap 368 mm

293750008

$0.85

5400

Tank Cable

710004849

$19.00

5410

Lock Washer Serrated M6

250200041

$0.92

5420

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.57

5421

Washer

250200111

$1.74

7800

Cap

705003464

$10.42

7800

Trunk Light

710001533

$68.00

7801

Clip

414227300

$1.45

7802

Tie Wrap 142 mm

293750002

$0.88

8300

Brake Light Switch Ass'y

710003412

$46.00

8301

Pop Rivet

293150150

$2.31

8303

Tie-Rap 173 mm

293750009

$0.85

8304

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

8350

Brake Pressure Switch Ass'y

710001379

$41.51

8351

Pop Rivet

293150150

$2.31

8353

Connector Holder

710002033

$3.22

8359

Pop Rivet

293150150

$2.31

8360

LPS Deflector

705601402

$13.00

8365

Deflector

705601344

$13.00

8600

Brake Pressure Switch Ass'y

710001379

$41.51

8601

Pop Rivet

293150150

$2.31

8604

Connector Holder

710002033

$3.22

8605

Connector Holder

710002033

$3.22

8800

Yaw Rate Sensor

710002677

$195.00

8801

YRS Holder

710003494

$16.00

8802

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

9000

Steering Position Sensor

219800354

$270.00

9001

Hex. Cap Screw

207144044

$0.98

9003

Elastic Stop Nut M4

232541484

$0.61
