Description

Price

10

Vegas White Pearl, Bumper Cover | Model-White

705007555

$424.00

10

Ivory Bumper Cover | Ivory Model

708200535

$423.00

10

Bare, Bumper Cover | Model-Steel Black Met

705004576

$190.00

10

Asphalt Gray, Bumper Cover | Grey Model

708200705

$424.00

20

Tuflok Plastic Rivet

293150230

Unavailable

50

Black Bumper Moulding

705007104

$135.00

160

Deep Black, LH Front Wing | Model-RT STD

705004577

$135.00

160

Front Wing LH, Chrome | Model-RT LTD

705007344

$130.00

160

TRIM_BUMPER UP L PLATINUM CHROME - Call your local BRP dealership | Model-RT S

705007443

$115.00

160

Deep Black, RH Front Wing | Model-RT STD

705004578

$135.00

160

Front Wing RH, Chrome | Model-RT LTD

705007345

$130.00

160

TRIM_BUMPER UP R PLATINUM CHROME - Call your local BRP dealership | Model-RT S

705007444

Unavailable

180

Torx-Truss Pt K40 X 16

250000759

Unavailable

190

Tuflok Plastic Rivet

293150230

Unavailable

200

LH Front Deflector

705007067

$20.00

200

RH Front Deflector

705007068

$20.00

220

Torx Screw M6 X 20

250000722

Unavailable

225

Panel Nut M6 X 1.0

250100198

Unavailable

230

Front Wing Moulding LH

705007305

$46.00

230

Front Wing Moulding RH

705007306

$46.00

300

Vegas White Pearl, Hood | Model-White

705006149

$630.00

300

Ivory Hood | Ivory Model

708200536

$540.00

300

Asphalt Gray, Hood | Grey Model

708200583

$540.00

300

Orbital Blue Hood Replacement Kit | Model with Color Orbital Blue

219800221

$540.00

320

Néoprene Pad

705006824

$7.00

330

Neoprene Seal 3000Mm Long

219704371

Unavailable

440

Hood Arm

705003248

$55.00

450

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

460

Hood Pivot

705005434

$17.00

470

Spacer

705003322

$28.00

480

Hex. Screw M6 X 110

230061034

Unavailable

490

Flange Elastic Nut M6

233261434

Unavailable

500

Torx Screw M6 X 20

250000722

Unavailable

510

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

Unavailable

590

Lower Air Duct LH

705004579

$89.00

590

Lower Air Duct RH

705004580

$89.00

610

Rear Air Duct LH

705005859

$89.00

610

Rear Air Duct, RH

705005860

$89.00

630

Radiator Grille

705008132

$53.00

640

Torx Screw M6 X 20

250000722

Unavailable

650

Panel Nut M6 X 1.0

250100198

Unavailable

670

Tuflok Plastic Rivet

293150230

Unavailable

680

Torx Screw M6 X 20

250000722

Unavailable

690

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

Unavailable

800>800c

Storage Box Ass'y

705007219

$490.00

800a

Dual Lock Velcro Washer 3/4"

293740028

$4.00

800b

Rivet

390401400

Unavailable

800c

Flat Washer 3 mm, Stainless Steel

234031600

Unavailable

810

Fuse Cover Ass'y | Includes 140 to 140b

705011444

$28.00

820>820a

Battery Cover Ass'y | Includes 130 to 130c

705018040

$30.00

820a

Dual Lock Velcro Washer 3/4"

293740028

$4.00

830

Torx Truss Screw M6 X 12

250000767

Unavailable

870

External Serrated Lock Washer 6 mm

234461608

Unavailable

880

Latch Ass'Y

705009310

$105.00

890

Hex. Flange Elastic Nut M6

233261494

Unavailable

900a

Actuator Bracket | Model-RT LTD

705003691

$27.00

900b

Position Sensor | Model-RT LTD

710001861

$22.00

900c

Switch Protector Plate | Model-RT LTD

705005845

$9.00

920

Bushing

705004513

$10.00

930

Hood Guide

705004468

$12.00

940

Torx Screw K50 X 16

250000720

Unavailable

970

Hood Cable

517305460

$45.00

1020

Rubber Bumper

293830005

Unavailable

1030

Skid Plate

705002837

$69.00

1035

Torx Screw Truss Head K50X20 T20

250000760

Unavailable

1040

Torx Screw M6 X 25 | XT Models

250000728

Unavailable

1050

Panel Nut M6 X 1.0

250100198

Unavailable

1060

Torx Screw M6 X 25 | XT Models

250000728

Unavailable

1070

Panel Nut M6 X 1.0

250100198

Unavailable

1130

FRONT TRUNK LINER - Call your local BRP dealership | Model-RT LTD

219400368

Unavailable

1140

Holding Strap

705004357

$28.00

1150

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

Unavailable

1280

Vegas White Pearl, LH Front Panel | Model-White

708200636

$310.00

1280

Ivory LH Front Panel | Ivory Model

708200650

$260.00

1280

Orbital Blue LH Front Panel | Model with Color Orbital Blue

708200654

$260.00

1280

Asphalt Gray, LH Front Panel | Grey Model

708200706

$260.00

1280

Vegas White Pearl, RH Front Panel | Model-White

708200637

$310.00

1280

Ivory RH Front Panel | Ivory Model

708200651

$260.00

1280

Orbital Blue RH Front Panel | Model with Color Orbital Blue

708200655

$260.00

1280

Asphalt Gray, RH Front Panel | Grey Model

708200707

$260.00

1320

Tuflok Plastic Rivet

293150230

Unavailable

1360

Hex. Flange Screw M6 X 20

207662044

Unavailable

1370

Panel Nut M6 X 1.0

250100198

Unavailable

1380>1380a

Air Duct Ass'y, LH | Model-RT STD North America

705003703

$90.00

1380>1380a

Air Duct Ass'y RH | Model-RT STD North America

705003706

$90.00

1380a

Clip

414479100

Unavailable

1400

Edge Clip

517302785

Unavailable

5655

Rubber Stopper

708000759

Unavailable

7530

Service Center Access Panel LH

705002839

$34.00

7530

Service Center Access Panel RH

705005903

$34.00

7540

Hexagonal Head Screw

210262050

Unavailable

7550

Hex. Flange Screw M6 X 20

207662044

Unavailable

7560

Torx Truss Screw M6 X 20

250000350

Unavailable

7570

Plastic Washer

705003207

$1.00

7580

Tuflok Plastic Rivet

293150230

Unavailable

7590

Edge Clip

517302785

Unavailable

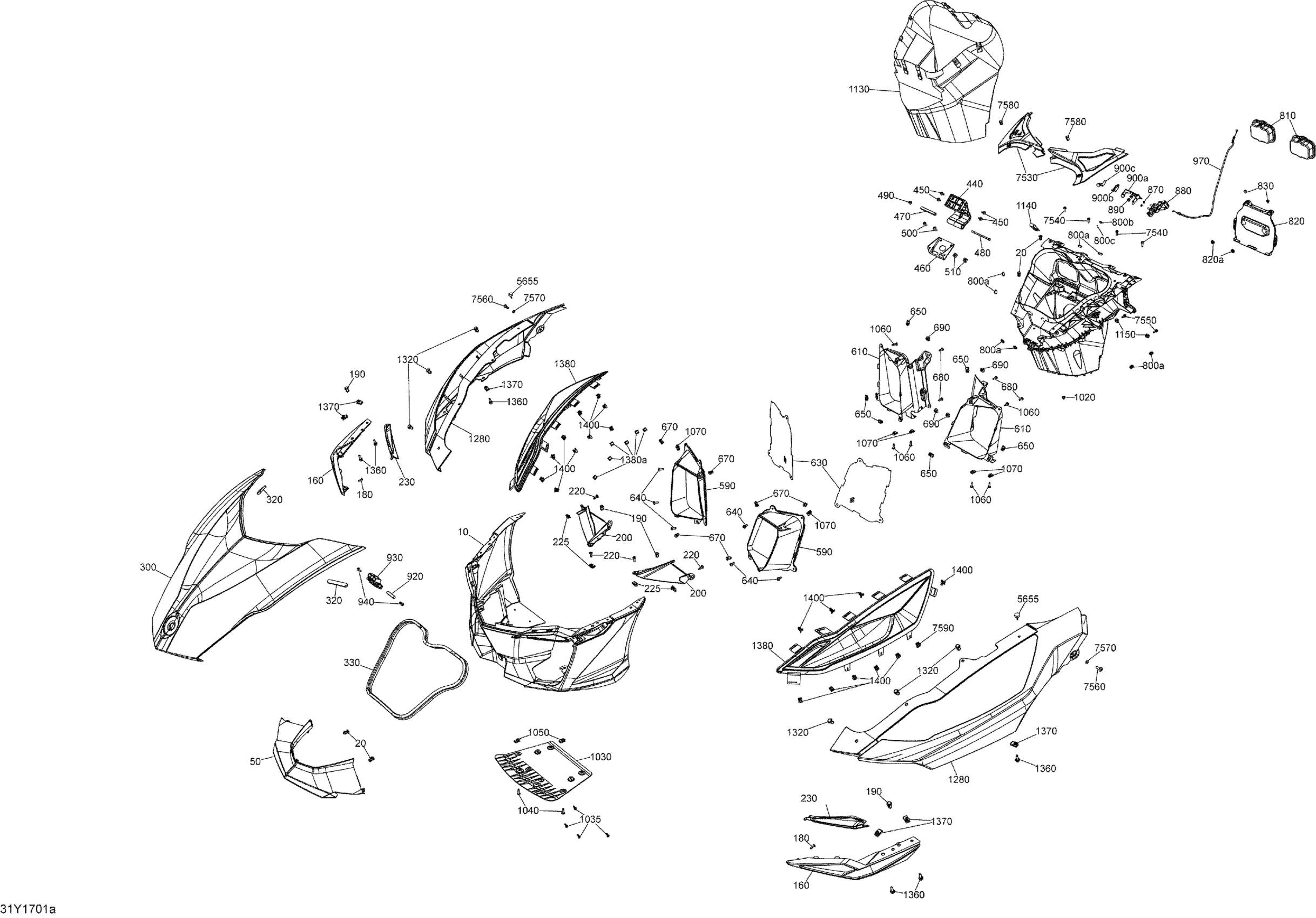

Can-Am RT, 2017 Body And Accessories - Front Storage Diagram
