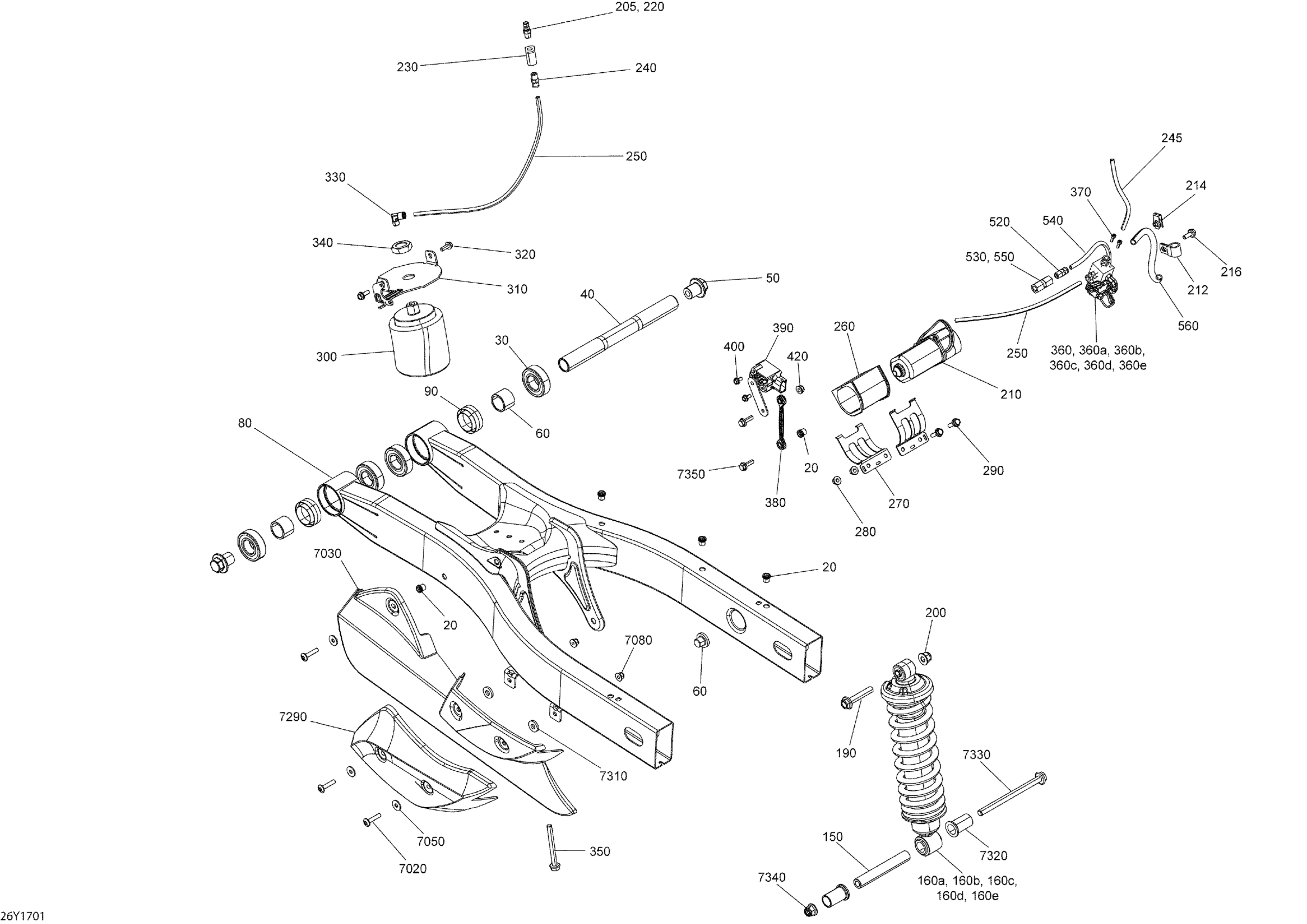

Can-Am RT, 2017 Suspension, Rear - All Models Diagram

#

Description
Price

20

Insert

293450275

$12.99

30

Ball Bearing

293350115

$12.11

40

Swing Arm Axle

706001182

$93.99

50

Bolt M20

706001579

$16.87

60

Spacer

706001152

$9.49

80

Swing Arm

706001574

$455.99

90

Sleeve

706001366

$1.26

150

Shock Absorber Shaft

706000409

$49.99

160a

Shock Absorber

706001552

$116.49

160b

Shock Absorber Spring

706001542

$61.49

160c

Spring Stopper

503193781

$18.49

160d

Cap

503193782

$10.49

160e

Urethane Cushion

503191609

$18.49

190

Hex. Flange Screw M10 X 55

207605554

$7.62

200

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

205

Air Valve

706002797

$18.49

210

Compressor

706001349

$469.99

212

Hose Retainer 13 mm

705600232

$11.11

214

Panel Nut M6 X 1.0

250100198

$2.11

216

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

220

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

230

Pneumatic Connector

706000735

$19.49

240

Connector

706000869

$34.99

245

Hose 4.32Mm 3000Mm Long

219704415

$55.99

250

Hose 4.32Mm 3000Mm Long

219704415

$55.99

250

Hose

706000893

$0.02

260

Compressor Isolator

706000631

$13.99

270

Compressor Bracket

503193103

$4.69

280

Hex. Flange Nut M6

233061414

$1.68

290

Hex. Flange Screw M6 X 20

207662044

$2.00

300

Air Damper Kit

219800175

$291.49

310

Support Plate

706001082

$19.49

320

Hex. Forming Screw M6 X 10

210261050

$1.69

330

Elbow 90°

706001018

$28.99

340

Jam Nut M20

250100119

$4.13

350

Hex. Flange Screw M8 X 75

207687544

$7.41

360>360e

Air Manifold Ass'y

706001175

$299.99

360a

Connector

706000869

$34.99

360b

Tie-Rap 180 mm

414115200

$0.11

360c

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

360d

Tubing 6 Mm 3000Mm Long

219704425

$13.75

360e

Elbow 90°

706000928

$27.99

370

Socket Head Screw M4 X 12

205041254

$2.11

380

Tie Rod

706202505

$23.99

390

Position Sensor

710001651

$174.99

400

Hex. Flange Screw M5 X 10

207551044

$4.12

410

Hex. Flange Screw M6 X 20

207662044

$2.00

420

Hex. Flange Nut M6

233061414

$1.68

520

Connector

706000869

$34.99

530

Ckeck Valve

706000831

$38.99

540

Hose

706000891

$9.69

550

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

560

Tubing 6 Mm 3000Mm Long

219704425

$13.75

7020

Torx Truss Screw M6 X 20

250000350

$5.29

7020

Stainless, Torx Screw M6 X 30

250000842

$2.11

7030

Lower Belt Guard

705002092

$48.99

7050

Stainless Steel Flat Washer

234062670

$2.11

7080

Hex. Flange Elastic Nut M6

233261494

$1.58

7290

Belt Guard Moulding

705009446

$35.99

7310

Adhesive Spacer

705003696

$4.19

7320

Spacer

706000410

$13.99

7330

Hex. Flange Screw M10 X 140

230604034

$6.77

7340

Hex. Flange Elastic Nut M10

233201434

$2.09

7350

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11
