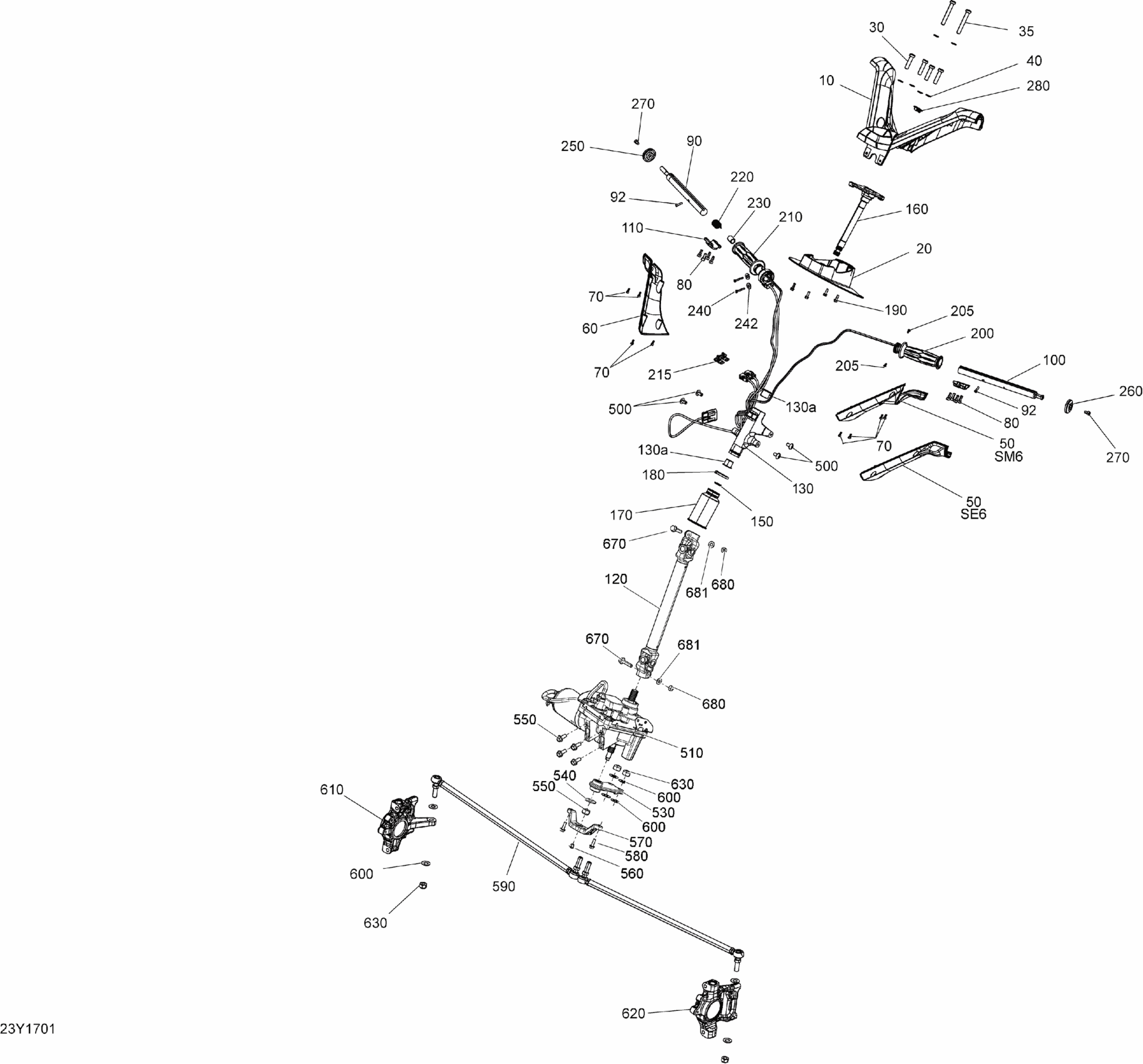

Can-Am RT, 2017 Steering - All Models Diagram

#

Description
Price

10

CRYSTAL SILVER HANDLEBAR - Call your local BRP dealership | Model-RT STD

709400907

$145.00

10

Carbon Black, Handlebar, Texture | Model-RT LTD

709401919

$206.00

20

Handlebar Central Cover | Model-RT

709400579

$17.00

30

Thin Socket Screw M10 X 40, Scotch Grip | RS

250000456

$8.00

35

Thin Socket Screw, Scotch Grip, M10 X 70 | Model-RT LTD

250000659

$11.00

40

Stainless Flat Washer, 10 mm

250200105

$1.74

50

LH Steering Cover | Model-RT S-3

709400577

$17.00

50

LH Steering Cover | Model-RT M-3

709400741

$17.00

60

RH Steering Cover | Model-RT

709400578

$17.00

70

Screw-Socket Hd.DIN.912 | RS

205041054

$2.00

80

Socket Screw M6 X 16, Scotch Grip

205561644

$0.98

90

Handlebars

709401938

$41.00

92

Socket Screw, M4 X 16 Scotch Grip

250000494

$2.00

100

LH Handlebars

709401951

$61.00

110

Handlebar Clamp

709400631

$60.00

120

Lower Steering Column | Model-RT

709401411

$155.00

130>130a

Steering Column Support | Model-RT, Include Cushions

709401214

$110.00

130a

Steering Bushing

709402725

$3.17

150

O-Ring

709000089

$15.35

160

Steering Colum, Black

709401682

$160.00

170

Bellows

709400790

$13.00

180

Tie-Rap 180 mm

414115200

$0.09

190

Hex. Forming Screw M5 X 16

210251650

$0.92

200

Heating Handle Grip

709400625

$196.00

205

Torx Cutting Screw, M4 X 10

250000453

$4.00

210

Heated Throttle Grip

709402720

$290.00

215

Housing Support

515175283

$8.43

220

Spring

709401937

$20.00

230

Bushing

709401801

$3.00

240

Socket Screw, M4 X 25

205042594

$2.00

242

Flat Washer 4 mm

234040600

$0.46

250

Handlebar End-Piece RH

709401800

$27.00

260

Handlebar End Piece LH

709400793

$28.00

270

Screw-Socket Hd.Din.912

205061054

$2.00

280

CRYSTAL SILVER CAP - Call your local BRP dealership | RS STD

709400680

Unavailable

280

Deep Black Cap | Model-RS S

709400923

$14.00

280

Deep Black Cap | Model-RS S

709400923

$14.00

280

DEEP BLACK CAP - Call your local BRP dealership | Model-RT LTD

709401292

Unavailable

500

Torx Screw M8 X 16

250000751

$4.64

510

Power Steering

709401564

$1,685.00

510

Power Steering Asssembly | Man. Date Aug 1rst 2016 And Up

709402304

$1,267.00

520

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

530

PITMAN ARM - Call your local BRP dealership

709401417

Unavailable

540

Flat Washer, 12 mm

250200113

$4.28

550

Hex. Elastic Hex. Nut M12

250100089

$0.39

560

Sensor Sleave

709401527

$3.00

570

SENSOR SUPPORT - Call your local BRP dealership

709401574

$27.00

580

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

590

Tie Rod Ass'y

709401821

$159.00

600

Hardened Washer

706200281

$2.34

610

RH Knuckle

709401864

$190.00

620

LH Knuckle

709401865

$196.00

630

Hex. Elastic Hex. Nut M12

250100089

$0.39

670

Hex. Flange Screw M8 X 35

250001021

$3.61

680

Hex. Nut M8

232081417

$3.00

681

Washer

503189157

$3.20
