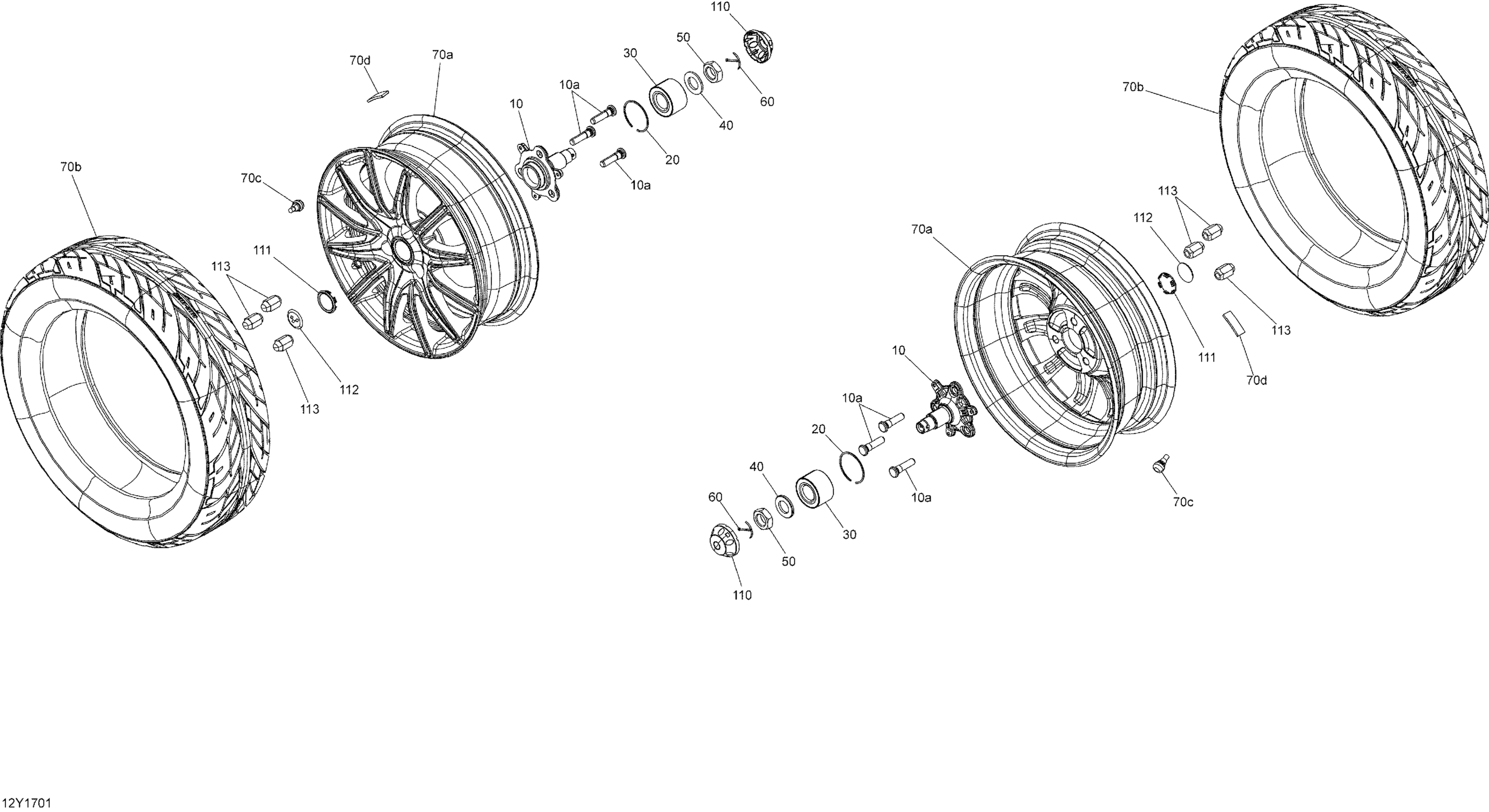

Can-Am RT, 2017 Drive System, Front - All Models Diagram

Hub | Included 10 to 10b

706202435

$201.00

Wheel Stud

250300058

$5.00

Circlip

293370019

$4.98

Ball Bearing

293350150

$51.93

Flat Washer

250200163

$3.40

Hex. Jam Nut M24

250100170

$12.00

Cotter Pin

250400047

$2.00

CHROME FRONT WHEEL - Call your local BRP dealership | Model-Chrome

219800372

Unavailable

RIM_15 INCH M-519 X 5 - Call your local BRP dealership | Model-RT STD

706201328

Unavailable

Carbon Black, Front Wheel | Model-RT with Rim Carbon Black

706202214

$520.00

Front Tire 165/55R15

706204795

$116.00

Rim Valve With Cap

705400193

$6.69

Self Adhesive Weight, 5G 20mm

705502106

$4.35

Wheel Cap

705401883

$6.00

Black, Wheel Cap

705400388

$18.00

Spyder Logo, 38mm

704905260

$11.00

Chrome, Wheel Nut M12 X 1.5

250100154

$6.00

Chrome, Wheel Nut M12 X 1.5

250100154

$6.00

Black, Wheel Nut M12 X 1.5

250100218

$3.00
