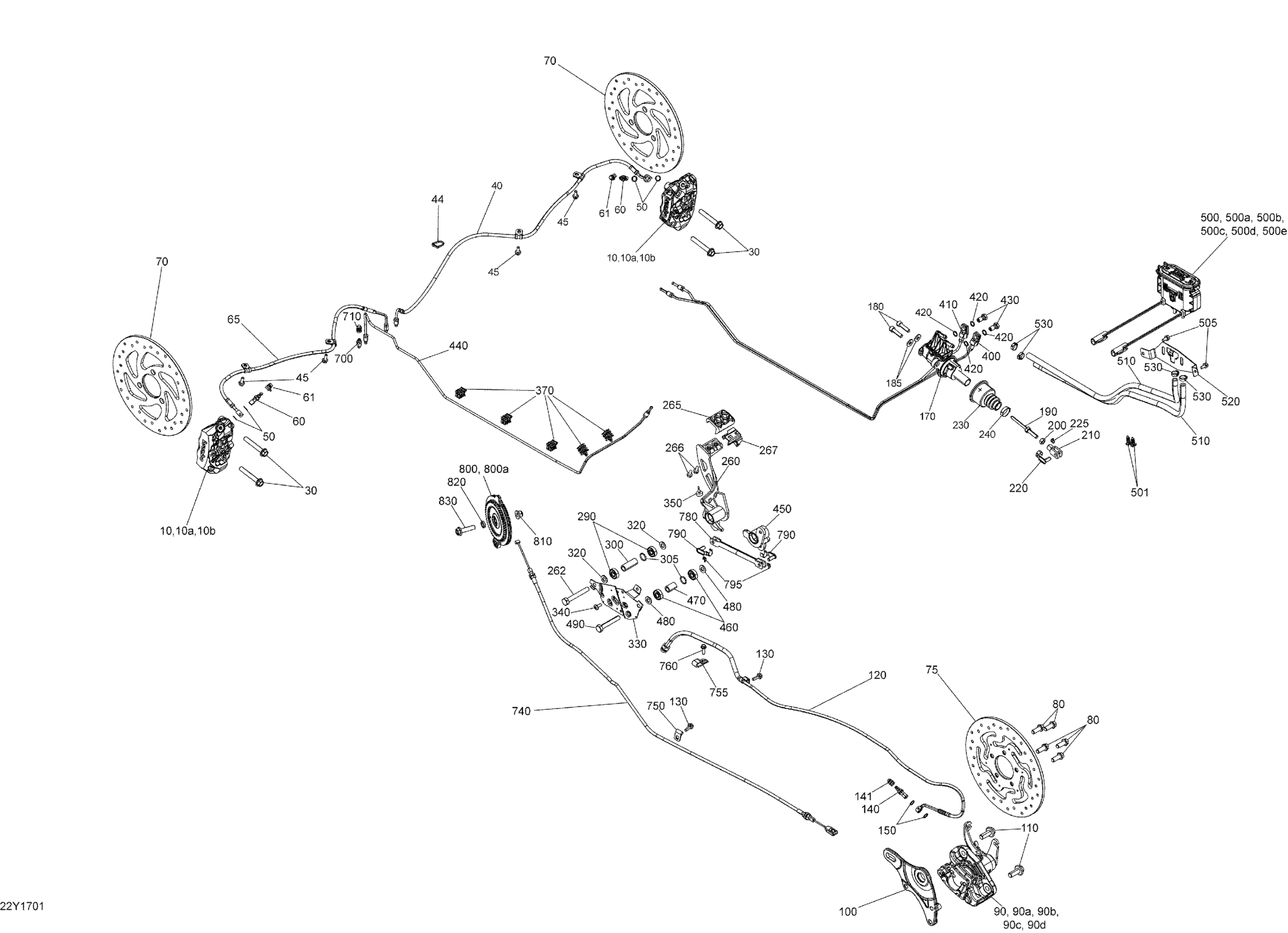

Can-Am RT, 2017 Hydraulic Brake - All Models Diagram

#

Description
Price

10>10b

LH Front Caliper | Includes 10 to 10b

705600987

$381.00

10>10b

RH Front Caliper | Includes 20 to 20b

705600988

$381.00

10a

Brake Pad Kit

219800237

$79.00

10b

Spring/Pin/Clip Kit

219800238

$27.00

30

Hex Flange Screw M10 X 65

207506556

$7.00

40

RH Front Hose | RT

705601252

$61.00

44

Tie Wrap 368 mm

293750008

$0.85

45

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

50

Washer

414920600

$1.52

60

Banjo Bolt/ Bleeder

705601201

$17.66

61

Bleeder Bolt Cap

705601190

$4.28

65

LH Front Hose | RT

705601253

$61.00

70

Front Brake Disk

705601631

$154.00

75

Rear Brake Disk

705601632

$245.00

80

Hex. Flange Screw M10 X 25

250001054

$12.48

90>90d

Rear Caliper | Includes 90 to 90d

705600989

$498.00

90a

Brake Pad Kit

219800239

$79.00

90b

Spring/Pin/Clip Kit

219800240

$36.00

90c

Rear Cable Support Kit

219800241

$41.00

90d

Rear Dust Cover

219800242

$33.00

100

Rear Caliper Support

705601262

$56.00

110

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

120

Brake Line

705601501

$75.00

130

Hex. Flange Screw M6 X 20

207662054

$0.83

140

Banjo Bolt/ Bleeder

705601201

$17.66

141

Bleeder Bolt Cap

705601190

$4.28

150

Washer

414920600

$1.52

170

Tandem Cylinder Master

705600722

$370.00

180

Screw-Socket Cap S.Grip M8 X 30

250001117

$2.00

185

Washer

506151245

$0.91

190

Piston Rod

705600468

$23.00

200

Hex. Nut M8

232081414

$0.60

210

Yoke

705600100

Unavailable

220

Rod Clamp

250400064

$7.00

225

Cotter Pin

371800700

$0.98

230

Bellow

705600716

$12.00

240

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

260

Brake Pedal, Painted | RT

705601312

$85.00

260

Carbon Black, Brake Pedal | RT S SM6

705601315

$99.00

260

Carbon Black, Brake Pedal

705601510

$110.00

260

Carbon Black, Brake Pedal

705601510

$110.00

262

Hexagonal Screrw S.GRIP M10 X 75 | RT LTD

207207544

$4.00

262

Hexagonal Screrw S.GRIP M10 X 75 | RT LTD

207207544

$4.00

265

Rubber Pad

705004933

$21.00

266

Hex. Flange Screw M6 X 12

210261250

$1.56

267

Pedal Guard | RT LTD

705601217

$12.00

267

Pedal Guard | RT LTD

705601217

$12.00

290

Bearing

705600458

$7.03

300

Bushing | RT

705601275

Unavailable

300

Bushing | RT

705601275

Unavailable

300

Bushing | RT LTD

705601276

$7.00

300

Bushing | RT LTD

705601276

$7.00

305

O-Ring

293300191

$1.00

305

O-Ring

293300191

$1.00

320

Washer

503183800

$3.20

330

Tab Lock | RT

705601346

$21.00

340

Torx Head Screw M6 X 16

250000717

$1.74

350

Rubber Stopper

708000759

$3.61

370

Anchorage Tube

705601987

$5.00

400

Tandem Rigid Tube | Includes 400 to 400a

705601157

$32.00

410

Tandem Rigid Tube | Includes 410 to 410a

705601158

$32.00

420

Washer

414920600

$1.52

430

Banjo Bolt

507032551

$5.52

440

Rear Brake Rigid Tube

705601159

$32.00

450

Rocker Arm | RT

705600855

$50.00

460

Bearing

705600458

$7.03

470

Bushing

705600541

$15.00

480

Washer

503183800

$3.20

490

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.31

500>500e

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$110.74

500a

Diaphragm Cover Ass'y

219800350

$17.66

500b

Diaphragm Cover Ass'y

219800350

$17.66

500c

Oil Level Sensor

705601073

$50.74

500d

Spindle Lock

705601294

$14.37

500e

Push Nut | Not shown

211100002

$0.83

501

Connector Holder

710002033

$3.22

505

Hex. Flange Screw M6 X 12

210261250

$1.56

510

HOSE 8MM 3000MM LONG - Call your local BRP dealership

219704417

Unavailable

520

Bracket

705601486

$14.00

530

Crimp Clamp, 15.3-706R

293650047

$2.64

700

Bleeder Screw

705600502

$11.06

710

Bleeder Bolt Cap

705601190

$4.28

740

Parking Brake Cable

707001058

$67.00

750

Bracket

415052400

$4.12

755

Open Clamp

515175507

$1.47

760

Hexagonal Head Screw

210262050

$1.74

780

Connecting Rod | RT

705600959

$55.00

790

Rod Clamp

250400064

$7.00

795

Cotter Pin

371800700

$0.98

800>800a

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$87.66

800a

Bearing

705600458

$7.03

810

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

820

Bushing

293900087

$7.60

830

Hex. Flange Screw M10 X 40 | Includes 783 to 783j

207604054

$7.00
