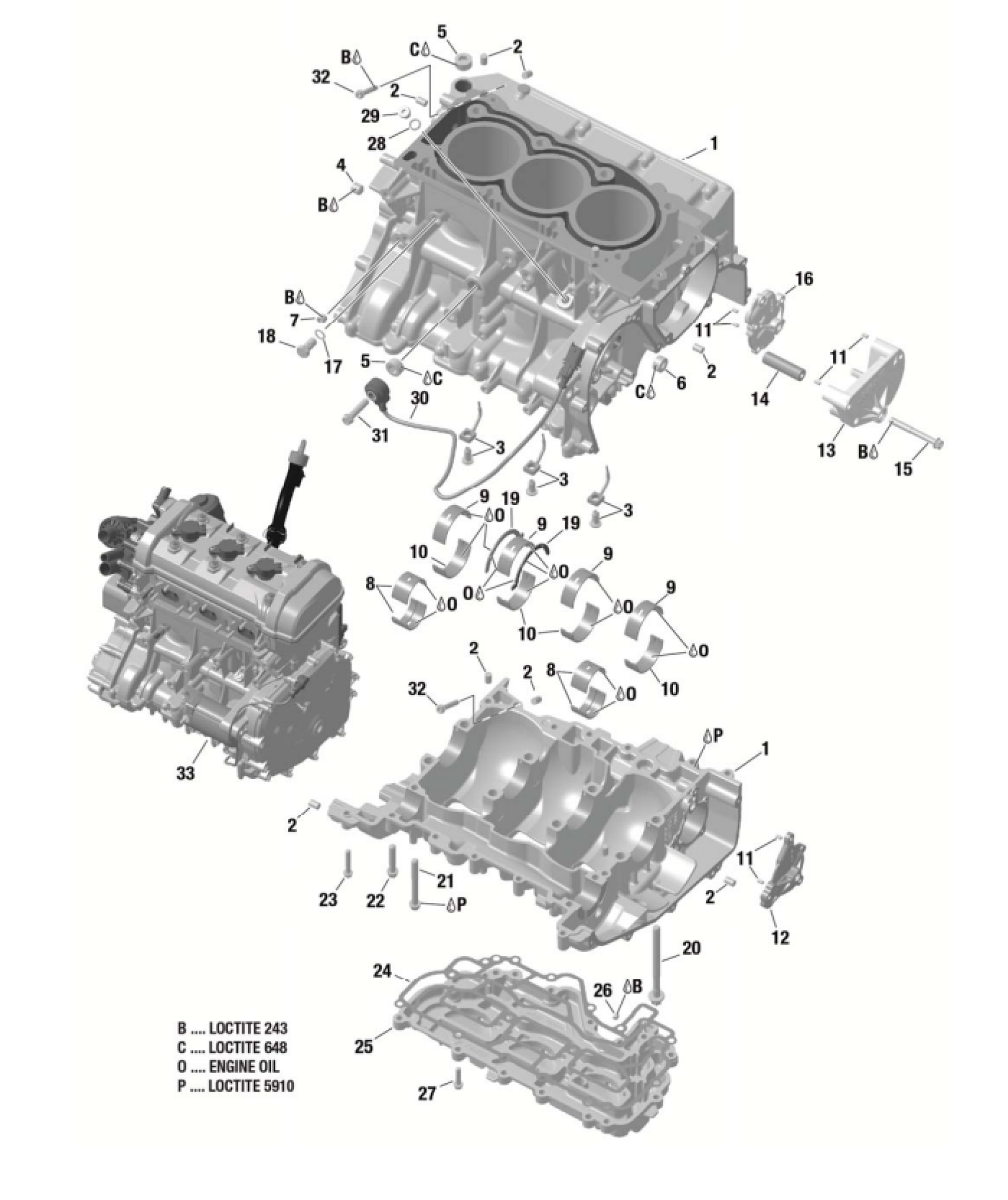

Can-Am RT, 2017 Crankcase - All Models Diagram

#

Description
Price

1>18

Crankcase Ass'y

420686424

$2,672.99

2

Center Pin 8 X 12

420632010

$4.09

3

Oil Spraying Jet

420656972

$25.49

4

Plug Screw M12x1,5

420840658

$7.69

5

Plug Screw M20 X 1.5

420641317

$14.49

6

Plug Screw M18 X 1.5

420441050

$13.22

7

Plug Screw M10 X 1

420641323

$14.49

8

Plain Bearing

420933858

$27.49

9

Plain Bearing

420233848

$28.49

10

Plain Bearing

420233846

$28.49

11

Needle Pin

420929075

$2.19

12

Oil Pump Cover

420210260

$33.99

13

Bearing Bracket

420210868

$51.99

14

Intermediate Gear Shaft

420249011

$50.99

15

Torx Flange Screw M8 X 65

420440403

$2.19

16

Oil Pump Cover

420210220

$33.99

17

Oil Seal

420230150

$2.85

18

Bleeder Screw M10 X 1

420441630

$15.99

19

Half-Ring

420933475

$11.99

20

Torx Flange Screw M9 X 113

420940945

$13.99

21

Torx Flange Screw M8 x 70

420441085

$4.65

22

Torx Flange Screw M8 x 40

420440485

$5.40

23

Torx Flange Screw M6 X 35

420440274

$1.49

24

Gasket

420250610

$15.89

25

Oil Sump

420611740

$163.99

26

Plug Screw M8 x 1

420941614

$6.98

27

Torx Flange Screw M6 X 25

420440234

$3.09

28

Oil Seal

420230150

$2.85

29

Plug Screw M10 X 1

420641733

$12.99

30

Noise Sensor

420664031

$64.99

31

Torx Flange Screw M8 X 35

420641188

$7.59

32

Torx Flange Screw M6 X 35

420440274

$1.49

33

Engine

420014032

$12,720.00

33

Engine

420014032

$12,720.00

33

Engine

321403211

$12,720.00

33

Engine

321403211

$12,720.00
