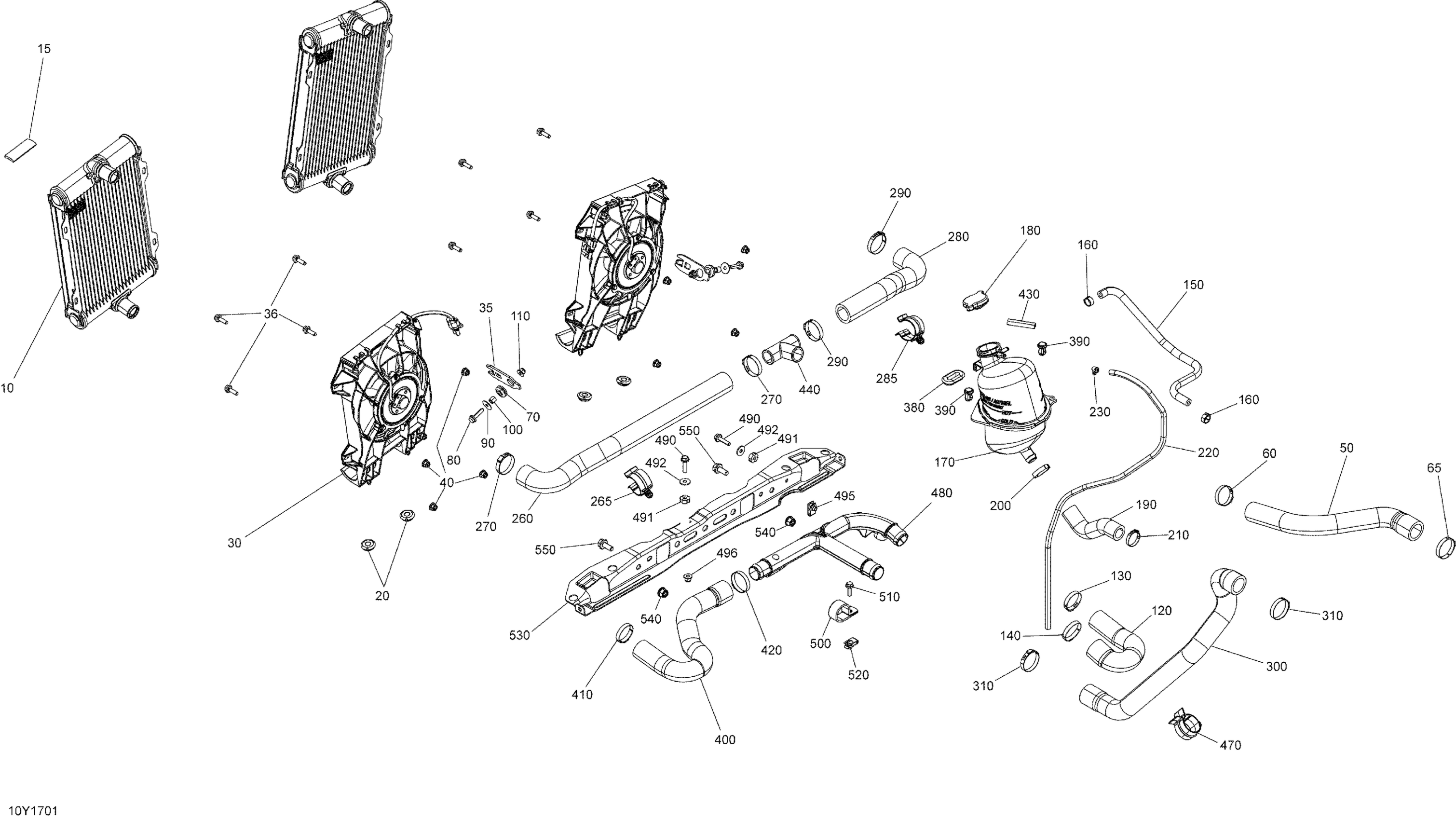

Can-Am RT, 2017 Cooling System - All Models Diagram

#

Description
Price

10

Radiator

709200314

$433.99

15

Pad

293830159

$7.19

20

Grommet

705003264

$4.09

30

Fan Assembly

709200555

$289.99

35

Support

709200404

$7.19

36

Hex. Flange Screw M6 X 20

207662044

$2.00

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

50

Upper Formed Water Pump Hose

709200871

$32.99

60

Oetiker Gear Clamp 36.1MM

509000045

$8.29

65

Oetiker Gear Clamp

293650199

$9.69

70

Grommet

709000582

$4.69

80

Hex. Flange Screw M6 X 25

207662544

$0.64

90

Flat Washer

224060201

$1.26

100

Bushing

293900105

$7.65

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

120

RH Lower Radiator Hose

709200879

$31.99

130

Oetiker Gear Clamp 36.1MM

509000045

$8.29

140

Oetiker Gear Clamp

293650199

$9.69

150

Formed Hose

709200324

$30.99

160

Oetiker Gear Clamp

293650025

$3.09

170

Coolant Tank

709200749

$99.99

180

Pressure Cap

509000187

$29.49

190

Lower Formed Coolant Tank Hose

709200874

$38.99

200

Oetiker Gear Clamp

293650165

$5.39

210

Tridon Gear Clamp

293650051

$4.19

220

Polyurethane Hose 10000Mm Long

219704410

$56.99

230

Spring Clamp

414554800

$0.88

260

Formed Hose

709200329

$31.99

265

Clip

275500951

$8.47

270

Oetiker Gear Clamp 36.1MM

509000045

$8.29

280

Formed Hose

709200323

$31.99

285

Clip

275500951

$8.47

290

Oetiker Gear Clamp 36.1MM

509000045

$8.29

300

Lower Formed Water Pump Hose

709200877

$63.49

310

Oetiker Gear Clamp

293650199

$9.69

380

Oblong Grommet

705003668

$5.79

390

Tuflok Plastic Rivet

293150230

$1.47

400

LH Lower Radiator Hose

709200882

$31.99

410

Oetiker Gear Clamp 36.1MM

509000045

$8.29

420

Oetiker Gear Clamp

293650199

$9.69

430

Trim 1000Mm Long

219704354

$15.99

440

T-Fitting

509000219

$15.89

470

Retainer

275500590

$9.69

480

Connector

709200468

$19.49

490

Hex. Flange Screw M6 X 25

207562544

$1.69

491

Shock Washer

293830160

$4.23

492

Flat Washer 6 mm

234062410

$0.77

495

Panel Nut M6 X 1.0

250100198

$2.11

496

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

500

Open Clamp

293750035

$4.29

510

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

520

Panel Nut M6 X 1.0

250100198

$2.11

530

Support

709200400

$42.49

540

Hex. Flange Elastic Nut M8

233281434

$2.11

550

Hex. Flange Screw M8 X 20

207682044

$1.15
