Partiron

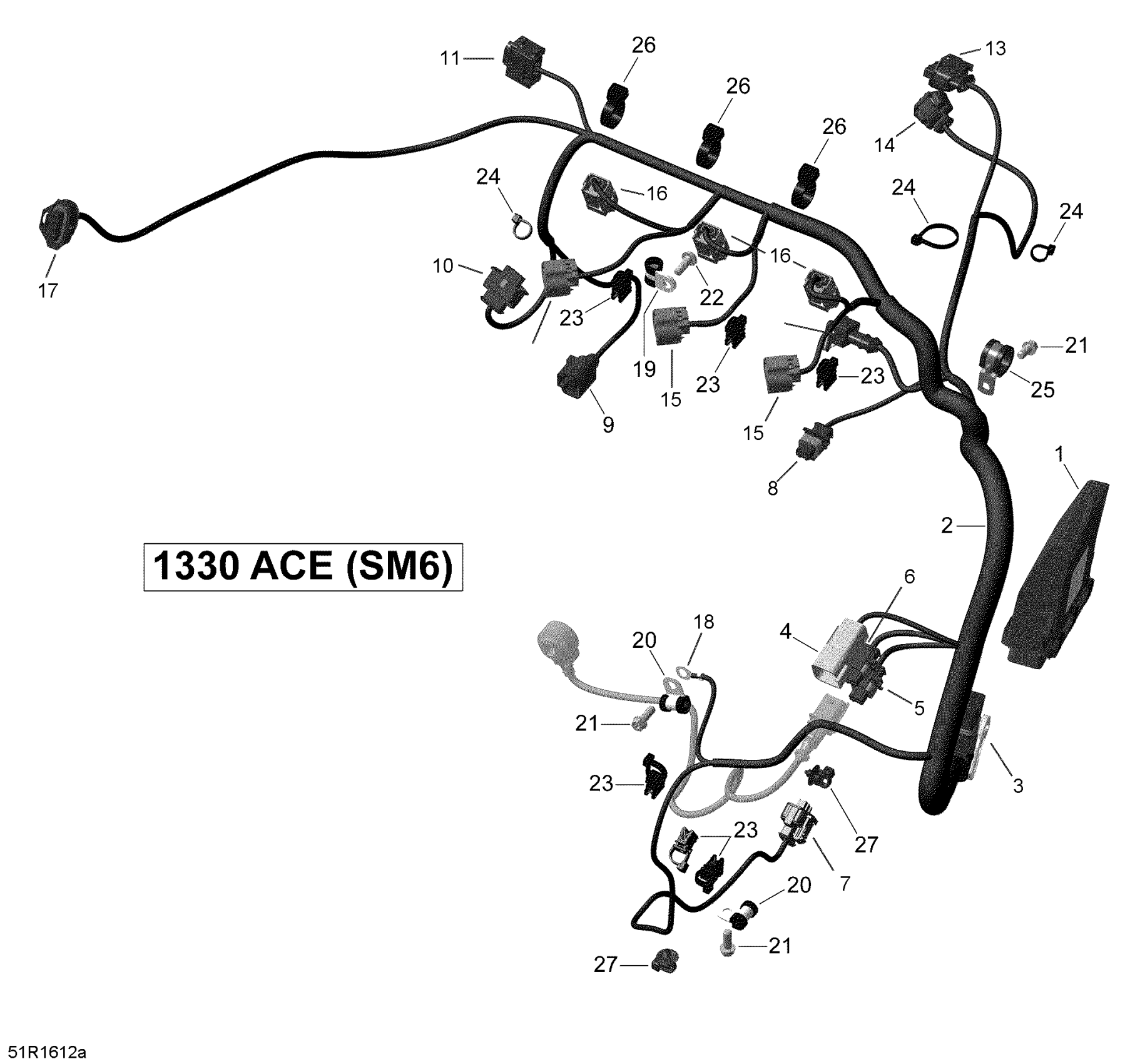

Can-Am RT, 2016 Engine Harness and Electronic Module - SM6 Diagram

#

Description
Price

1

ELECTRONIC MODULE - Call your local BRP dealership

420666642

Unavailable

2>18

Wiring Harness | Includes 2 to 4

420266783

$439.99

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Male Terminal Housing, 6 Circuits

710001539

$15.57

5

Male Housing, 2 Circuits

278001005

$15.57

6

Male Housing, 2 Circuits

278001005

$15.57

7

Housing Connector, 3 Circuits

278001830

$33.55

8

Male Housing, 2 Circuits

278001005

$15.57

9

Housing

710001184

$9.95

10

Housing Connector, 3 Circuits

278001830

$33.55

11

Housing

710003731

$7.15

12

Female Terminal Housing, 2 Circuits

415128500

$6.31

13

Male Connector

515176410

$51.97

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Connector 3 Positions

710002516

$10.52

16

Female Housing

515176129

$27.58

17

Male Connector

515176410

$51.97

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Open Clamp

414176000

$1.81

20

Clamp

420853414

$14.92

21

Hex. Flange Screw M6 X 12

420440147

$1.91

22

Torx Flange Screw M6 X 16

420641588

$1.74

23

Cable Clamp 150mm

420951650

$3.55

24

Tie Rap

420866714

$1.56

25

Cable Clamp

420851493

$17.13

26

Tie-Rap

420866716

$1.56

27

Tie-Rap With Mount

420951341

$6.07
