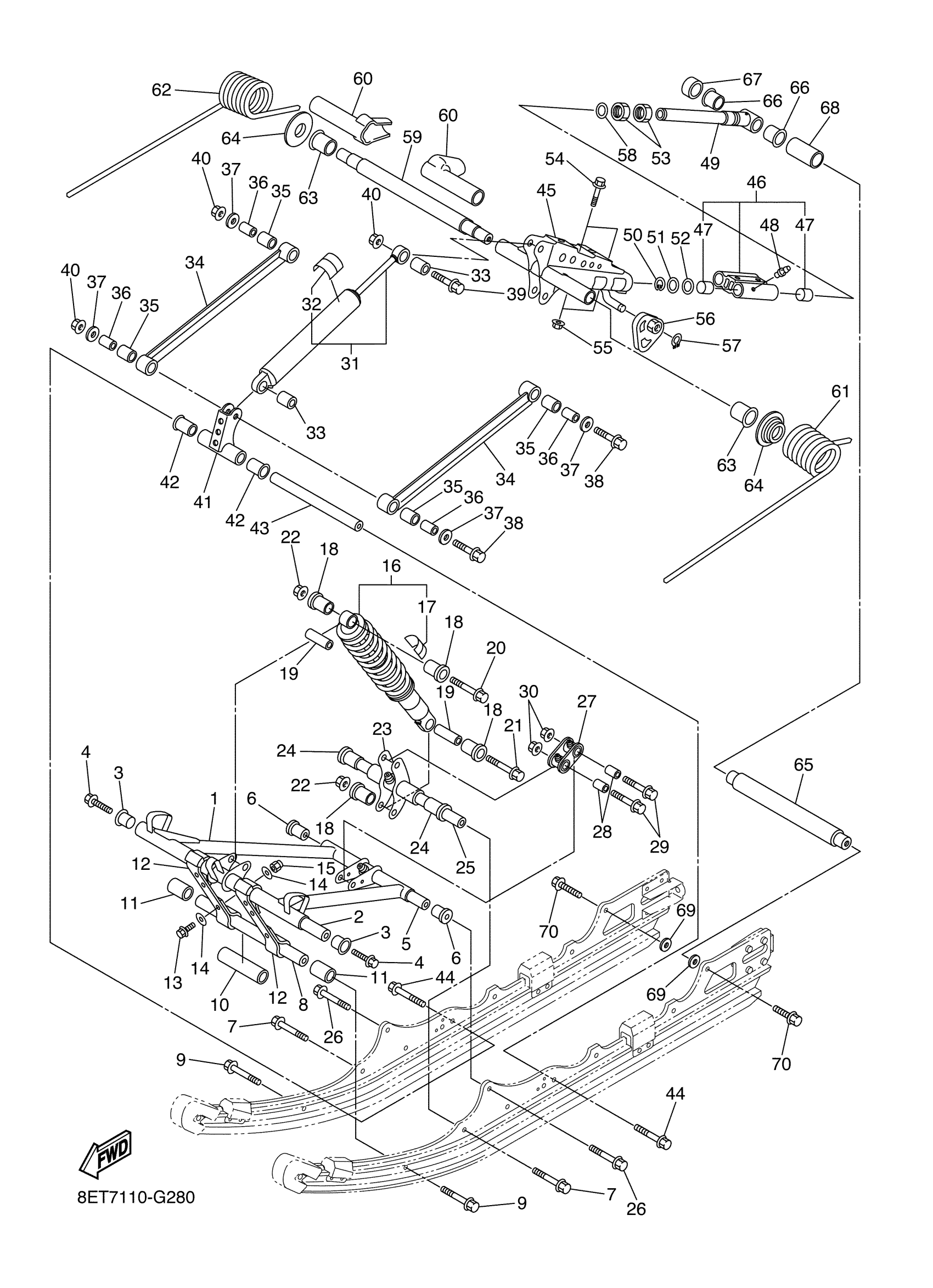

Yamaha RST90YS (RS VENTURE) 8ET9 2009 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

ARM, PIVOT 1

8ET-47331-01-00

$193.38

2

SHAFT 1

8ES-47465-10-00

$83.46

3

BUSH

90386-22001-00

$6.08

4

BOLT (8V0)

90109-10771-00

$5.00

5

SHAFT 4

8ES-47486-00-00

$36.48

6

COLLAR

90387-10022-00

$16.62

7

BOLT, FLANGE

90105-10092-00

$4.20

8

SHAFT 3

8ES-47485-00-00

$50.74

9

BOLT, FLANGE

90105-10092-00

$4.20

10

COLLAR

90387-19002-00

$5.82

11

COLLAR

90387-19001-00

$6.82

12

STOPPER 1

8ET-47495-00-00

$59.82

13

BOLT, HEXAGON

97017-06025-00

$2.98

14

WASHER, PLATE

90201-06081-00

$6.18

15

NUT, NYLON

95707-06300-00

$3.20

16

SHOCK ABSORBER 2

8GW-47481-40-00

$538.99

17

LABEL, WARNING

4AA-22259-60-00

$6.02

18

BUSH, SOLID(8CM)

90381-14101-00

$7.48

19

COLLAR (8U7)

90387-105G5-00

$7.35

20

BOLT, FLANGE(4GB)

95817-10045-00

$4.52

21

BOLT(88R)

90101-10738-00

$6.28

22

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

23

BRACKET, ARM PIVOT

8ES-47349-01-00

$61.26

24

BUSH

90386-20001-00

$8.97

25

SHAFT 5

8ES-47487-00-00

$43.08

26

BOLT, FLANGE

90105-10092-00

$4.20

27

BRACKET 2

8FK-47416-01-00

$49.37

28

COLLAR

90387-10024-00

$18.18

29

BOLT, FLANGE (8V9)

95812-10045-00

$3.54

30

NUT, S/L FLANGE

95602-10200-00

$2.29

31

SHOCK ABSORBER

8ET-47480-40-00

$667.69

32

LABEL, WARNING

4AA-22259-60-00

$6.02

33

COLLAR

90387-10023-00

$17.41

34

ROD, RELAY

8FK-47494-00-00

$57.01

35

BUSH

90386-16001-00

$9.88

36

COLLAR (8K4)

90387-101A1-00

$3.78

37

WASHER, PLATE

90201-10043-00

$1.88

38

95812-10090

95812-10090-00

$3.49

39

BOLT, FLANGE

95812-10040-00

$7.42

40

NUT, S/L FLANGE

95602-10200-00

$2.29

41

BRACKET, ARM PIVOT

8FK-47349-10-00

$44.14

42

BUSH

90386-20001-00

$8.97

43

SHAFT 5

8ES-47487-00-00

$43.08

44

BOLT, FLANGE

90105-10092-00

$4.20

45

ARM, PIVOT 2

8ET-47332-01-00

$200.43

46

STOPPER, CONT. 1

8ES-4745D-00-00

$128.48

47

BUSH, SOLID

90380-24001-00

$8.38

48

NIPPLE, GREASE

93700-06M03-00

$7.15

49

ROD, CONTROL 1

8ET-4745A-00-00

$104.57

50

CIRCLIP

99009-24400-00

$7.49

51

WASHER, PLATE

90201-24015-00

$5.74

52

WASHER, PLATE

90202-25001-00

$0.91

53

STOPPER, ADJUSTING NUT

8ES-48142-00-00

$27.05

54

BOLT, FLANGE(87Y)

95817-10055-00

$4.54

55

NUT, S/L FLANGE

95602-10200-00

$2.29

56

HOOK 2

8ES-47447-00-00

$17.94

57

CIRCLIP(13H)

99009-14400-00

$2.48

58

WASHER, PLATE

90202-25002-00

$9.71

59

SHAFT 2

8FM-47475-01-00

$237.20

60

PROTECTOR

8ES-47445-00-00

$20.12

61

SPRING, REAR 1

8ET-47473-00-00

$270.51

62

SPRING, REAR 2

8ET-47474-00-00

$373.18

63

BUSH, SOLID(8CJ)

90381-28108-00

$12.18

64

PLATE, GUIDE

8ES-47467-00-00

$16.89

65

SHAFT, PIVOT

8ES-47337-00-00

$51.05

66

BUSH

90386-25001-00

$5.60

67

COLLAR

90387-26002-00

$29.63

68

COLLAR

90387-26003-00

$5.78

69

WASHER, PLATE

90201-10028-00

$5.72

70

BOLT, FLANGE

95817-10030-00

$6.17
