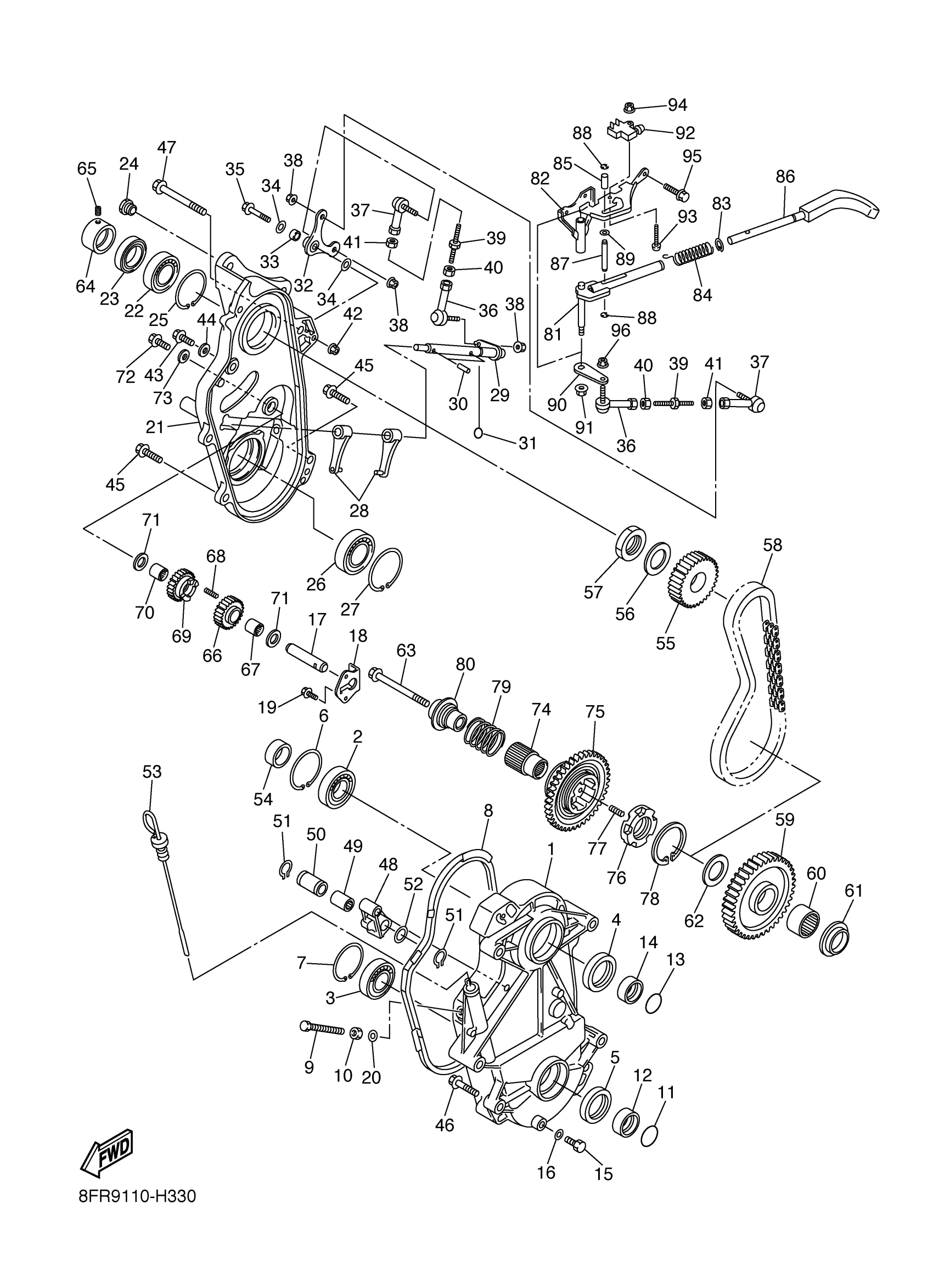

Yamaha RST90YS (RS VENTURE) 8ET9 2009 TRACK DRIVE 2 Diagram

#

Description
Price

1

HOUSING, CHAIN

8FP-47541-10-00

Unavailable

2

BEARING (5X5)

93306-20627-00

$66.08

3

BEARING

93306-20592-00

$50.25

4

OIL SEAL

93102-40014-00

$13.69

5

OIL SEAL

93102-35010-00

$19.52

6

CIRCLIP(MF1)

99009-62500-00

$6.23

7

CIRCLIP(26H)

99009-52500-00

$10.68

8

RING, HOUSING

8FP-47558-10-00

$67.38

9

BOLT, HEXAGON (8F3)

90101-10357-00

Unavailable

10

NUT (682)

95380-10700-00

$5.78

11

O-RING (169)

93210-25071-00

$7.51

12

COLLAR(8CJ)

90387-2508C-00

$39.00

13

O-RING (498)

93210-29282-00

$6.17

14

COLLAR

90387-30004-00

$21.31

15

BOLT, HEXAGON

97017-08016-00

$6.20

16

WASHER, SEAL(8AB)

90210-08017-00

$6.91

17

SHAFT, 1

8CW-1761A-00-00

$58.02

18

PLATE

8CW-47591-00-00

$11.85

19

BOLT, FLANGE

95817-06016-00

$1.49

20

WASHER, PLATE(56J)

90201-106H5-00

$7.05

21

CAP, HOUSING

8HF-47543-00-00

$316.92

22

BEARING

93306-20532-00

$56.05

23

OIL SEAL

93102-35473-00

$28.01

24

NUT(8CJ)

90179-10679-00

$6.71

25

CIRCLIP(26H)

99009-52500-00

$10.68

26

BEARING

93306-00711-00

$49.06

27

CIRCLIP(MF1)

99009-62500-00

$6.23

28

FORK, SHIFT 1

8GL-18511-01-00

$41.30

29

SHAFT

8FR-18197-00-00

$34.03

30

PIN, SPRING(8DA)

91609-50022-00

$6.78

31

O-RING (328)

93210-12131-00

$6.78

32

LEVER

8FR-18198-00-00

$22.05

33

COLLAR

90387-06197-00

$6.17

34

WASHER, PLATE

90201-06033-00

$2.74

35

BOLT, FLANGE

95817-06040-00

$4.54

36

JOINT, UNIVERSAL 2

J45-23845-00-00

$42.57

37

JOINT 2

88T-18157-00-00

$36.11

38

NUT, U FLANGE

95604-06200-00

$2.35

39

ROD, SHIFT

26H-18115-00-00

$13.22

40

NUT, HEXAGON

95380-06600-00

$4.13

41

NUT (2H9)

90170-06228-00

$5.20

42

NUT, U FLANGE

95604-06200-00

$2.35

43

BOLT, FLANGE

95817-06016-00

$1.49

44

WASHER, SEAL (7G5)

90210-06006-00

$5.72

45

BOLT, FLANGE

95817-08035-00

$6.68

46

BOLT, FLANGE(4GB)

95817-10045-00

$4.52

47

BOLT,FLANGE

95817-10090-00

$6.86

48

HOLDER

8ES-47613-00-00

$41.32

49

BEARING

93311-32685-00

$62.54

50

COLLAR

90387-22005-00

$30.49

51

CIRCLIP

99009-26400-00

$6.94

52

WASHER, PLATE

90201-266P2-00

$2.62

53

LEVEL, OIL

8FA-47546-01-00

$17.17

54

COLLAR

90387-30005-00

$19.31

55

SPROCKET, CHAIN DRIVE

8FA-17682-20-00

$47.92

56

WASHER, CONICAL SPRING

90208-28001-00

Unavailable

57

NUT

90170-28009-00

$16.25

58

CHAIN

94890-09070-00

$139.38

59

SPROCKET, CHAIN DRIVEN

8FB-47587-90-00

$176.35

60

BEARING, CYLINDRICAL(8DA)

93317-33179-00

$43.08

61

COLLAR(8DA)

90387-2008G-00

$23.71

62

WASHER, PLATE(8DA)

90201-320S3-00

$7.34

63

BOLT, FLANGE

90105-10369-00

$10.05

64

COLLAR

8HF-47536-00-00

$25.80

65

BOLT, SET

90113-06006-00

$3.60

66

SPROCKET, DRIVE

8FB-17692-00-00

$81.86

67

BEARING, CYLINDRICAL(8DA)

93317-21578-00

$37.81

68

SPRING COMPRESSION278185450000

90501-06022-00

$6.17

69

REVERSE GEAR SUB-ASSY 1 (RGEAR

8CW-W1714-00-00

$251.37

70

BEARING, CYLINDRICAL(8DA)

93317-21578-00

$37.81

71

WASHER PLATE (3L6)

90201-16245-00

$8.51

72

BOLT, FLANGE

95817-06016-00

$1.49

73

WASHER, SEAL (7G5)

90210-06006-00

$5.72

74

JOURNAL 1

8CW-47571-00-00

$150.66

75

GEAR, REVERSE WHEEL 1

8CW-17243-00-00

$304.40

76

DOG, TRANSMISSION SHIFT

8CW-17492-00-00

$193.49

77

SPRING, COMPRESSION(8DA)

90501-066J5-00

$1.75

78

CIRCLIP(8DA)

93440-39175-00

$19.00

79

SPRING, COMPRESSION(8FA1)

90501-260A0-00

$4.74

80

COLLAR

8GL-48566-00-00

$75.78

81

ARM, SHIFT

8ER-18112-01-00

$84.31

82

GUIDE, PLATE STOPPER

8ER-18161-00-00

$56.42

83

CIRCLIP(13H)

99009-18400-00

$6.68

84

SPRING, COMPRESSION (8FA1)

90501-130A0-00

$2.20

85

COLLAR (8FA1)

90387-06059-00

$26.74

86

KNOB, LEVER

8ER-18174-00-00

$66.52

87

PIN (8FA1)

90249-06002-00

$12.22

88

CIRCLIP (J10)

93410-06053-00

$5.62

89

WASHER, PLATE (8U7)

90201-067F9-00

$2.78

90

PLATE, SHIFT ARM

8ER-1811A-01-00

$5.32

91

NUT,SELF-LOCKING

95607-06200-00

$10.25

92

SWITCH

J51-82817-00-00

$121.26

93

SCREW, BINDING

98907-04020-00

$0.42

94

NUT, U (7LY)

95617-04100-00

$6.92

95

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

96

NUT, U FLANGE

95604-06200-00

$2.35
