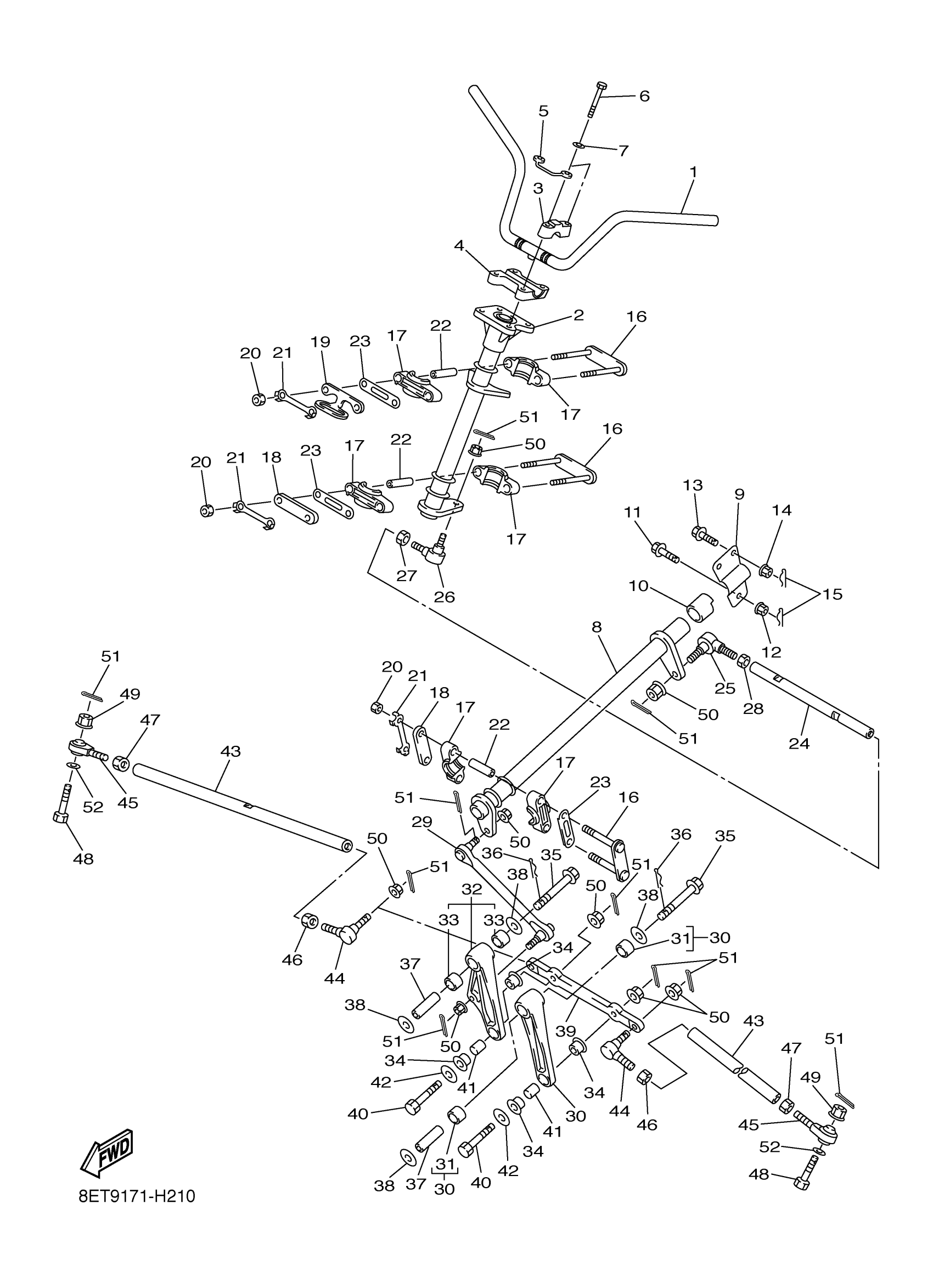

Yamaha RST90YS (RS VENTURE) 8ET9 2009 STEERING Diagram

#

Description
Price

1

HANDLE COMP.

8EK-26110-11-00

$56.82

2

COLUMN, STEERING 2

8FA-23813-01-00

$150.55

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

4

HOLDER, HANDLE LOWER

8ED-23442-00-00

$49.85

5

HOLDER

8DF-23857-00-00

$55.91

6

BOLT, HEXAGON

97017-08055-00

$6.88

7

.. WASHER, PLATE

92990-08600-00

$2.36

8

COLUMN, STEERING

8FA-23811-00-00

$84.42

9

COVER, STEERING

8FA-23818-02-00

$8.58

10

BEARING, STEERING UPPER

8FA-23873-01-00

$5.35

11

BOLT, WASHER BASED(4KD)

90105-10728-00

$7.49

12

NUT, S/L FLANGE

95602-10200-00

$2.29

13

BOLT, WASHER BASED(JA1)

90105-08552-00

$3.78

14

NUT, SELF-LOCKING

95602-08200-00

$2.77

15

CLIP 136253750000

90468-12006-00

$5.10

16

HOLDER, BEARING

8FA-23872-00-00

$13.14

17

PLANE BEARING, STEERING

8FA-23812-00-00

$5.66

18

HOLDER 2

8FA-23867-00-00

$2.49

19

HOLDER, BEARING

8CJ-23872-00-00

$11.85

20

NUT(6L2)

95333-08600-00

$3.20

21

WASHER, LOCK 1

1UY-23894-01-00

$6.86

22

COLLAR

8HF-2412G-00-00

$6.18

23

WASHER, PLAIN

8FA-23843-00-00

$3.25

24

ROD, STEERING

8FA-23828-00-00

$15.38

25

JOINT, UNIVERSAL 3

8CR-23847-00-00

$48.17

26

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

27

NUT (3WP1)

95317-10700-00

$6.17

28

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

29

ROD, STEERING RELAY

8FA-23821-00-00

$148.11

30

ARM PIVOT ASSY

8FG-2389K-00-00

$117.60

31

BUSH, FORMED

90383-17001-00

$9.38

32

ARM PIVOT ASSY. , 2

8FA-2389M-00-00

$136.83

33

BEARING

93317-41785-00

$39.23

34

BUSH, SOLID

90381-14001-00

$3.58

35

BOLT, FLANGE

90105-12017-00

$12.82

36

CLIP, RING

8FA-2384N-00-00

$3.45

37

COLLAR

8FA-2412G-00-00

$10.26

38

WASHER, PLATE

90201-121U3-00

$5.45

39

ARM, IDLER

8FU-23826-00-00

$78.48

40

BOLT, PIN HOLE (8M6)

90102-10044-00

$12.18

41

COLLAR

90387-10070-00

$25.31

42

WASHER PLATE (3L6)

90201-10742-00

$6.80

43

ROD, TIE

8ES-23831-00-00

$45.66

44

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

45

JOINT, UNIVERSAL 3

8FA-23847-00-00

$64.14

46

NUT (3WP1)

95317-10700-00

$6.17

47

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

48

BOLT, PIN HOLE (8M6)

90102-10044-00

$12.18

49

NUT, NYLON

95707-10300-00

$6.68

50

NUT, FLANGE(3BM)

95704-10500-00

$1.71

51

PIN, COTTER

91490-20025-00

$1.31

52

WASHER PLATE (3L6)

90201-08759-00

$2.52
