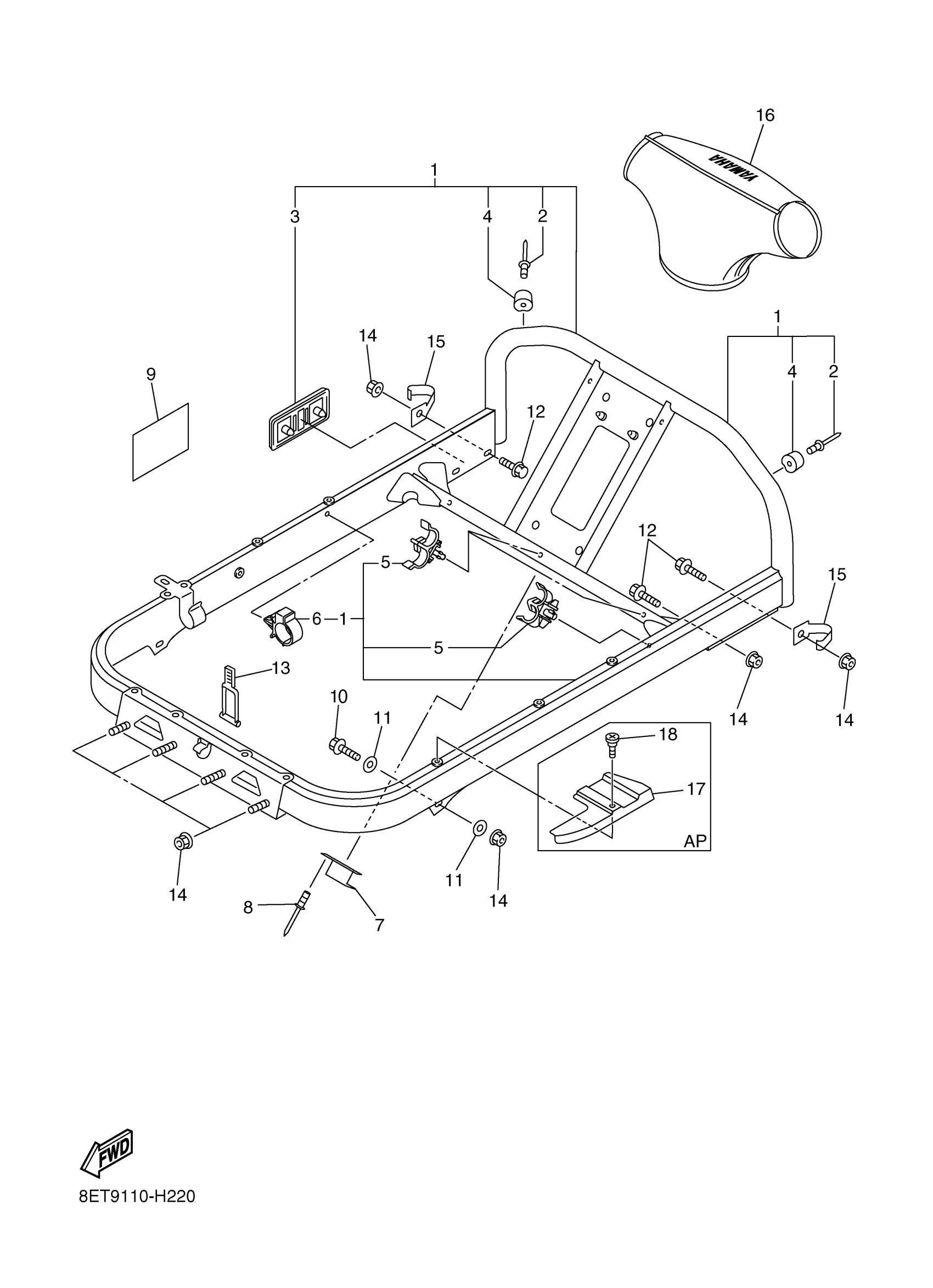

Yamaha RST90YS (RS VENTURE) 8ET9 2009 STEERING GATE Diagram

#

Description
Price

1

STEERING GATE COMP.

8ES-23870-05-00

$926.54

2

RIVET, BLIND

90267-47195-00

$3.33

3

BRACKET

8FA-83614-00-00

$4.11

4

DAMPAR

8FA-23858-00-00

$2.69

5

CLAMP

90464-11007-00

$3.54

6

CLAMP

90464-20010-00

$2.17

7

STOPPER 1

8ES-2381C-00-00

$14.86

8

RIVET, BLIND

90267-47195-00

$3.33

9

LABEL, CAUTION

8FA-2389C-E0-00

$2.45

10

BOLT, WASHER BASED(JN9)

90105-081A7-00

$6.46

11

WASHER (853)

90201-08326-00

$6.17

12

BOLT, FLANGE(6TA)

95817-08030-00

$6.17

13

LATCH

8FA-2389E-00-00

$10.46

14

NUT, SELF-LOCKING

95602-08200-00

$2.77

15

CLAMP

90462-10022-00

$5.58

16

PAD, STEERING

8FA-23815-00-00

$156.58

17

PLATE

8ES-14146-00-00

$114.83

18

SCREW, ROUND HEAD (24R)

90150-06015-00

$3.45
